Together with the bandwidth extension an additional IF output connector is provided

("IF WIDE OUTPUT"). As opposed to the default IF/VIDEO/DEMOD OUTPUT connec-

tor, the IF output frequency of the optional connector cannot be defined manually, but

is determined automatically depending on the center frequency. For details on the used

frequencies, see the data sheet. The IF WIDE OUTPUT connector is used automati-

cally when the bandwidth extension is activated (i.e. for bandwidths > 80 MHz).

5.2.2.7 Digital I/Q 40G Streaming Output Connector (R&S FSW-B517)

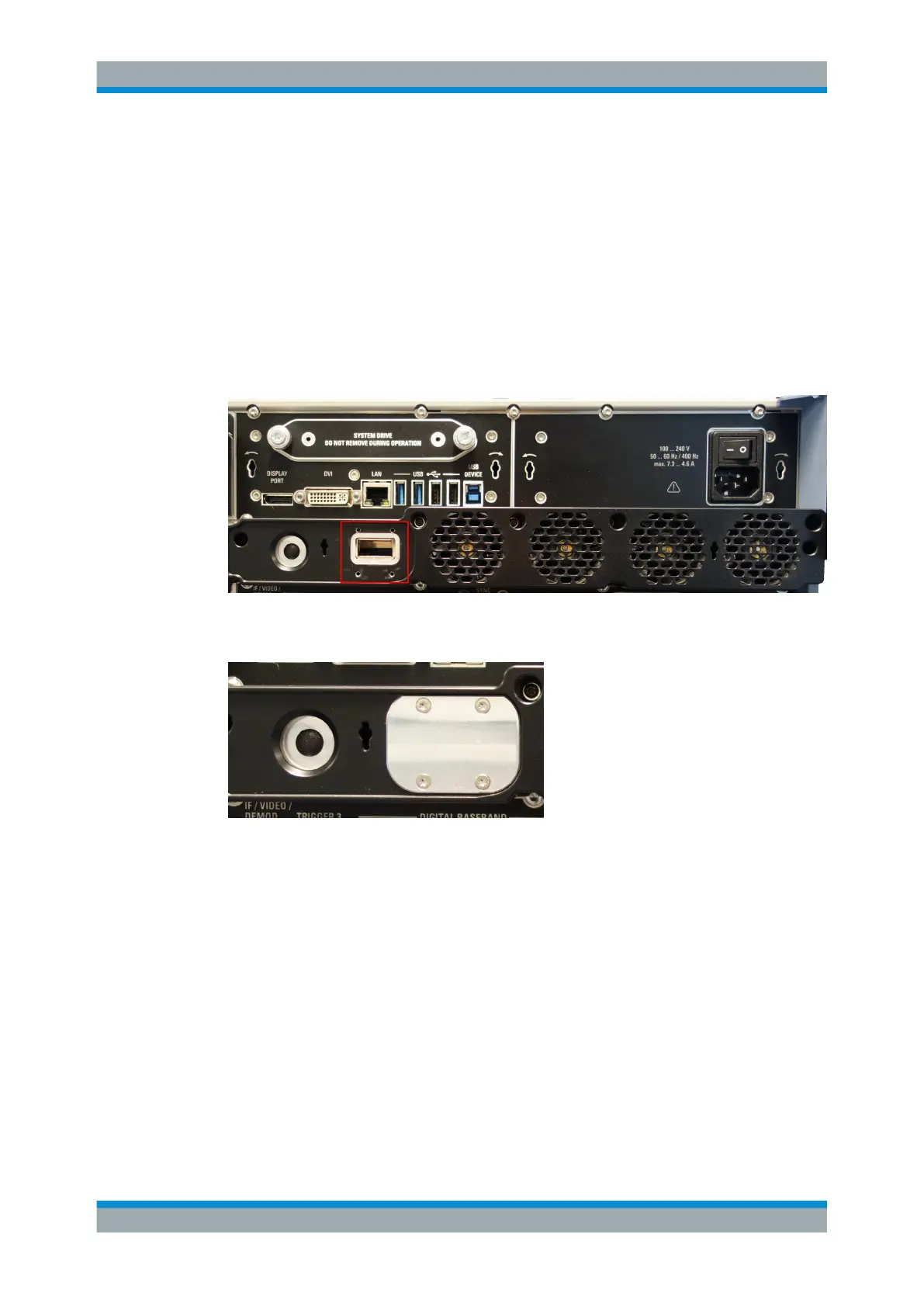

The Digital I/Q 40G Streaming Output (QSFP+) connector is provided by the hardware

of any bandwidth extension option for 512 MHz or more.

If necessary, remove the metal cover from the connector on the rear panel of the

R&S FSW.

The output connector provides I/Q data streams with a sample rate of up to 600 MHz, if

the R&S FSW-B517 option is installed and active.

Output is activated in the software ([INPUT/OUTPUT] key). Currently, it is only suppor-

ted by the I/Q Analyzer application.

See the R&S FSW I/Q Analyzer and I/Q Input User Manual for details.

5.2.2.8 IF OUT 2 GHz / 5 GHz Connector

The female SMA connector is only available for instrument models

R&S FSW26/43/50/67/85. It can be used to provide intermediate frequency (IF) output

of approximately 2 GHz at a frequency of 2 GHz.

Output is activated in the software ([INPUT/OUTPUT] key).
