R&S FSW Series User Manual

General Instrument Setup
R&S
®
FSW
698User Manual 1173.9411.02 ─ 43

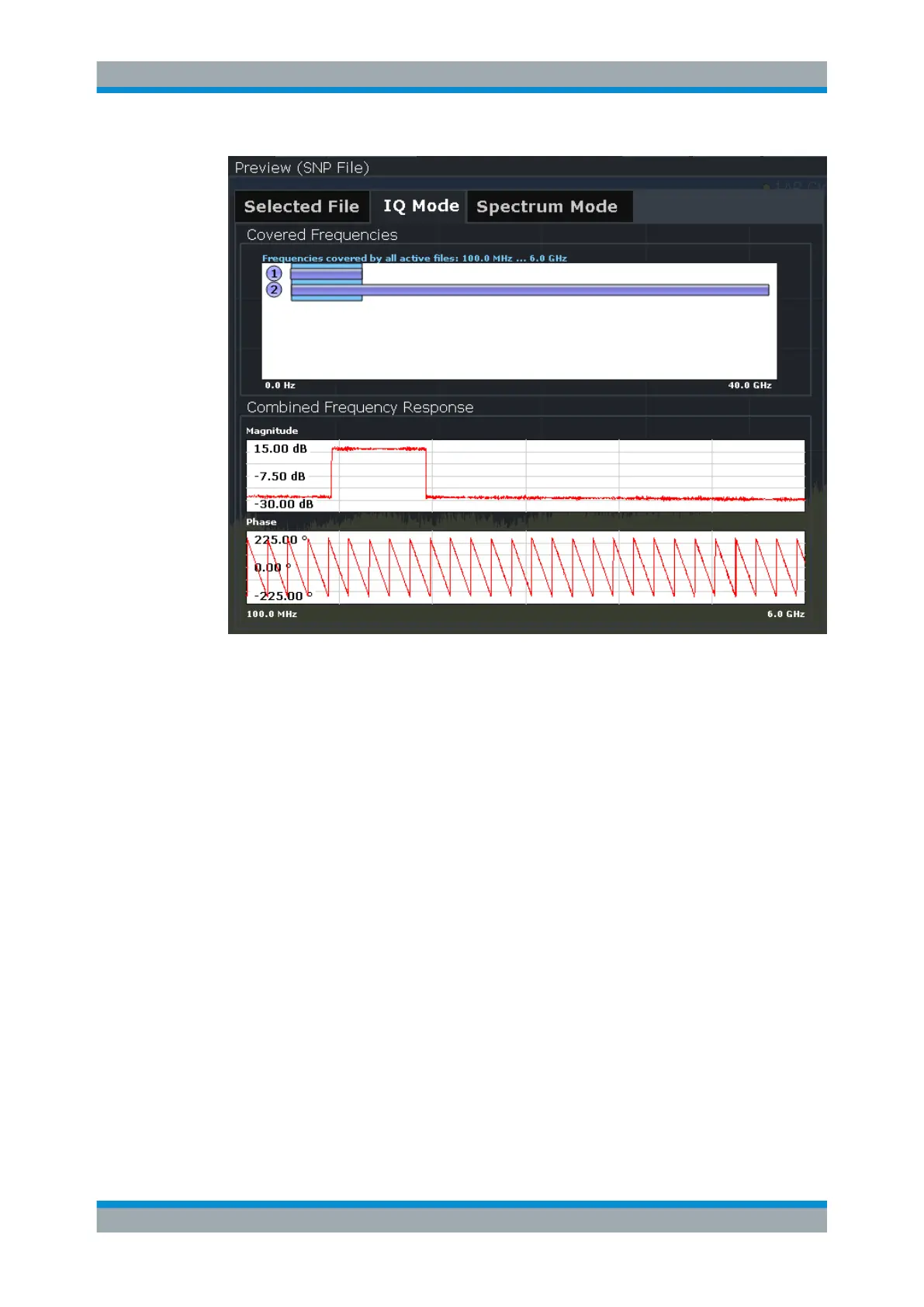

Figure 12-2: IQ Mode preview of user correction files
Remote command:
[SENSe:]CORRection:FRESponse<si>:USER:IQ:DATA:FREQuency?
on page 1278
[SENSe:]CORRection:FRESponse<si>:USER:IQ:DATA:MAGNitude?
on page 1278
[SENSe:]CORRection:FRESponse<si>:USER:IQ:DATA:PHASe? on page 1278
Spectrum Mode ← Preview
The preview in Spectrum Mode indicates the frequency ranges covered by the individ-
ual correction files. The blue bar indicates the valid frequency range for which at least
one file contains values.
An LED-like symbol indicates whether each file is active and user correction in general
is switched on (symbol "lights up") or not (symbol is dark). A purple symbol represents
a Touchstone file. A green symbol represents a frequency response (.fres) file.
The lower part shows the combined correction values for the valid frequency range.
Frequency Response Correction (R&S
FSW-K544)
