Reference Frequency Input.........................................................................................700
└ Behavior in case of missing external reference............................................ 701
└ Tuning Range............................................................................................... 702
└ Frequency.....................................................................................................702
└ Loop Bandwidth............................................................................................ 702
Reference Frequency Output......................................................................................702
Resetting the Default Values.......................................................................................702
Reference Frequency Input
The R&S FSW can use the internal reference source or an external reference source
as the frequency standard for all internal oscillators. A 10 MHz crystal oscillator is used
as the internal reference source. In the external reference setting, all internal oscillators
of the R&S FSW are synchronized to the external reference frequency.
External references are connected to one of the REF INPUT or the SYNC TRIGGER
connectors on the rear panel. For details see the "Getting Started" manual.
Note: The optional, and more precise OCXO signal can replace the internal reference
source.

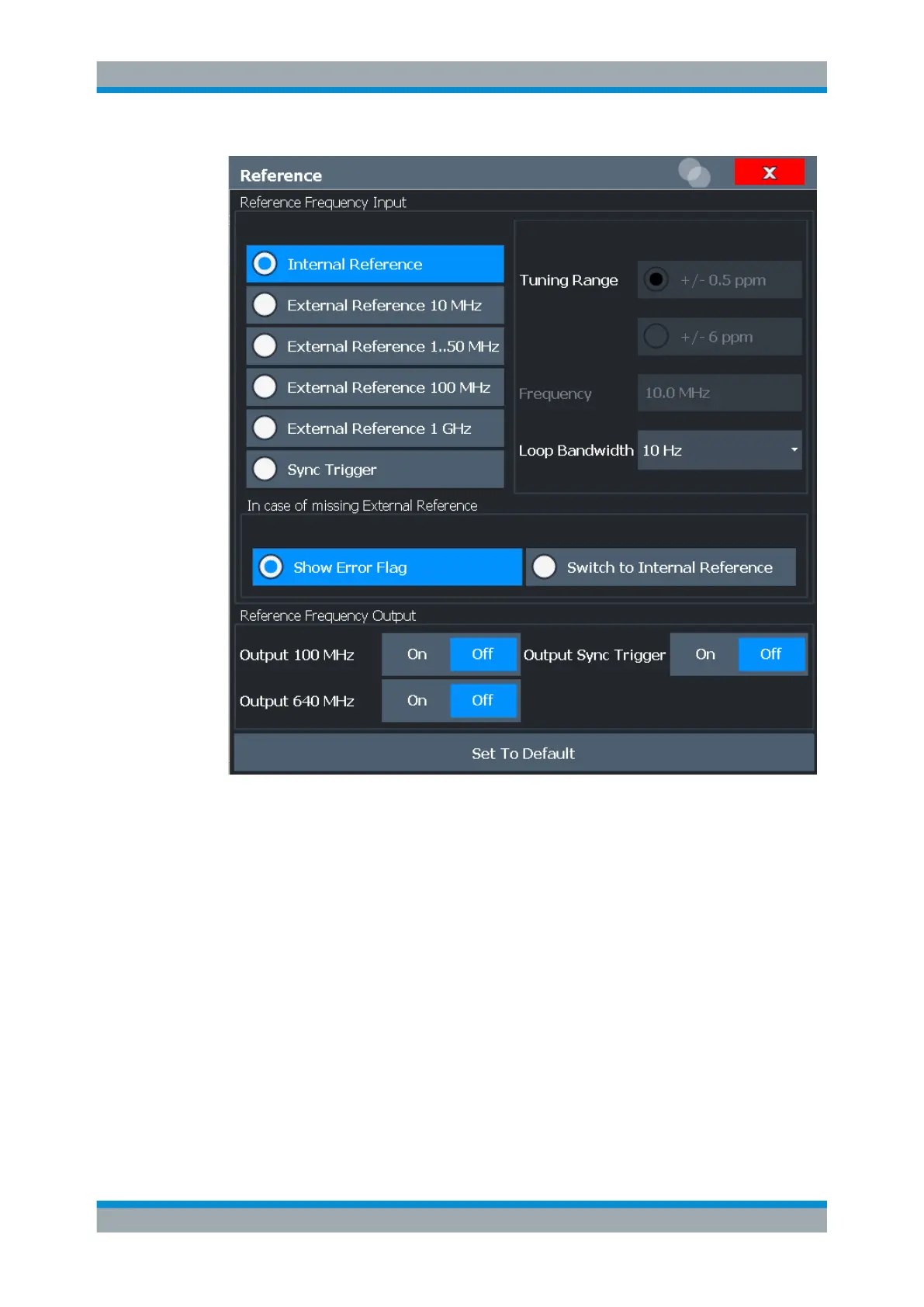

Reference Frequency Settings
