Network and Remote Operation
R&S
®
FSW
774User Manual 1173.9411.02 ─ 43
Show SCPI result query commands
This menu item is displayed if you selected a result display.
All possible commands to query the results in the diagram are displayed. Select the
query command you are interested in to display the SCPI command dialog box, as
described in "Show SCPI command" on page 774.

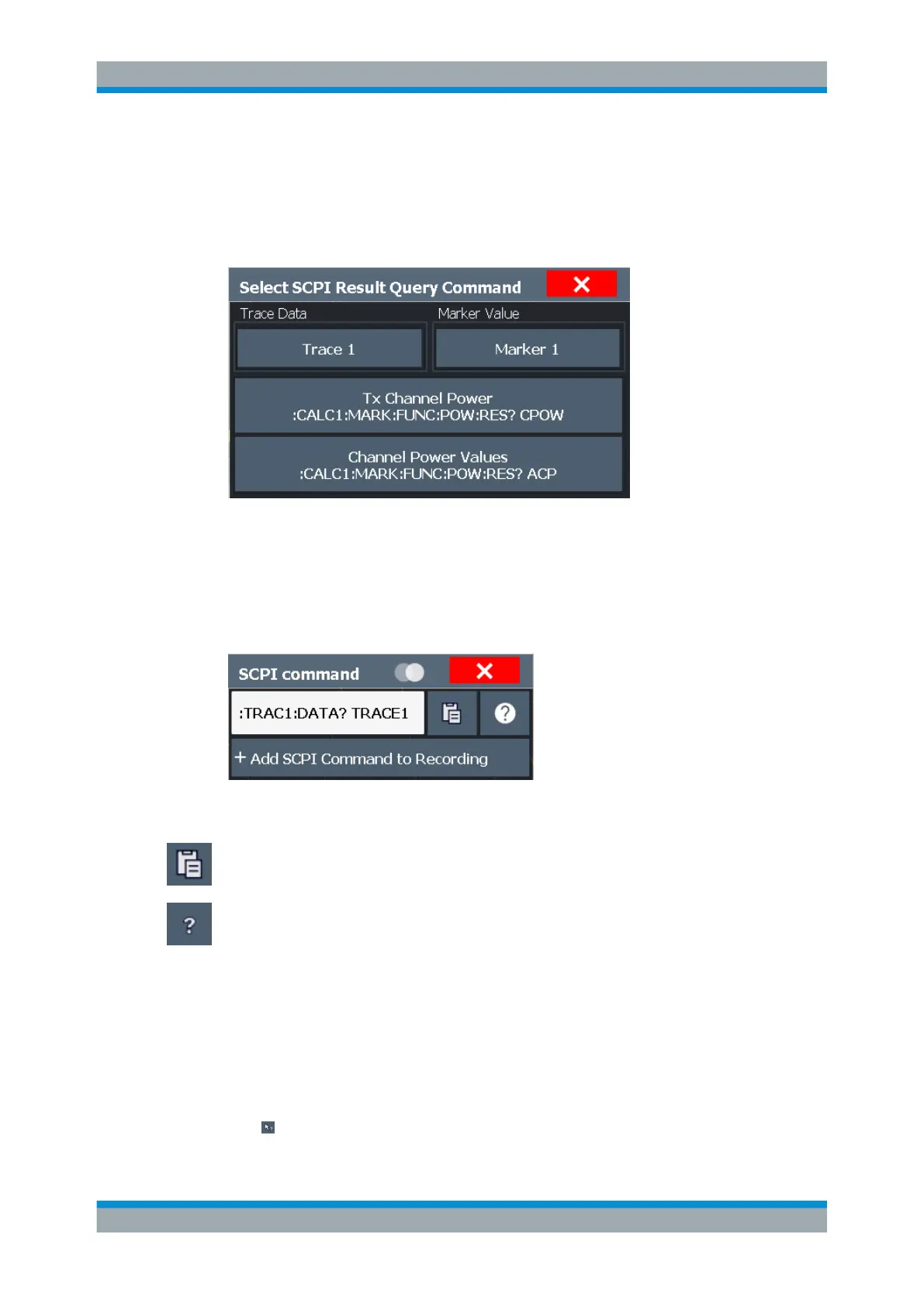

Figure 13-5: Possible result query commands for an ACLR measurement
Show SCPI command
This menu item is displayed if you selected a setting or function.
A dialog box displays the SCPI command required to perform the setting or function, or
to query the trace or marker results.
Figure 13-6: SCPI command dialog for a trace in a result display
Copy SCPI Command to Clipboard ← Show SCPI command
Copies the command and the current value for the selected setting to the clipboard.
Help ← Show SCPI command
Provides help on the displayed SCPI command, its syntax and possible parameter val-
ues.
Add SCPI Command to Recording ← Show SCPI command
Adds the command and the current value for the selected setting to the recorded SCPI
list.
Help
Provides help on the selected setting, function, or result display, as opposed to the
SCPI command itself. This function is identical to selecting the context-sensitive help
icon in the toolbar and then the interface element.
Automating Tasks with Remote Command Scripts
