R&S FSW Series User Manual

Getting Started
R&S
®
FSW
78User Manual 1173.9411.02 ─ 43

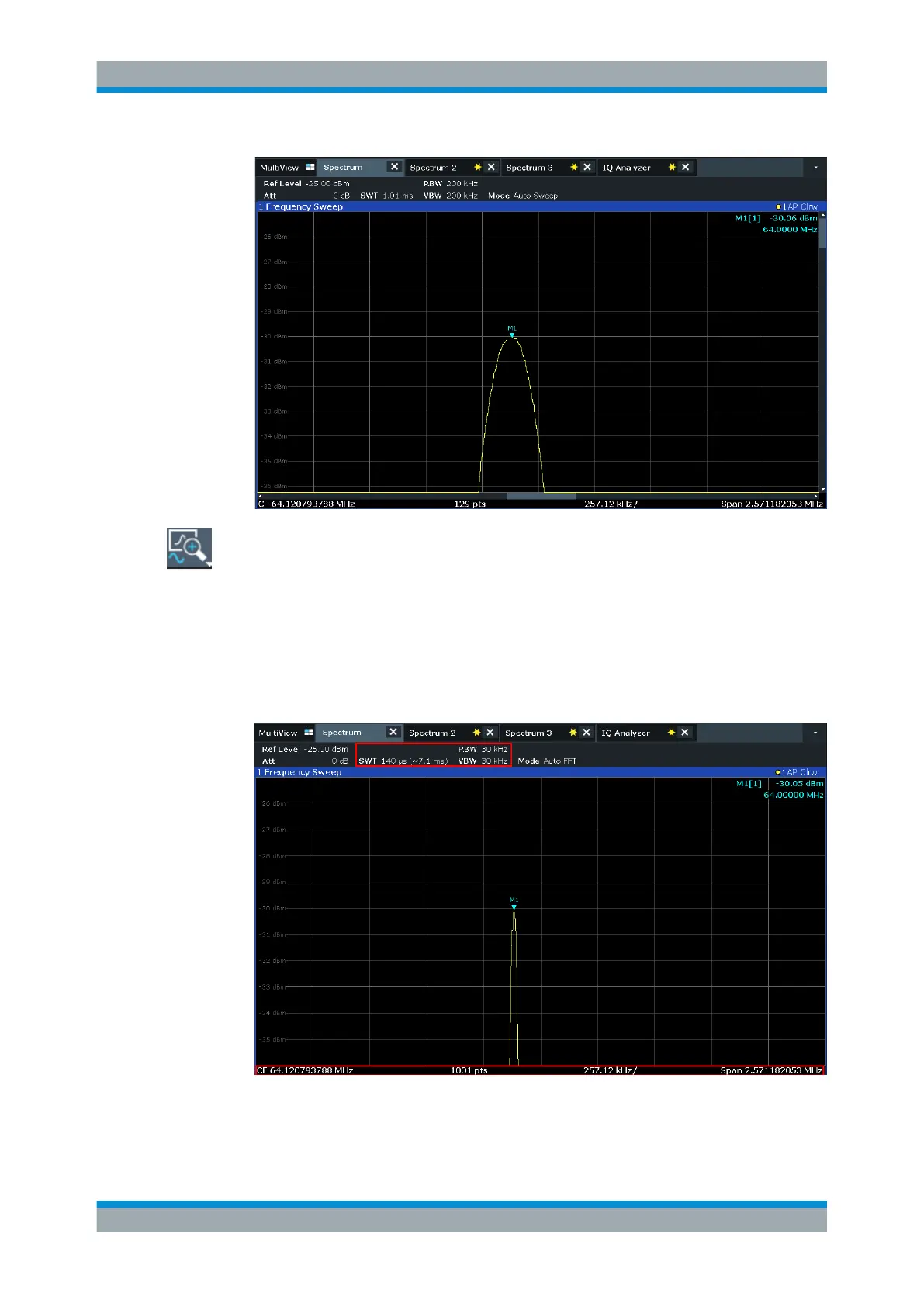

6. Tap the "Measurement Zoom" icon on the toolbar for a second or so.
A context menu with further options is displayed.
7. Select "Adapt Hardware to Zoom (selected diagram)".
The span of the measurement is changed, and due to the automatic coupling of the
span to the sweep time, RBW and VBW, those values are also changed. The num-
ber of sweep points is restored to the default 1001. The range of the trace is the
same as in the graphical zoom. However, due to the smaller RBW filter, the peak is
narrower.
Trying Out the Instrument
