Getting Started
R&S
®
FSW
86User Manual 1173.9411.02 ─ 43

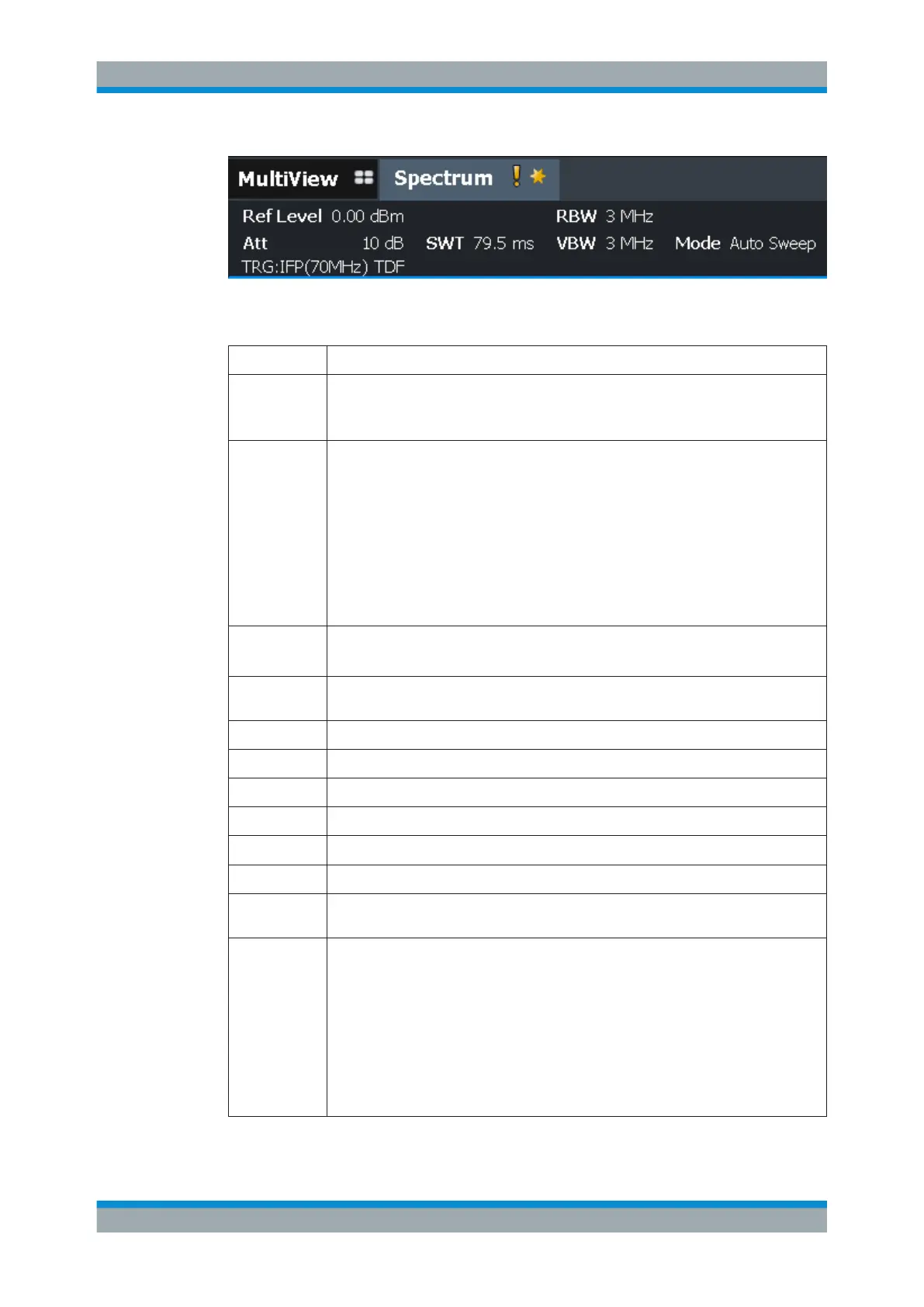

The following types of information are displayed, if applicable.
Table 5-5: Common settings displayed in the channel bar
"SGL" The sweep is set to single sweep mode.
"Sweep
Count"
The current signal count for measurement tasks that involve a specific number of subse-
quent sweeps
(see "Sweep Count" setting in "Sweep settings" in the User Manual)
"TRG" Trigger source
(for details see "Trigger settings" in the User Manual)
BBP: Baseband power (with Digital Baseband Interface R&S FSW-B17 only)
EXT: External
GP_0: General purpose bit (with Digital Baseband Interface R&S FSW-B17 only)
IFP: IF power (+trigger bandwidth)
PSE: Power sensor
RFP: RF power
SQL: Squelch
TIM: Time
VID: Video
"6dB"/"RRC"/"
CHN"
Filter type for sweep bandwidth
See "Filter Type" on page 347
"PA"/Ext "PA" The preamplifier is activated. / Data compensation is performed using data from the
(optional) external preamplifier.
"YIG Bypass" The YIG filter is deactivated.
"GAT" The frequency sweep is controlled via the TRIGGER INPUT connector.
"TDF" The specified transducer factor is activated.
"75 Ω" The input impedance of the instrument is set to 75 Ω.
"FRQ" A frequency offset 0 Hz is set.
"DC/AC" DC or AC coupling is used for the input.
"ExtMix"
<band>
An external mixer is activated for input (requires option R&S FSW-B21); the used band is
also indicated
<"NOR" |
"APR">
"Ext. Gen"
The R&S FSW is controlling an external generator (requires option R&S FSW-B10).
NOR: the measurements are normalized with the results of the external generator cali-
bration
APR (approximation): the measurements are normalized with the results of the external
generator calibration; however, the measurement settings have been changed since cali-
bration
If neither label is displayed, no calibration has been performed yet or normalization is not
active.
For details, see Chapter 8.2.4, "Optional External Generator Control", on page 381.
