"LVL" A level offset is applied to the external generator signal (only if external generator control
is active).
"Inp: Input 2" For R&S FSW85 models with two RF input connectors only: the second input connector
"RF2" is the current input source for the channel
Changing the Channel Name
The measurement channels are labeled with their default name. If that name already
exists, a sequential number is added. You can change the name of the measurement
channel by double-tapping the name in the channel bar and entering a new name.
For an overview of default names, see INSTrument:LIST? on page 825.
Note: Channel name restrictions. Channel names can have a maximum of 31 charac-
ters, and must be compatible with the Windows conventions for file names. In particu-
lar, they must not contain special characters such as ":", "*", "?".
Remote command:
INSTrument:REName on page 827
5.4.1.2 Window Title Bar
Each channel in the R&S FSW display can contain several windows. Each window can
display either a graph or a table as a result of the channel measurement. Which type of
result evaluation is displayed in which window is defined in the display configuration
(see Chapter 5.4.6, "Displaying Results", on page 103). The window title bar indicates
which type of evaluation is displayed.
Double-tap the window title bar to enlarge the window temporarily. Double-tap it again
to restore the original size.
See also Chapter 5.4.6.4, "Switching Between a Split and Maximized Window Display",
on page 109.

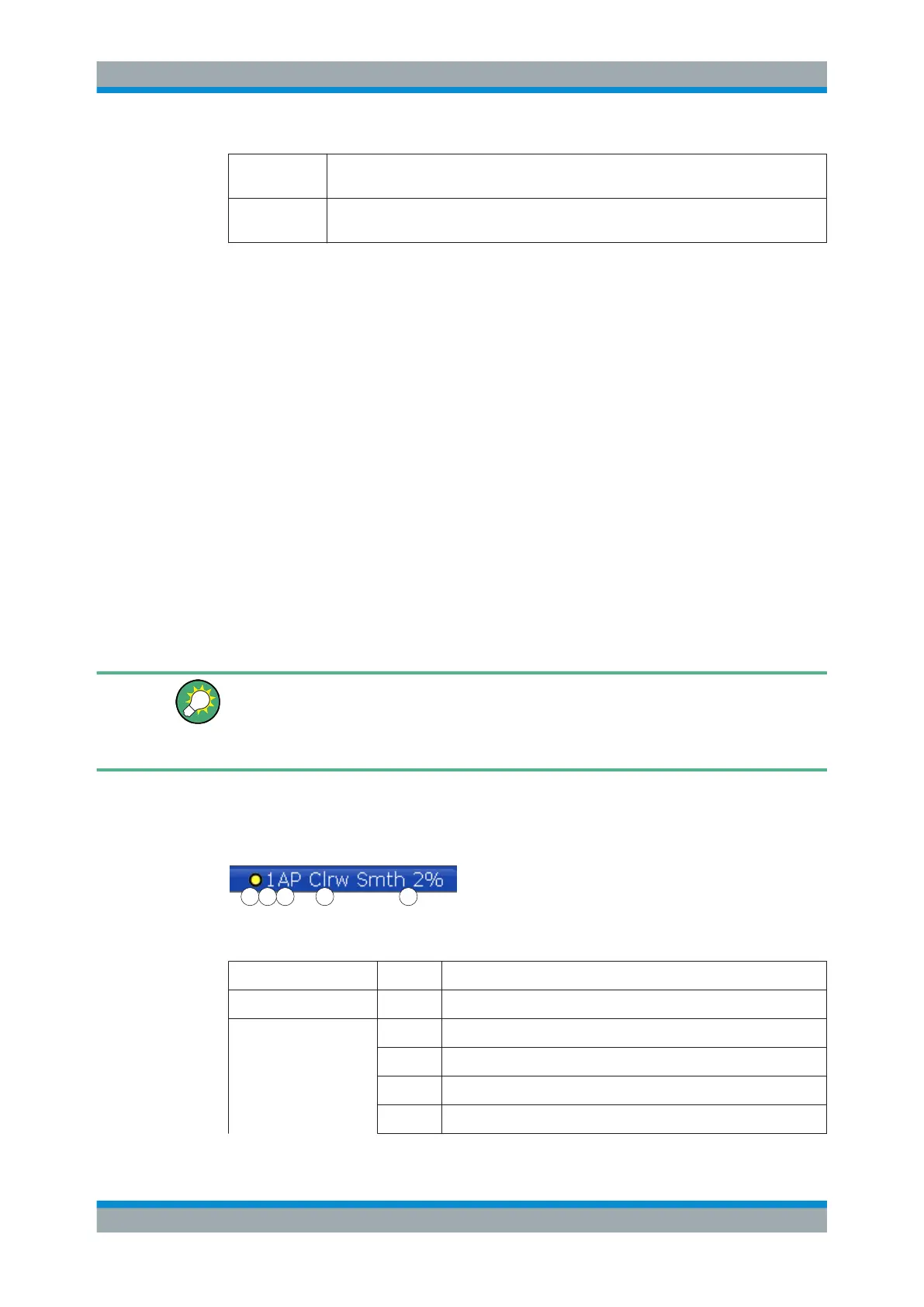

Trace Information in Window Title Bar
Information on the displayed traces is indicated in the window title bar.
2
1 3 4 5
(1) Trace color
Color of trace display in diagram
(2) Trace no.
Trace number (1 to 6)
(3) Detector
Selected detector:
AP AUTOPEAK detector
Pk MAX PEAK detector
Mi MIN PEAK detector
