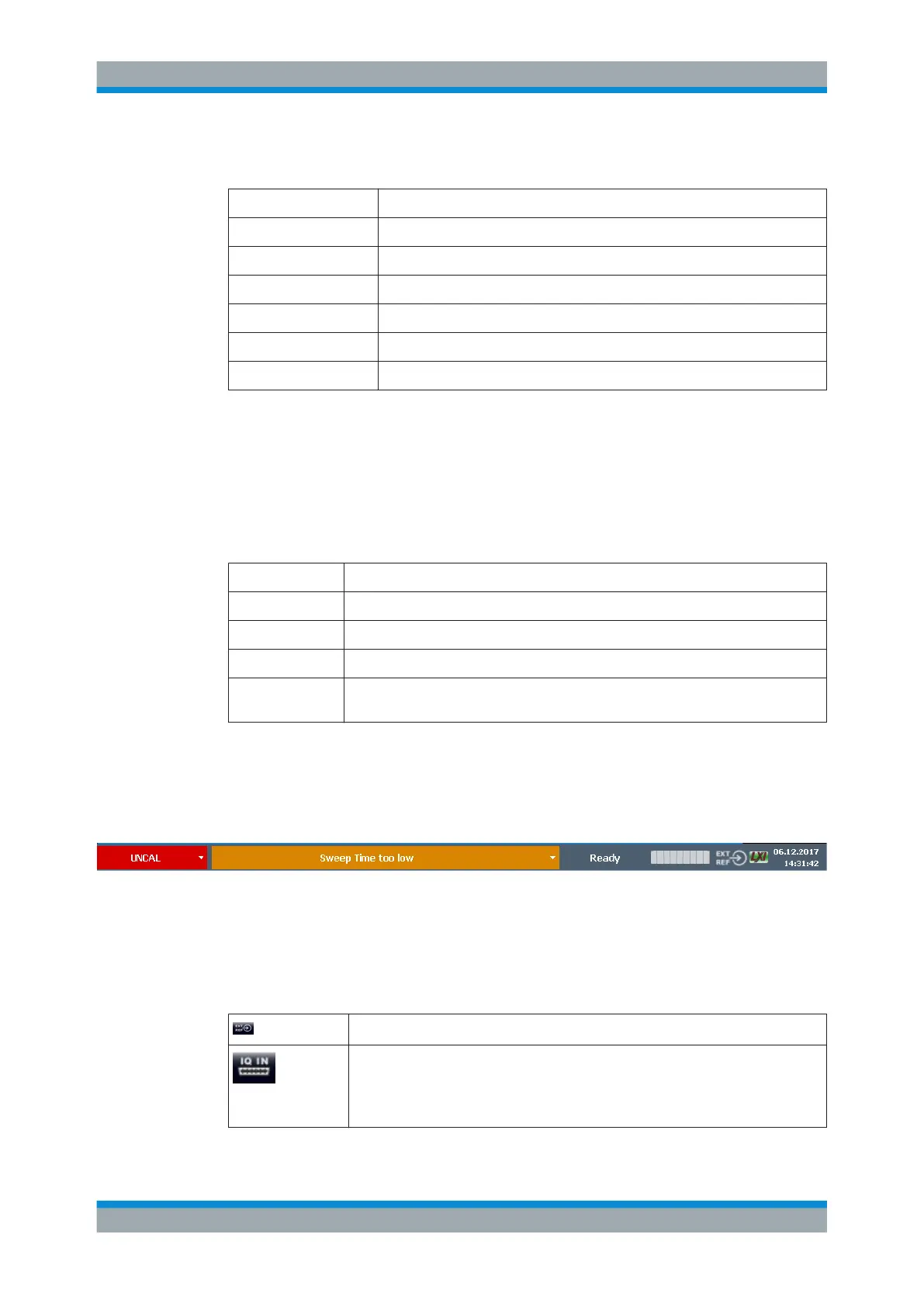

Getting Started
R&S
®
FSW
89User Manual 1173.9411.02 ─ 43
The functions are indicated with the following abbreviations:
FXD Fixed reference marker
PHNoise Phase noise measurement
CNT Signal count
TRK Signal tracking
NOIse Noise measurement
MDepth AM modulation depth
TOI Third order intercept measurement
5.4.1.4 Frequency and Span Information in Diagram Footer
The information in the diagram footer (beneath the diagram) depends on the current
application, measurement, and result display.
For a default measurement in the Spectrum mode, the Diagram result display contains
the following information, for example:
Label Information
CF Center frequency
Span Frequency span (frequency domain display)
ms/ Time per division (time domain display)
Pts Number of sweep points or (rounded) number of currently displayed points in zoom
mode
5.4.1.5 Instrument and Status Information
Global instrument settings and functions (such as LXI configuration mode), the instru-
ment status and any irregularities are indicated in the status bar beneath the diagram.
In the MultiView tab, the status bar always displays the information for the currently
selected measurement.
The following information is displayed:
Instrument status
The instrument is configured for operation with an external reference.
The optional Digital Baseband Interface (R&S FSW-B17) is being used for digital
input
For details on the Digital Baseband Interface (R&S FSW-B17), see the R&S FSW I/Q
Analyzer User Manual.
Operating the Instrument
