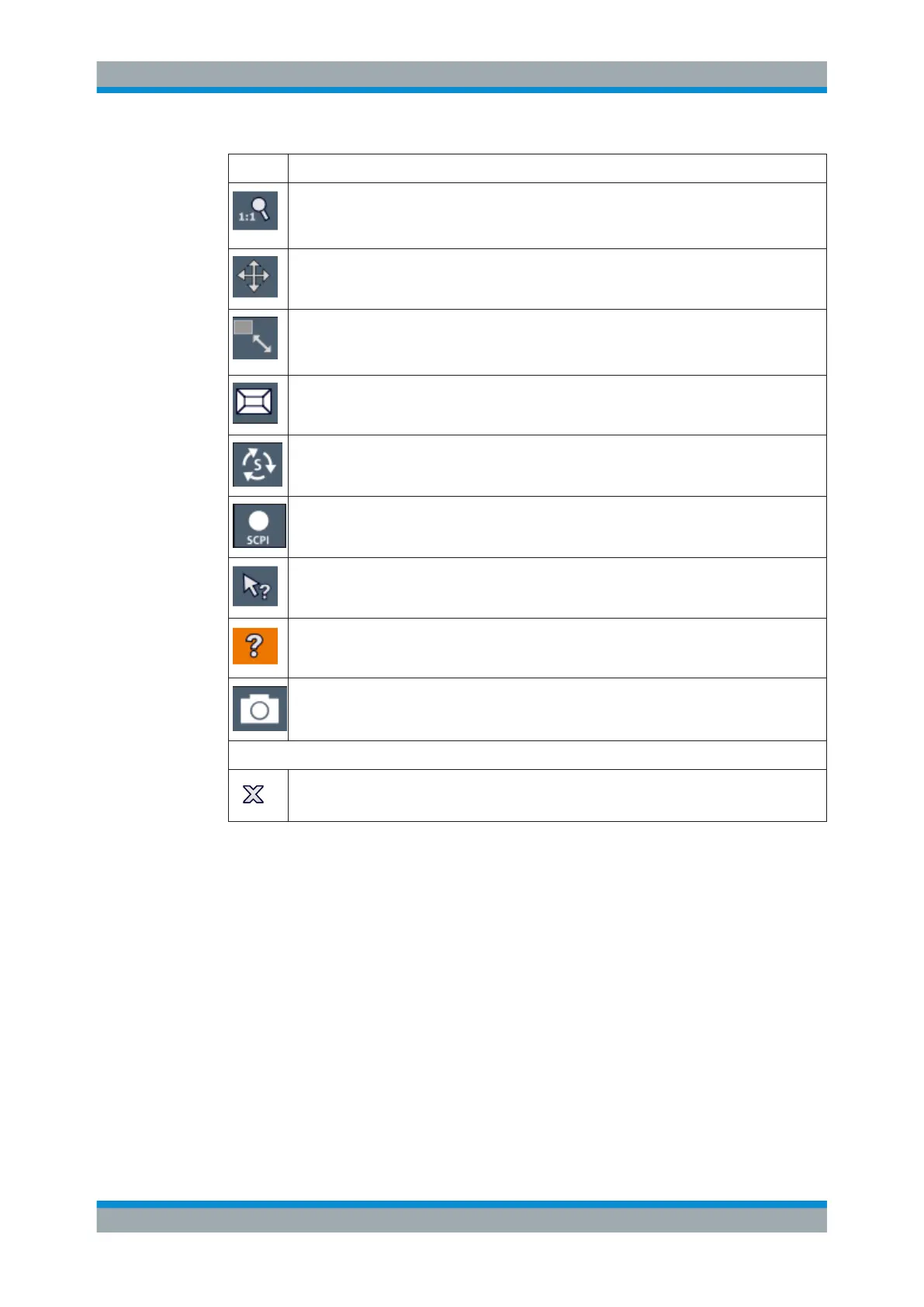

Icon Description
Zoom off: displays the diagram in its original size
This function only restores graphically zoomed displays. Measurement zooms, for which mea-
surement settings were adapted, remain untouched.
Data shift: Shifts the data to be evaluated in the result display and re-evaluates the new data.
Currently, this function is only available in the Transient Analysis application.
Data zoom: Decreases the amount of data to be evaluated in the result display and re-evaluates
the new data, thus enlarging the display of the remaining data.
Currently, this function is only available in the Transient Analysis application.
SmartGrid: activates "SmartGrid" mode to configure the screen layout
Sequencer: opens the "Sequencer" menu to perform consecutive measurements
SCPI Recorder: opens a dialog to record SCPI commands during operation
Help (+ Select): allows you to select an object for which context-specific help is displayed
Help: displays context-sensitive help topic for currently selected element
Print immediately: prints the current display (screenshot) as configured
In "SmartGrid" mode only:
Exit "SmartGrid" mode
5.4.2.2 Softkeys
Softkeys are virtual keys provided by the software. Thus, more functions can be provi-
ded than those that can be accessed directly via the function keys on the instrument.
Softkeys are dynamic, i.e. depending on the selected function key, a different list of
softkeys is displayed on the right side of the screen.
A list of softkeys for a certain function key is also called a menu. Softkeys can either
perform a specific function or open a dialog box.
The "More" softkey indicates that the menu contains more softkeys than can be dis-
played at once on the screen. When pressed, it displays the next set of softkeys.
