Operation

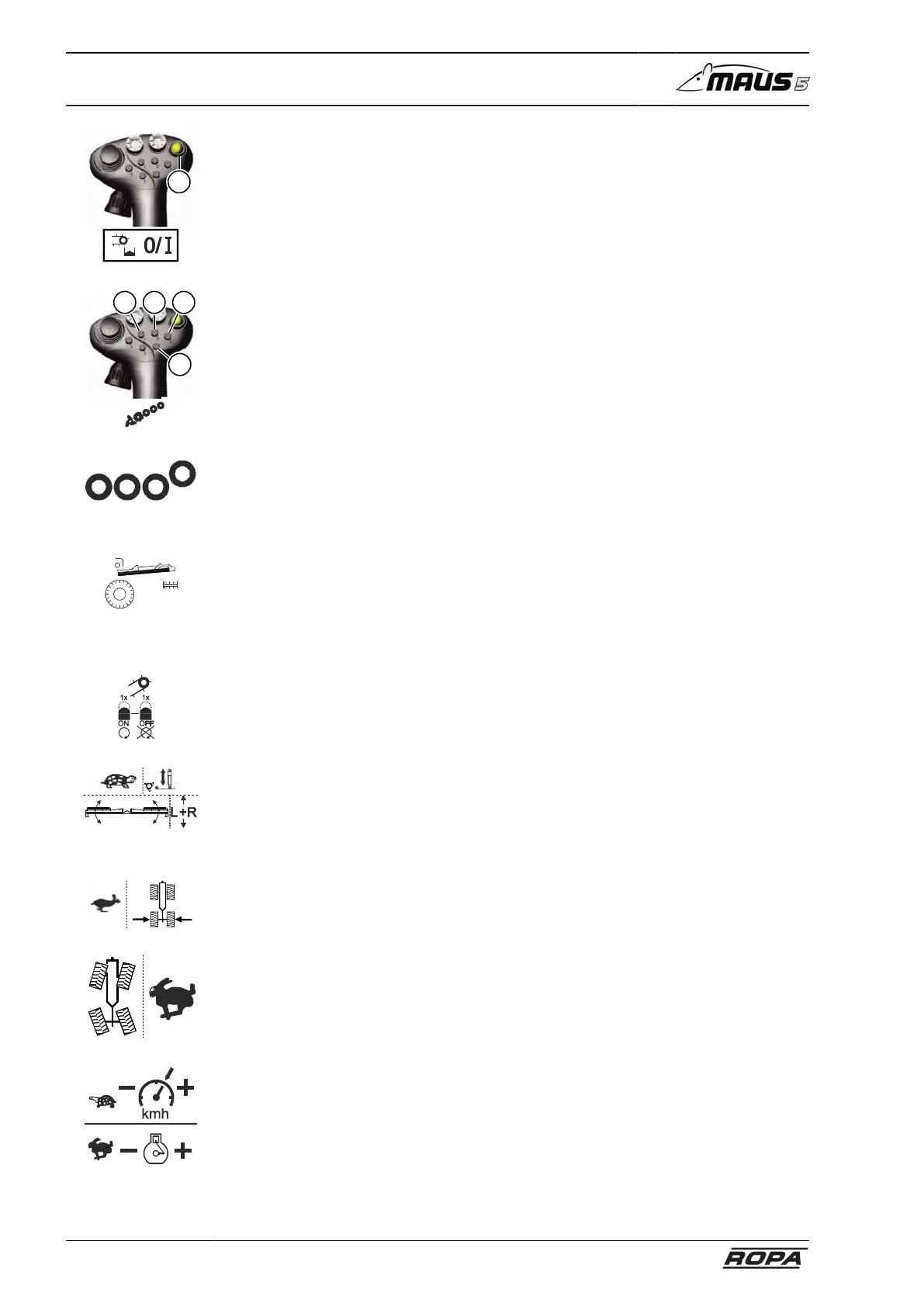

Right joystick with multi-functional handle
134 / 476
6
Key (6) machine drive
PRESS KEY SHORTLY Machine drive On/Off
PRESS AND HOLD KEY Reload
8 9
10
7
Key (7) drive pickup rollers and conveyor rollers
PRESS KEY SHORTLY On/off
PRESS AND HOLD KEY Reverse
Key (8) drive 4 pinch rollers
PRESS KEY SHORTLY On/off
PRESS AND HOLD KEY Reverse
Key (9) drive recleaning
PRESS KEY SHORTLY On/off
PRESS AND HOLD KEY Reverse (no reversing on sieve conveyor
version)
Key (10) drive infeed conveyor
PRESS KEY SHORTLY On/off
Multi-key (11) ONLY in operating mode "Turtle" AND in conjunction with X-Y switch
(4) or (5)
Adjust both supporting feet at the same time or
fold both pickup side sections at the same time
Multi-key (11) ONLY in the operating mode "Rabbit"
Put rear axle in central position
Keys (12) and (13) ONLY in the operating mode "Rabbit"
Briefly press both keys simultaneously and keep them pressed
Hand potentiometer (14) ONLY in the operating mode "Turtle"
Change forward driving speed when loading
Hand potentiometer (14) ONLY in the operating mode "Rabbit"
Engine speed adjustment with manual engine rotational speed control
