Operation
Folding the machine out/in
186 / 476

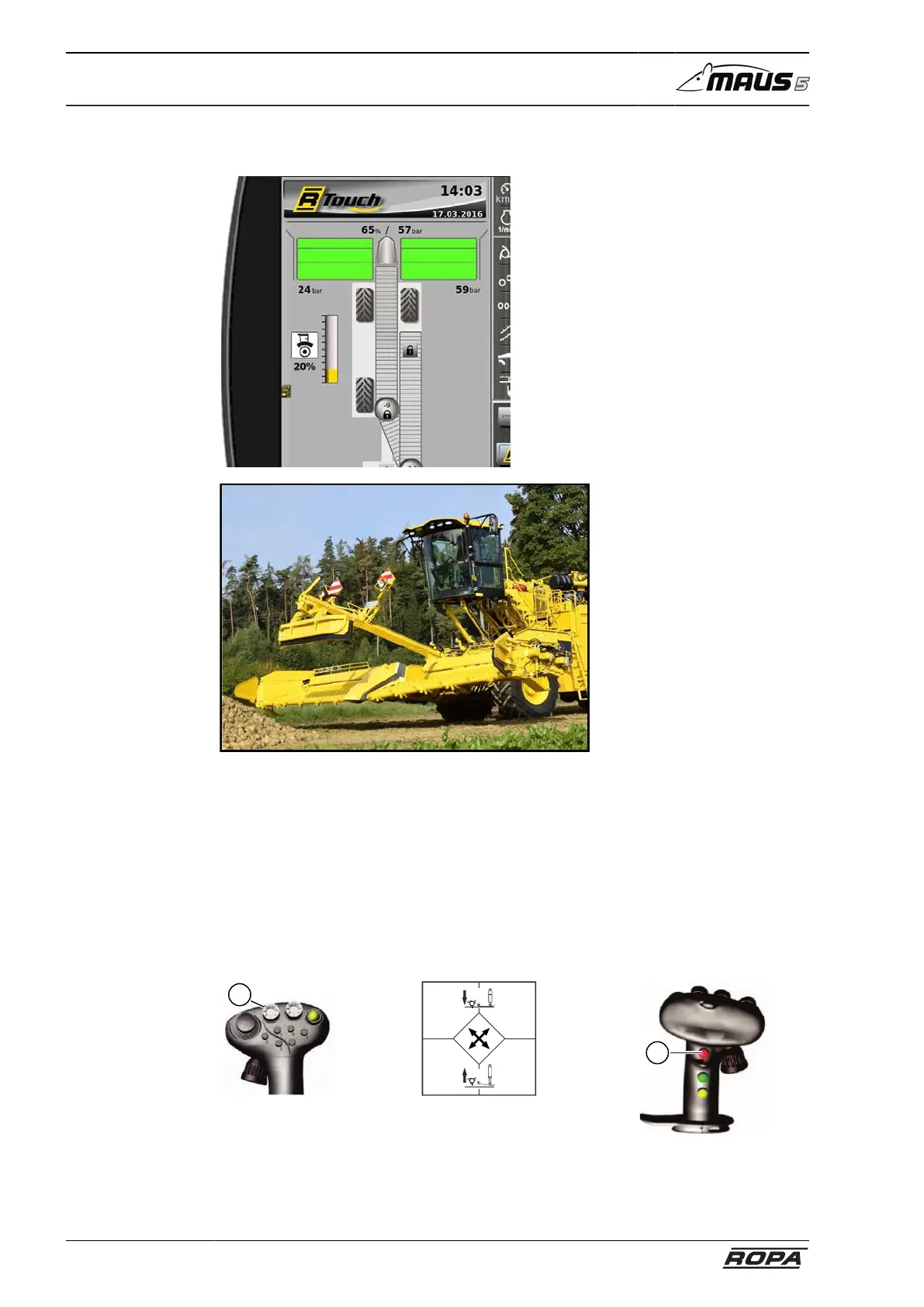

Swinging up the fold plates is only possible when the R-Touch displays that both
pickup side sections are folded out.
– Move pickup to operating depth
To do it, slide the X-Y key (4)
FORWARD LEFT Retract the left support foot to the estimated operating
height of the pickup
FORWARD RIGHT Retract the right support foot to the estimated operating
height of the pickup
To retract it faster, press the multi-key (11) and keep it pressed. If you now slide the
X-Y key (4) forward left or right, then both support feet are retracted simultaneously.
4
RL
L
R
11
