Operation
Folding the machine out/in
192 / 476
11

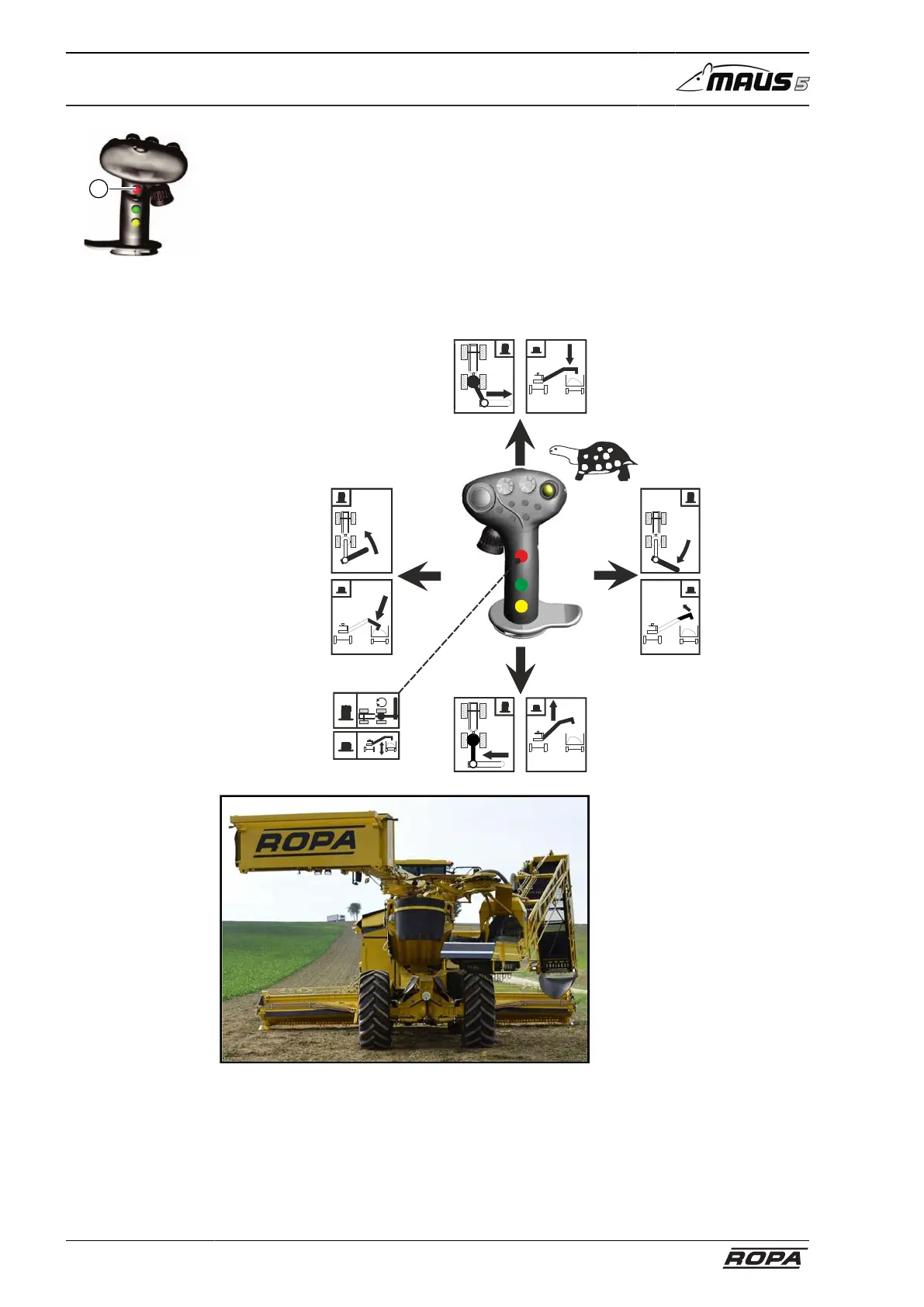

– Fold out truck conveyor.
For this purpose:
– Press and hold the multi-key (11) on the right joystick, simultaneously, lightly pull
backward the right joystick to slightly (about 5cm) lift the truck conveyor above the
transport support.
– Release the multi-key (11). Then, carefully push the right joystick a little to the right,
and by this, rotate the truck conveyor out of the vehicle perimeter.
– Press and hold the multi-key (11) on the right joystick, simultaneously, press the
right joystick to the right and thereby swing up the truck conveyor articulation so far,
until sufficient distance to the ground is reached.
12
11
4
5
6
9
8
10
7
3
2
1
13
