Operation
Folding the machine out/in
191 / 476
1
2
3
4
5
6
1
2
3
4
5
6

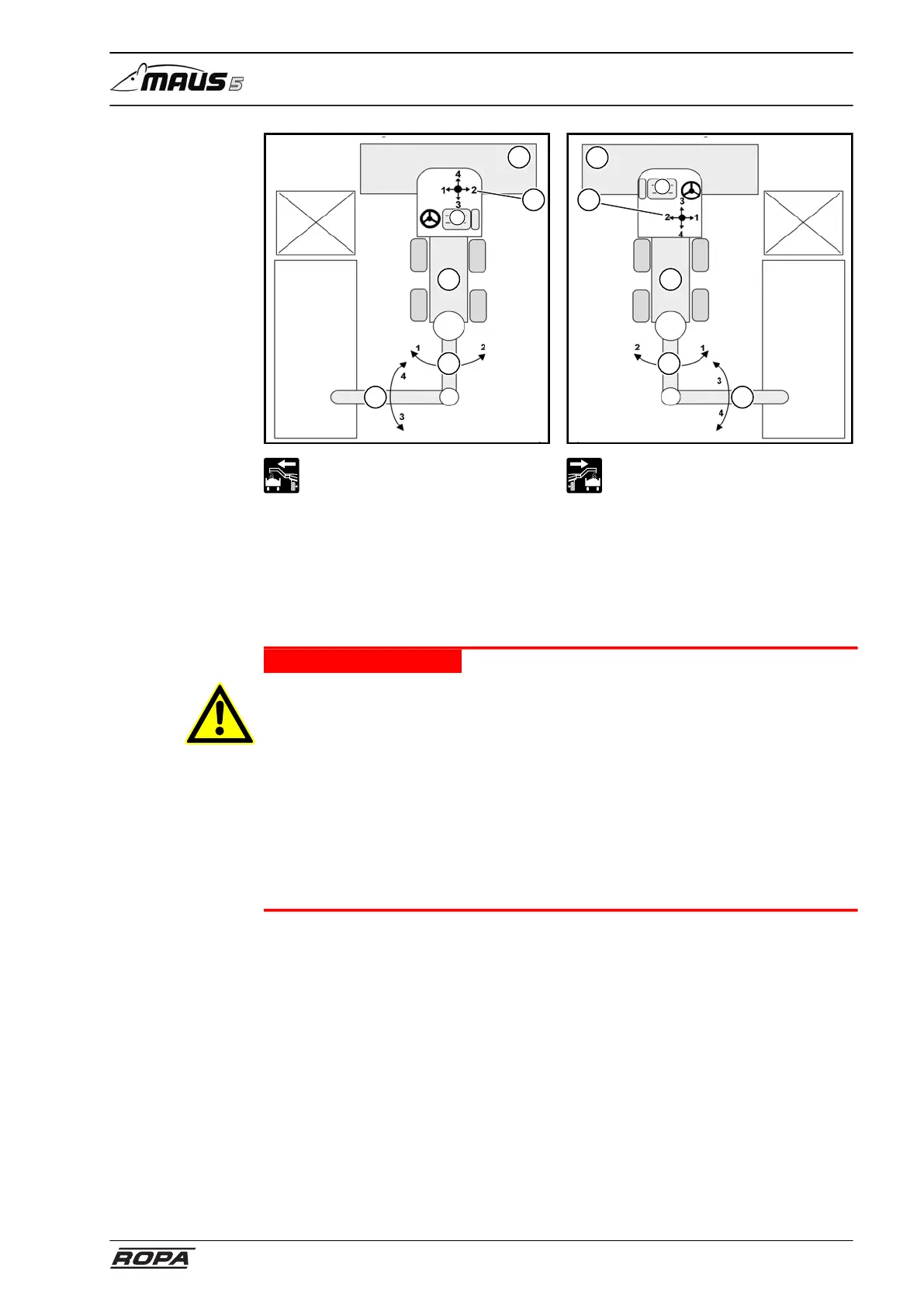

Loading direction left Loading direction right
(1) Pickup
(2) Joystick
(3) Driver’s seat
(4) Infeed conveyor
(5) Swivel arm
(6) Truck conveyor
DANGER
If a person is swept into the machinery during swiveling of the truck conveyor and
trapped, then this person may sustain fatal injuries!
– Staying under the truck conveyor when it is swung out is strictly prohibited.
– The machine operator must make sure that no people are located within the swivel-
ing range of the truck conveyor.
Hazard due to electrical current.
– In any case, pay attention to power lines located within the swiveling range of the
truck conveyor. Always keep a sufficient safety distance to these lines. This dis-
tance is always determined by the type of power line and this information must be
acquired from the competent power company.
