Operation
Folding the machine out/in
203 / 476
– Move the counterweight arm lock to the end-stop. To do so, select the " Counter-
weight arm lock" function on the R-Select, press and hold the - key until the lock
status display on the R-Touch displays the end-stop position (18b). When the dri-
ver's cabin is raised, one can also view the mechanism from the driver's seat.

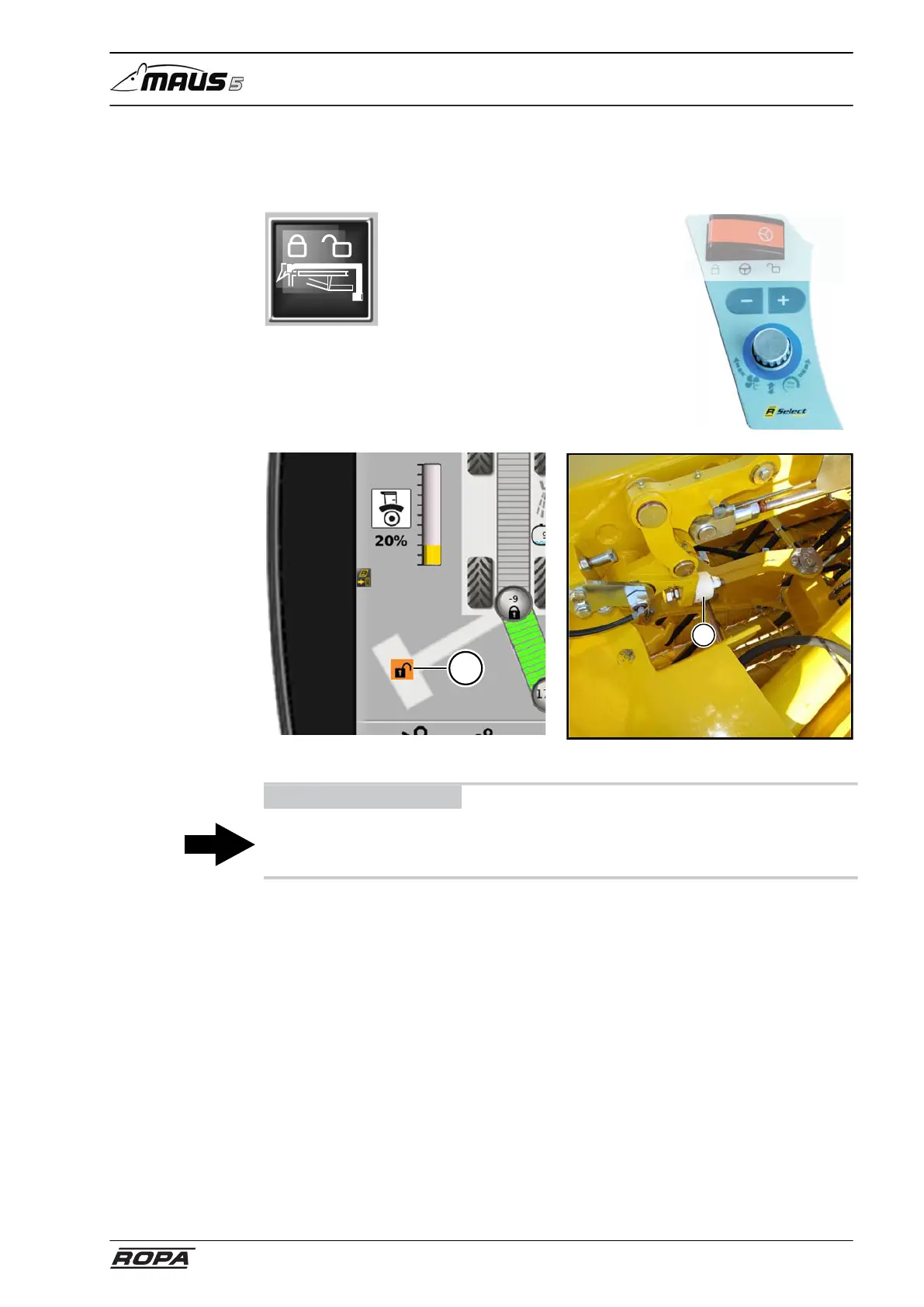

Counterweight arm lock
Choose this function with R-Select.
+ key = unlock counterweight arm
- key = lock counterweight arm
18b
Counterweight arm lock at the end-stop
18b
ADVICE
Moving the lock into the end-stop is only possible if the counterweight arm is located
left of the swivel arm.
