Operating Components
Driver’s seat
67 / 476

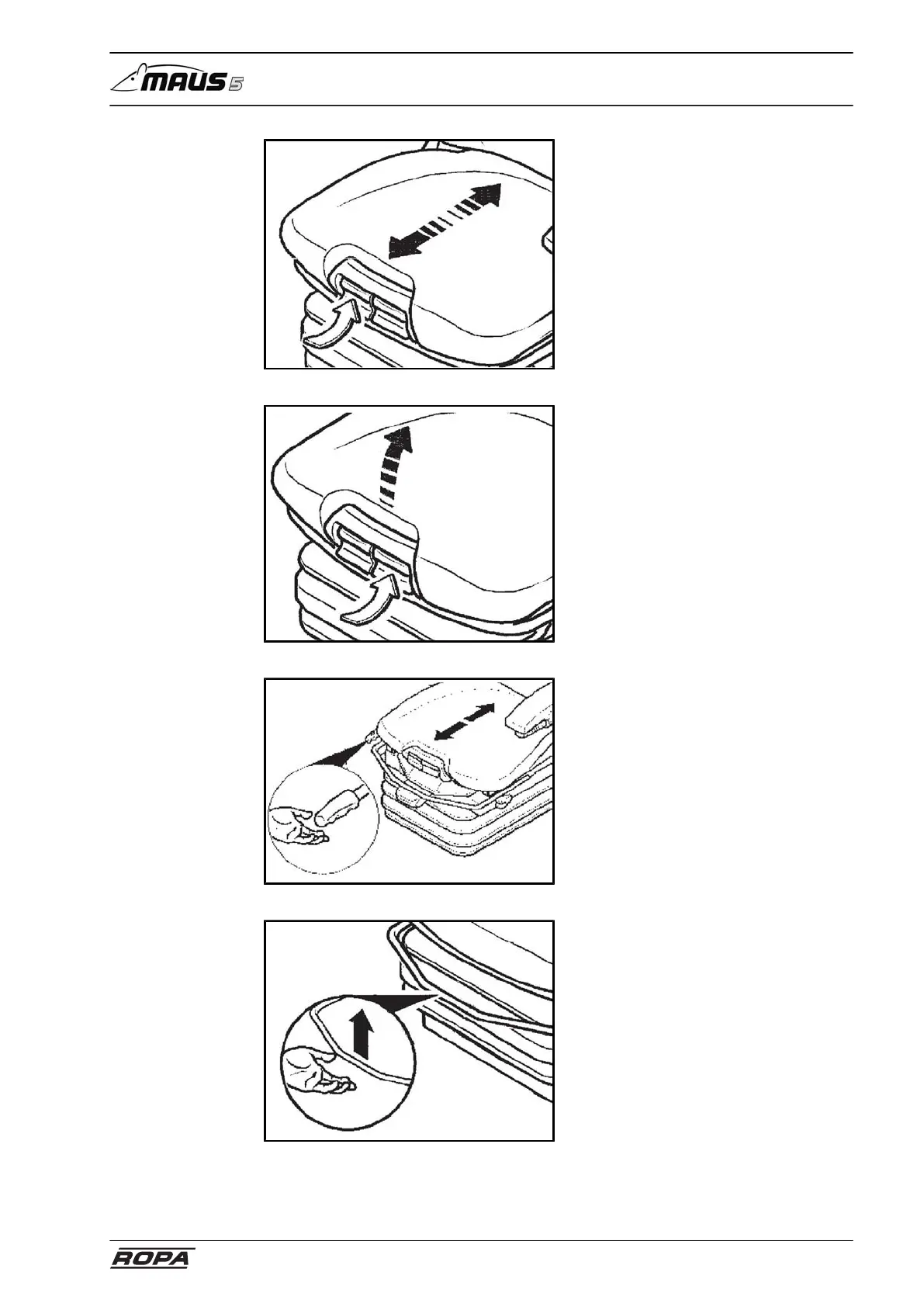

Seat depth adjustment
The depth of the seat pan can be indi-
vidually adjusted. To adjust the depth of
the seat cushion, lift the right handle (see
arrow). By moving the seat cushion back-
wards or forwards the desired seating
position can be reached.
Seat pan angle adjustment
The angle of the seat pan can be individu-
ally adjusted.
To adjust the angle of the seat pan, lift
the left handle (see arrow). By exerting
pressure on or off the seat pan it can be
moved to the desired angle position.
Longitudinal adjustment without oper-
ating console
Lateral adjustment of the seat is released
by pressing the locking lever upward.
The locking lever must latch into the
desired position. It should not be possi-
ble to move the driver’s seat into another
position when it is locked.
Longitudinal adjustment with operat-
ing console
Moving the locking lever upward releases
lateral adjustment.
The locking lever must latch into the
desired position. It should not be possi-
ble to move the driver’s seat into another
position when it is locked.
