Section 04 ENGINE (2-STROKE)

Subsection 05 (BOTTOM END)

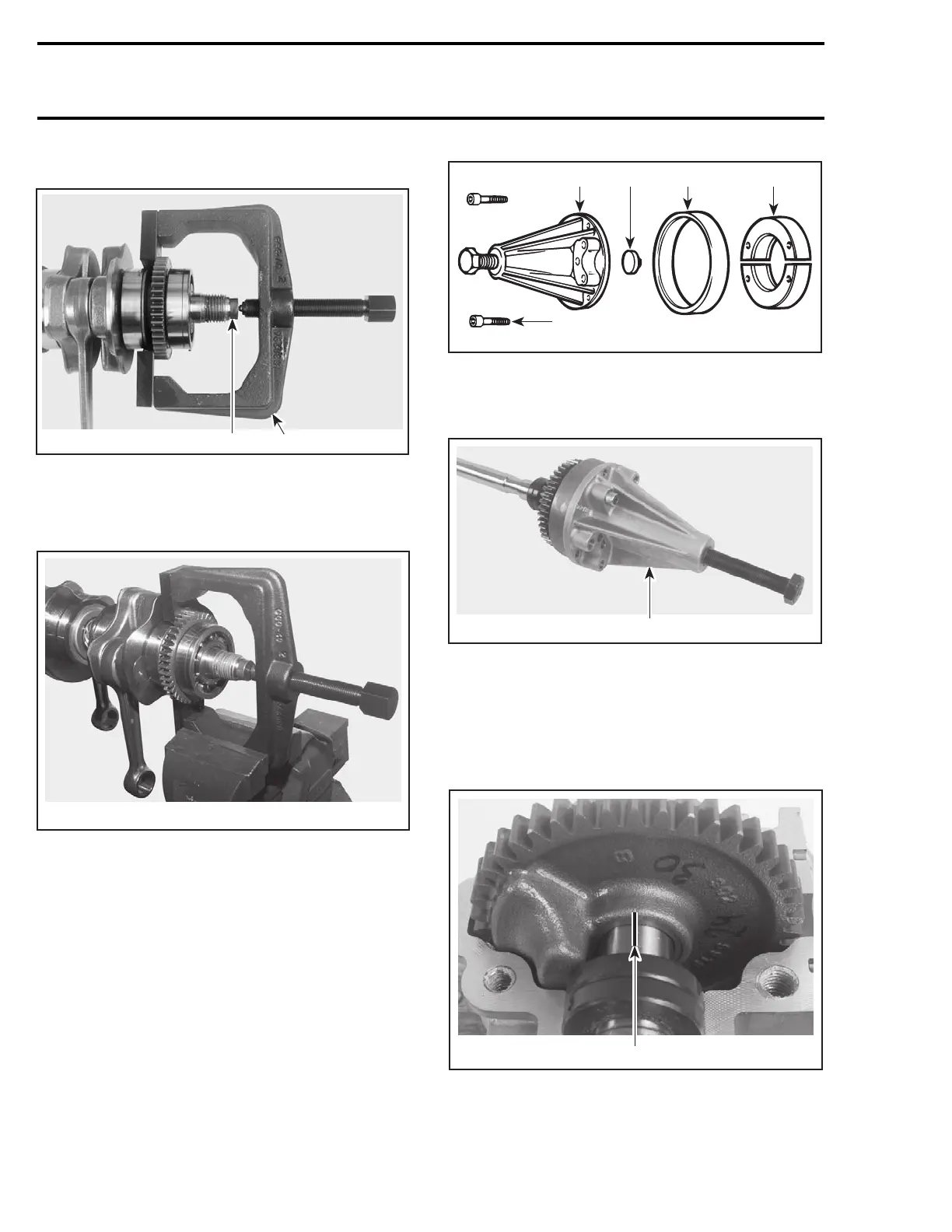

Install the puller as per following illustration.

F00D0IA

1. Puller

2. Protective cap

Secure puller in a vise and remove gear and bear-

ing.

F00D0JA

NOTE: If the inner PTO bearing needs to be re-

placed, remove the Woodruff key on the crank-

shaft.

Counterbalance Shaft

787 RFI Engines

Bearings no. 15 on counterbalance shaft no. 13

can be removed by using the following tools:

F00B0CA

1 2

1. Puller (P/N 420 877 635)

2. Protective cap (P/N 420 876 557)

3. Ring (P/N 420 977 480)

4. Ring halves (P/N 420 876 330)

5. Screw M8 x 40 (P/N 420 840 681)

F00D0KA

1. Tool installed

To remove gear no. 14, first trace an index mark

on the gear and counterbalance shaft.

NOTE: There is no Woodruff key to position the

gear on the counterbalance shaft. An index mark

must be traced to ease assembly procedure.

F00D0SA

1. Index mark

Use a press to remove the gear no. 14 from the

counterbalance shaft.

138 smr2004-Complete Line Up
