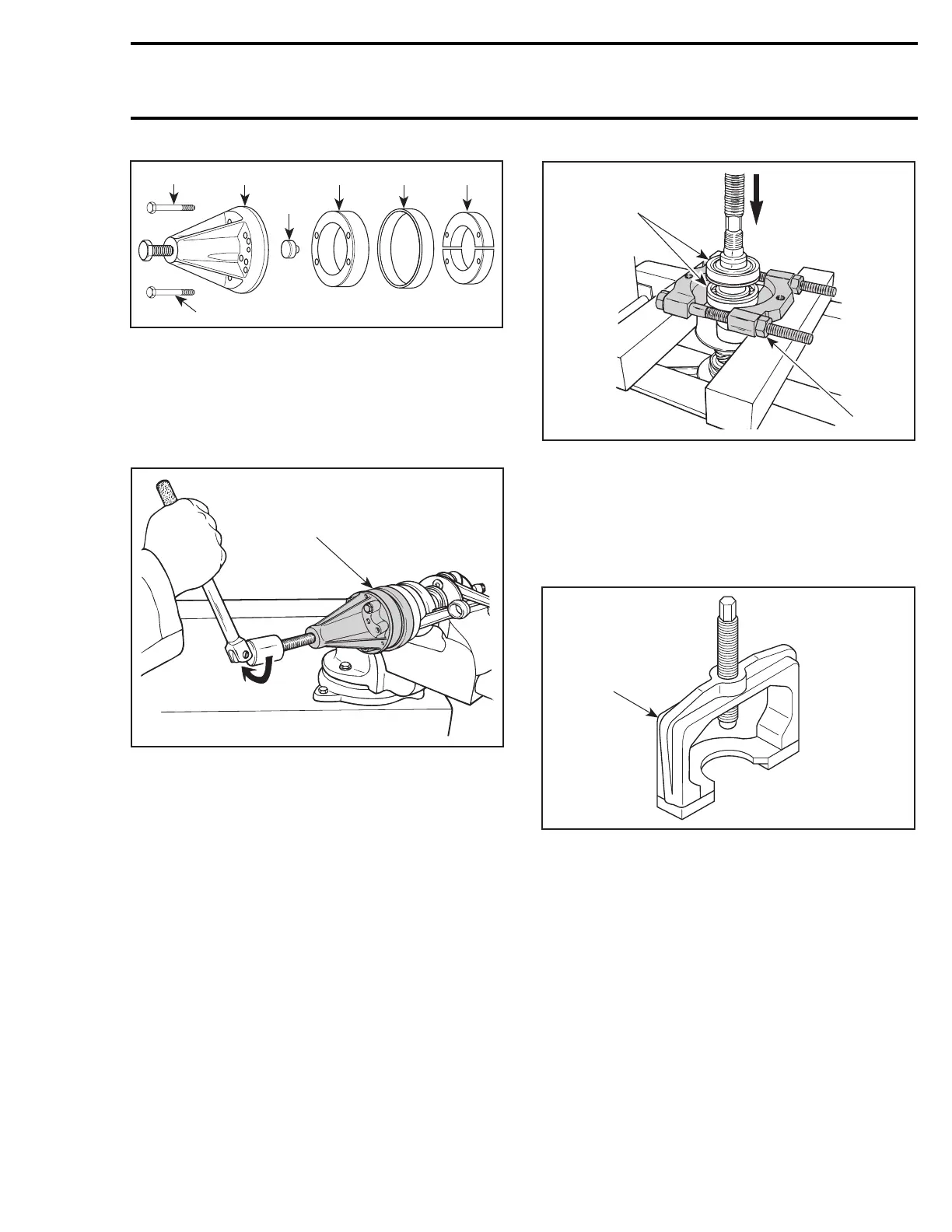

Section 04 ENGINE (2-STROKE)
Subsection 05 (BOTTOM END)
F06B03A
5
4
3
2
16
6
947 DI ENGINES
1. Puller (P/N 420 877 635)
2. Protective cap (P/N 290 877 414)
3. Distance ring (P/N 420 876 56)
4. Ring (P/N 420 977 480)
5. Ring halves (P/N 420 876 330)
6. Screw (P/N 420 841 201)
All Engines
F01D1OA
1
TYPICAL
1. Removing crankshaft bearing
Or, use a bearing extractor such as Proto no. 4332
and a press to remove two bearings at a time (ex-
cept on PTO side for the 787 RFI engines).
F01D1PA
1
2
1. Press bearings out
2. Bearing extractor
Crankshaft Gear
787 RFI Engines
The crankshaft gear no. 18 and bearing no. 5 can
be removed in one step using the following puller.
F04B03A
1
1. Puller (P/N 290 877 665)
smr2004-Complete Line Up 137
