Section 04 ENGINE (2-STROKE)
Subsection 07 (EXHAUST SYSTEM)

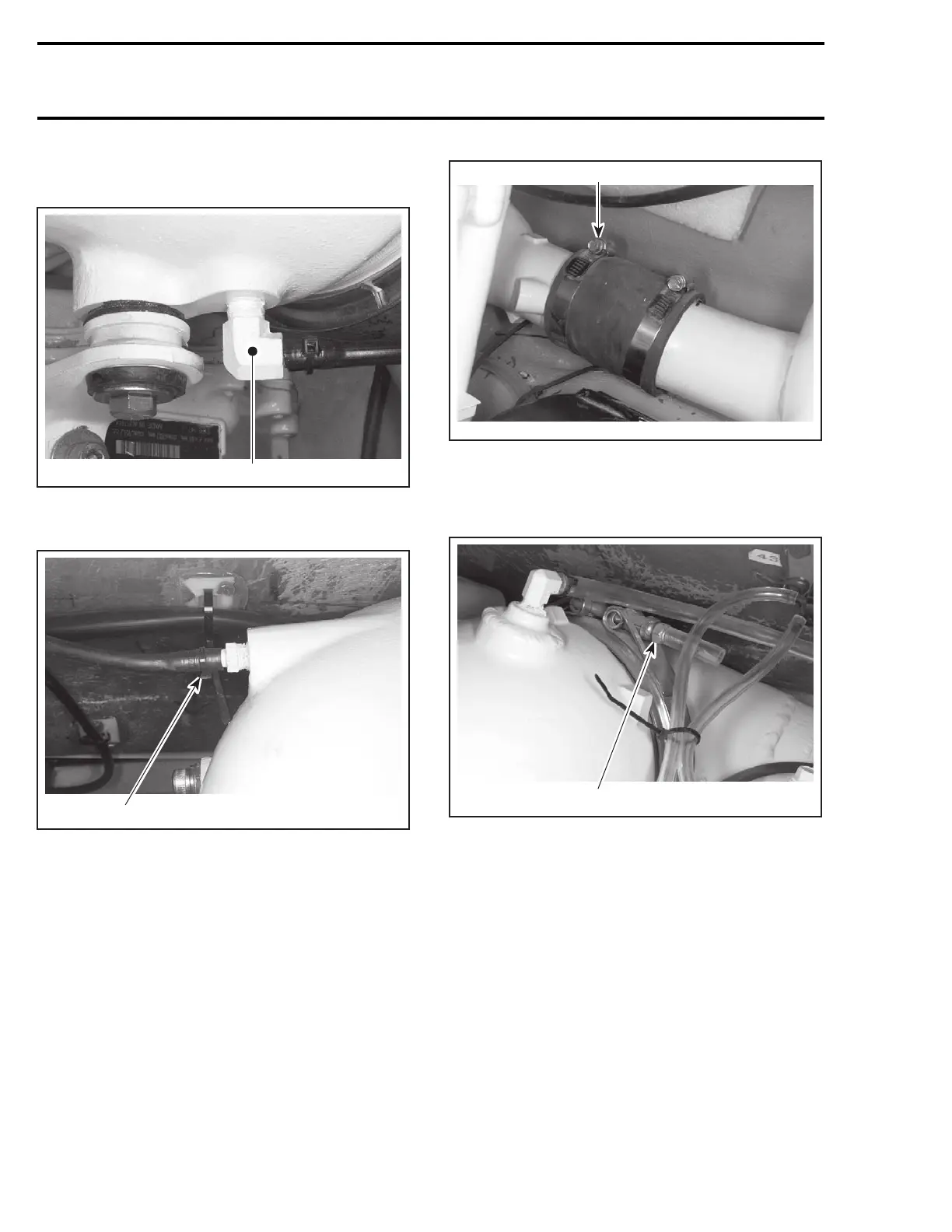

3. Disconnect the water injection hose at tuned
pipe head no. 10.
1
F06E0AA
1. Water injection hose
4. Disconnect the water bleed hose.
1
F06E0BA
1. Water bleed hose
5. Loosen clamp no. 1 retaining exhaust hose
no. 3 to tuned pipe cone no. 5.
1
F06D14A
TYPICAL
1. Loosen clamp
6. Loosen and remove clamp no. 4 retaining
tuned pipe head no. 10 totunedpipeconeno. 5.
1
F06D1SA
1. Loosen and remove clamp
7. Loosen Allen screw retaining carburetor brack-
et to tuned pipe head.
170 smr2004-Complete Line Up
