Section 05 ENGINE (4-TEC)

Subsection 08 (ENGINE BLOCK)

– oil suction pump with oil separator ass'y (re-

fer to SUCTION PUMP REMOVAL in LUBRICA-

TION section)

– engine mounting brackets

– oil reservoir plug screws no. 1 with O-ring no. 2

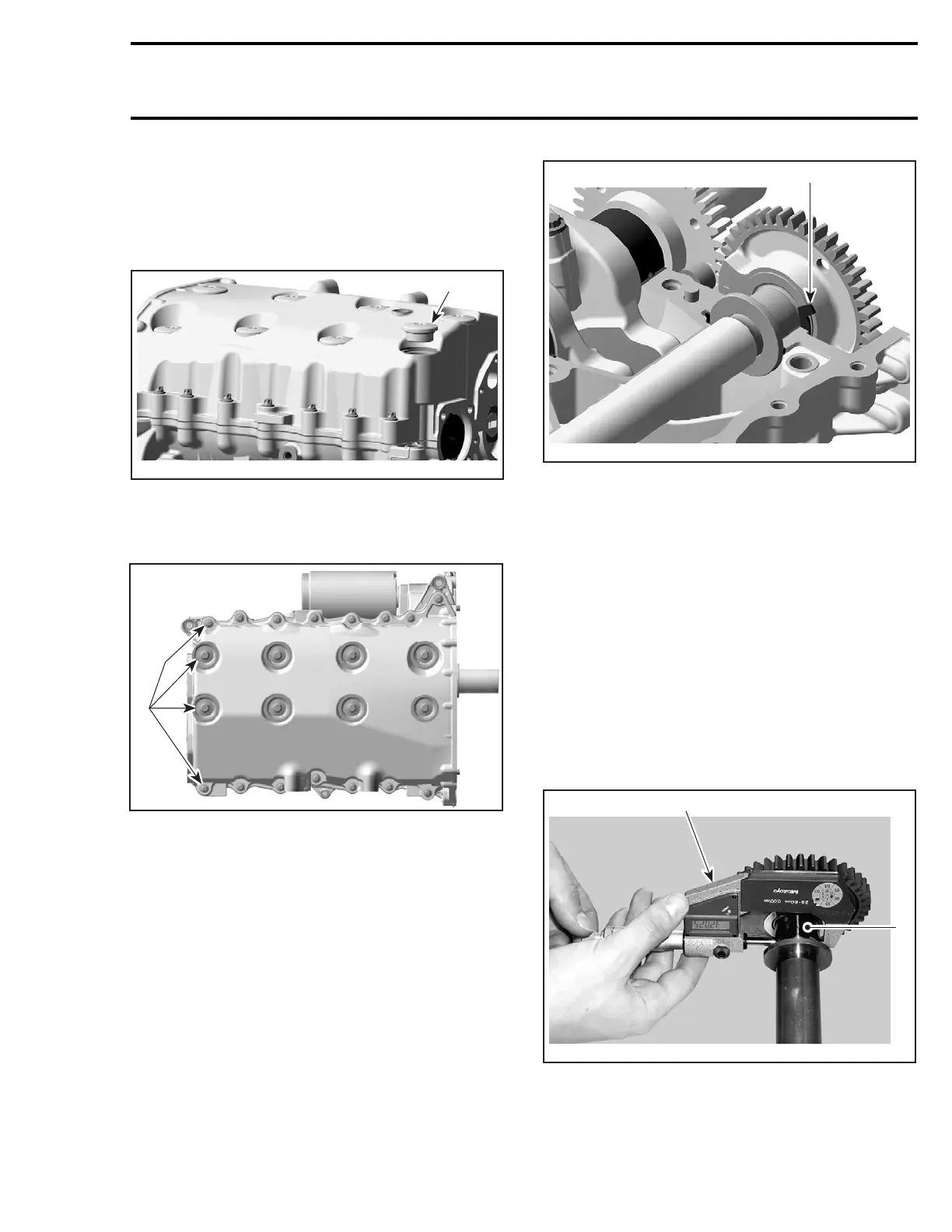

R1503motr05A

ENGINE UPSIDE DOWN

1. Oil reservoir plug screw with O-ring

– engine block screws no. 3

R1503motr109A

1. Screws

– bottom engine block half

– thrust washers no. 6

R1503motr20A

1. Thrust washer

– balancer shaft.

Inspection

Check balancer shaft and replace if damaged.

If the gear on the balancer shaft is damaged, re-

place balancer shaft.

Check gear on the crankshaft at the same time and

replace crankshaft if necessary (refer to CRANK-

SHAFT above).

Balancer Shaft Bushing Seat Play

Measure all balancer shaft bushing seats. Com-

pare to in side diameter of balancer shaft bushings

(elsewhere in this section).

R1503motr23A

1. Micrometer

2. Balancer shaft area for bus

hing

smr2004-Complete Line Up 281
