Section 12 ELECTRICAL SYSTEM
Subsection 03 (STARTING SYSTEM)

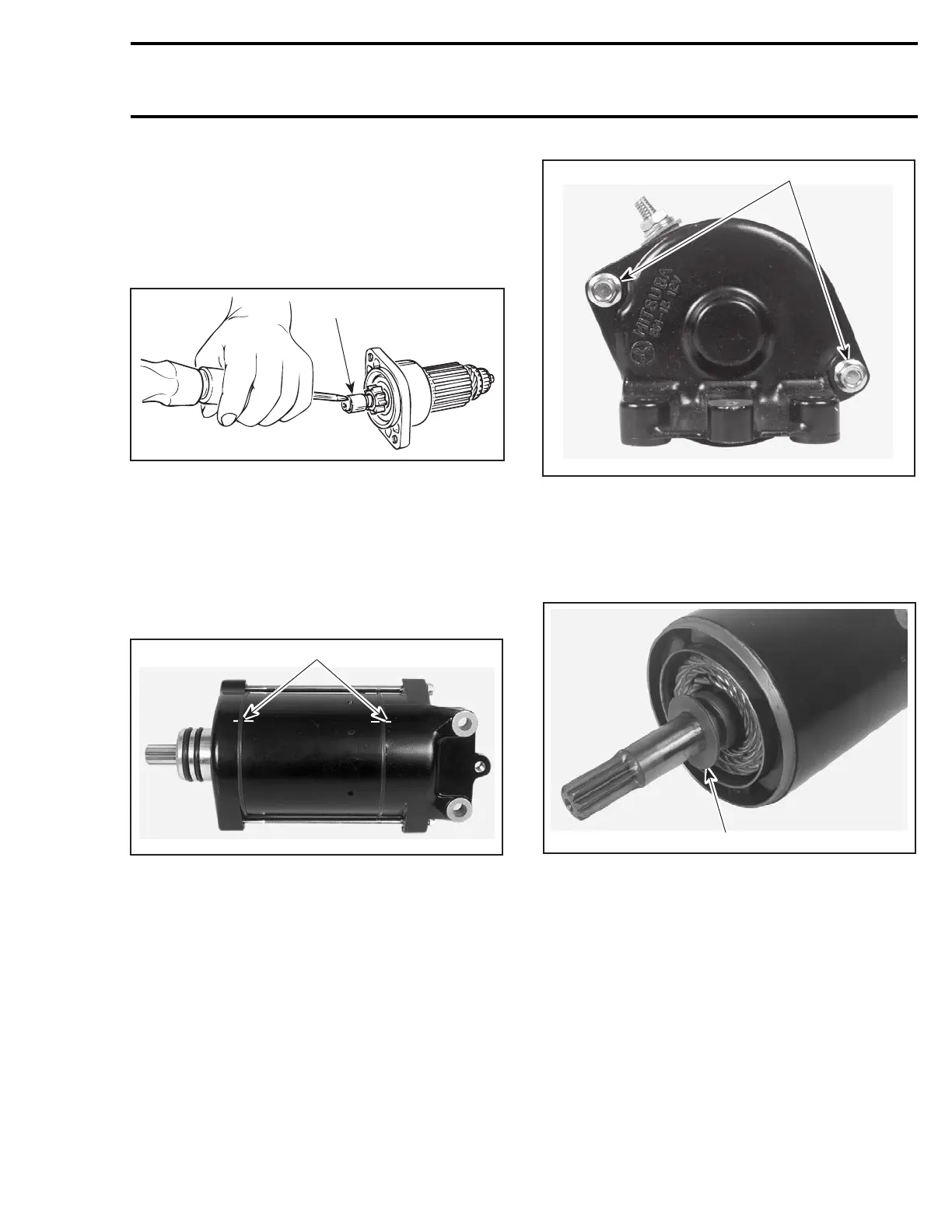

Check that the radial play between the armature
shaft and end frame is not greater than 0.20 mm
(.008 in). Replace end frame if so.
Tap the pinion stop collar no. 7 using a screw-
driver. Remove circlip no. 6. Disassemble pinion
stop collar no. 7 and spring no. 8.
A03E04A
1
1. Pinion stop collar
Turn clutch assembly no. 9 clockwise to remove
it from armature assembly no. 11.
Pull housing from armature.
947 DI Engines
Locate index marks on yoke no. 1 and end covers
no. 3 and no. 10.
F06H1FA
1
1. Index marks
Loosen through bolts no. 5.
F06H1GA
1
1. Through bolts
Remove end cover no. 3 and gasket on armature
shaft side.
Remove thrust washers no. 19 from armature
shaft.
F06H1HA
1
1. Thrust washers
Remove the other end cover no. 10 and gasket.
Remove the three washers no. 18 from armature
shaft.
smr2004-Complete Line Up 581
