Section12ELECTRICALSYSTEM

Subsection 03 (STARTING SYSTEM)

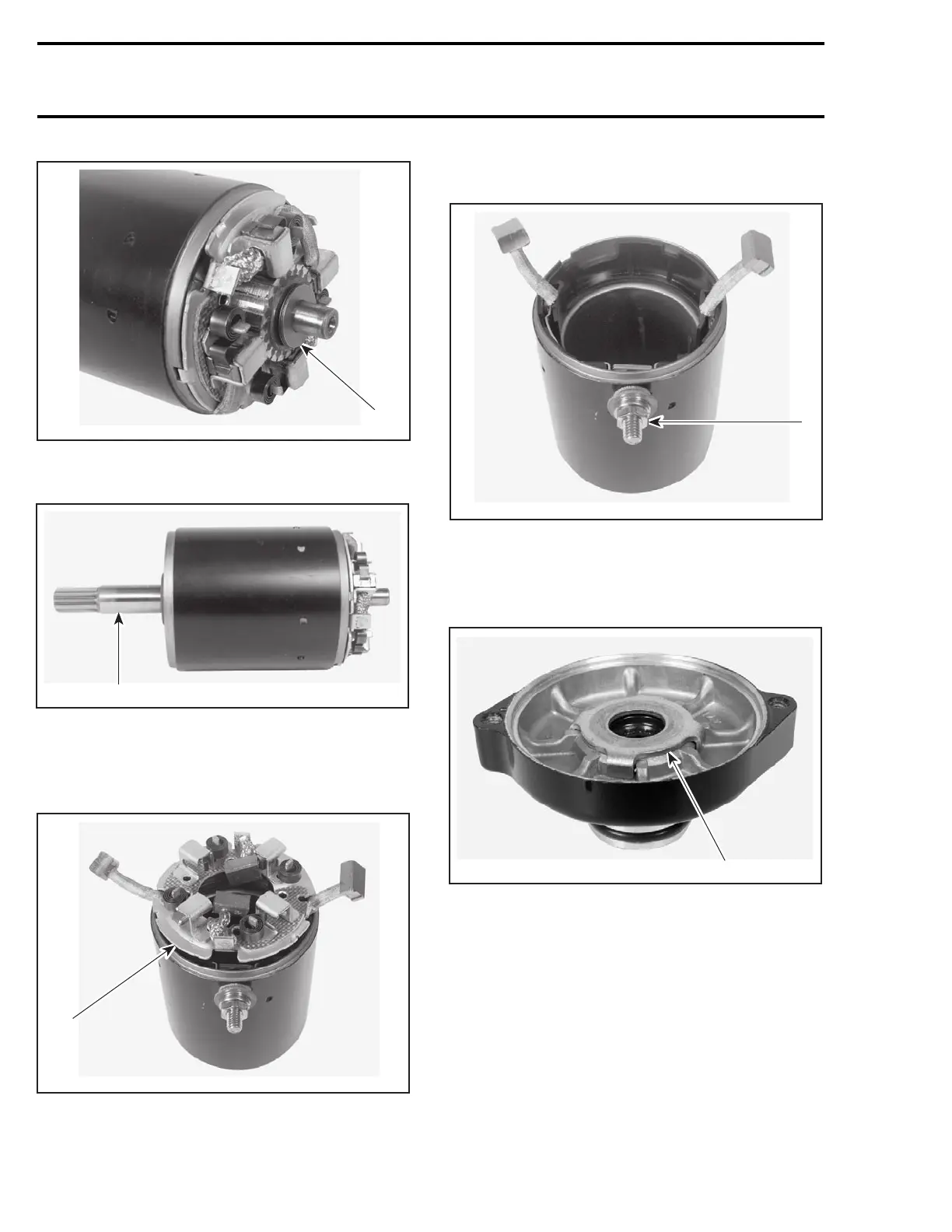

F06H1IA

1. Washers

Remove armature no. 11.

F06H1JA

1. Pull armature shaft

Release brush wires of yoke from brush holder

no. 2.

Remove brush holder no. 2.

F06H1KA

1. Remove brush holder

To remove brushes from yoke no. 1,loosennut

and remove washers.

F06H1LA

1. Loosen nut and remove washers

Remove brushes.

To remove bearing and seal in end cover, release

tabs of retainer.

F06H1MA

1. Retainer

4-TEC Engines

Remove bendix retaining circlip no. 4 and starter

bendix no. 5.
