Section 12 ELECTRICAL SYSTEM

Subsection 03 (STARTING SYSTEM)

F18H0NA

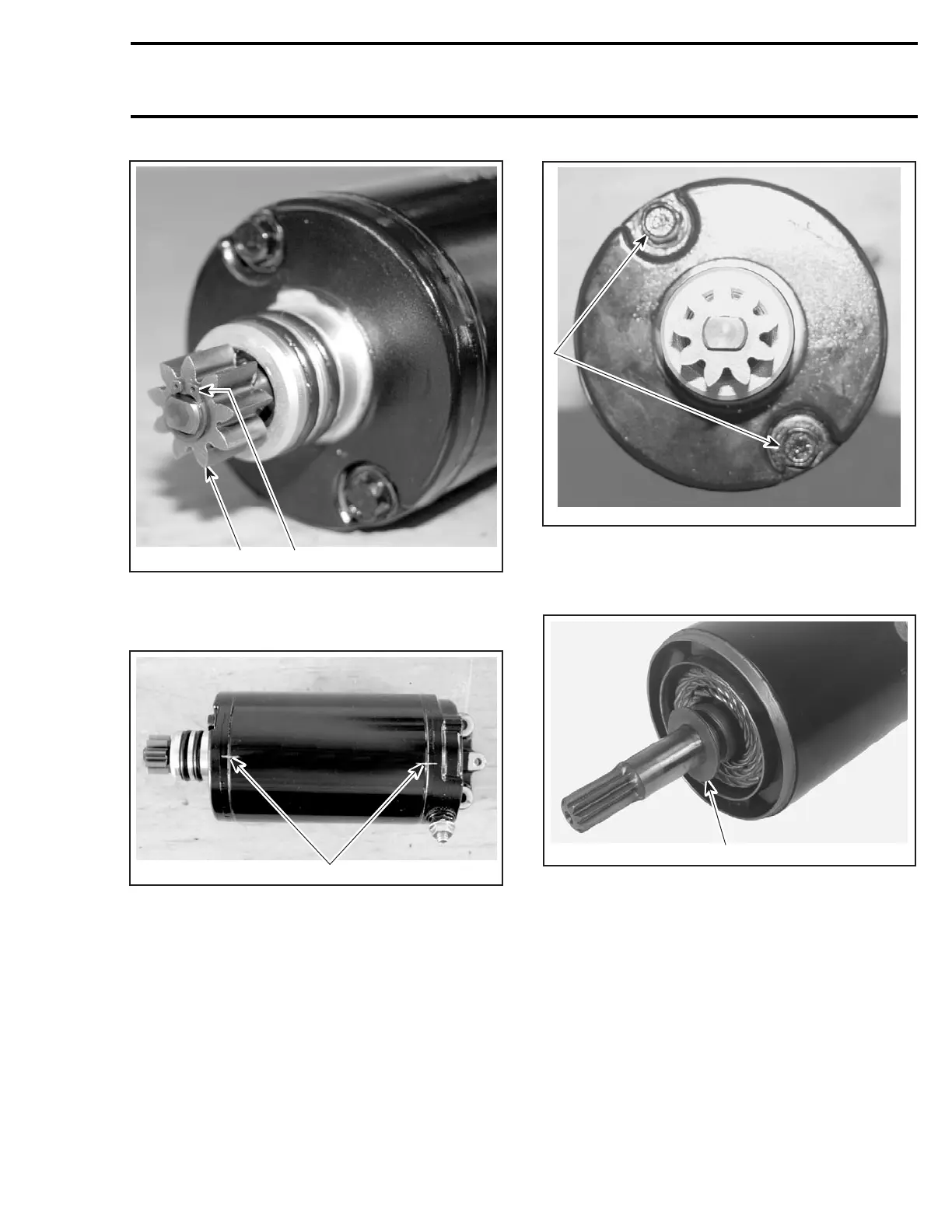

1. Retaining circlip

2. Starter bendix

Locate index marks on yoke and end covers.

F18H0OA

1. Index marks

Loosen through bolts.

F18H0PA

1. Through bolts

Remove end cover.

Remove thrust washer from armature shaft.

F06H1HA

TYPICAL

1. Thrust washers

Remove the other end cover with brushes and

brush holder assembly.

Remove armature.

smr2004-Complete Line Up 583
