Section12ELECTRICALSYSTEM
Subsection 04 (INSTRUMENTS AND ACCESSORIES)
If not, replace the temperature sensor.

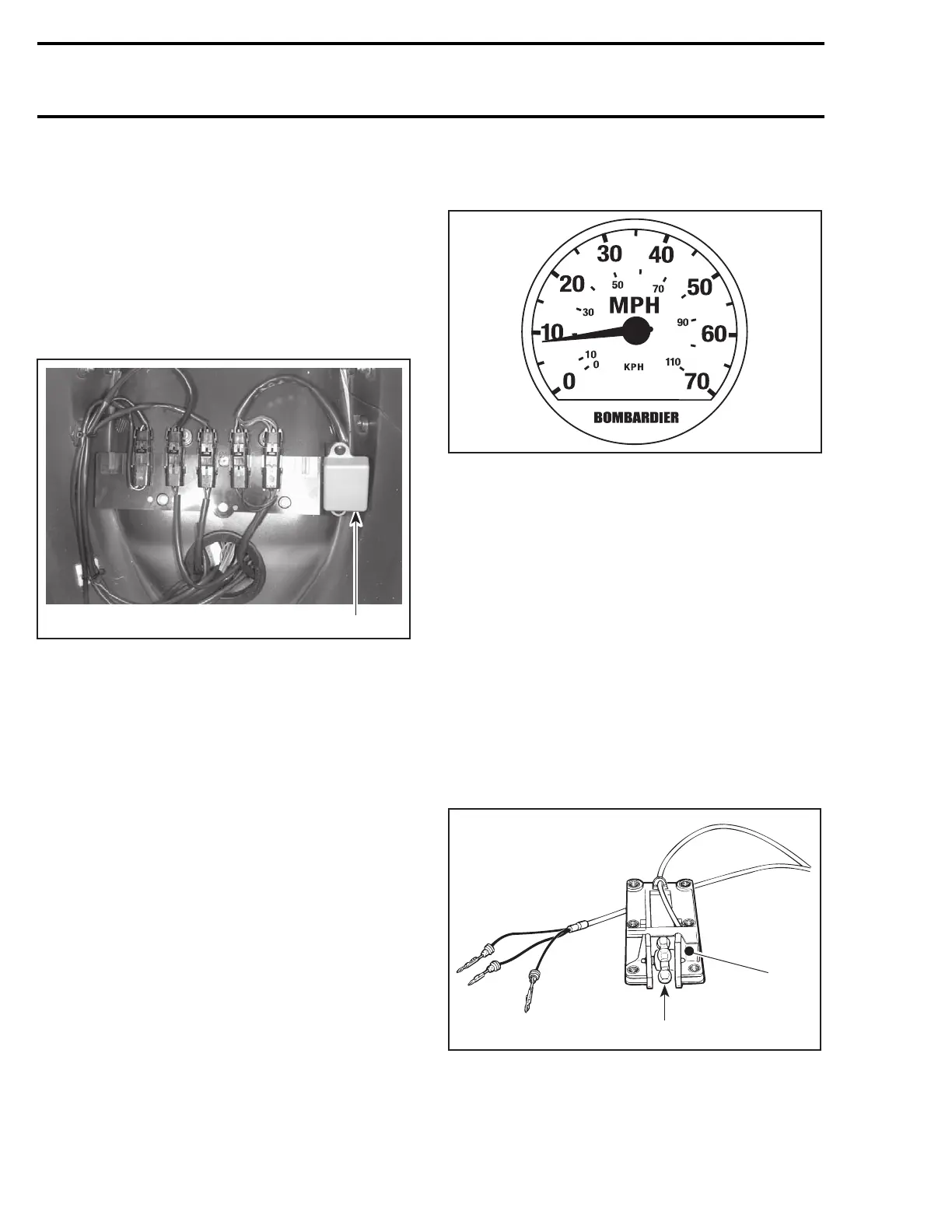

Compass
GTI LE RFI and GTX 4-TEC Models
The compass is located in the storage cover.
On 4-TEC models, B.U.D.S. can be used to check
the operation. Look in the Monitoring tab.
Remove the back panel of the storage cover to
access the compass.
F07H02A
1
1. Compass
Remove the compass from the support.
Changethedirectionofthecompassandkeepit
horizontal (± 10°). There should be a change of
direction on the Information Center.
NOTE: To check the accuracy of the compass,
you can use a portable compass and point it in
the same direction. Compare the given directions,
they should be the same.
Speedometer
GTILE,GTILERFIandXPDIModels
F07H0LA
TYPICAL
The PURPLE wire is the 12 Vdc power source of
the speedometer.
The BLACK wire is the ground.
The PURPLE/YELLOW wire is the pulse signal
from the speed sensor.
Speed Sensor
GTI LE, GTI LE RFI, XP DI and 4-TEC Models
The speedometer gives a reading through a speed
sensor. It works with the water flow which turns a
magnetic paddle wheel that triggers an electronic
pick-up that in turn sends a speed signal to the
speedometer through the MPEM.
The paddle wheel is protected by the pick-up
housing.
2
1
F01H3VA
1. Pick-up housing
2. Paddle wheel
606 smr2004-Complete Line Up
