Section 13 PROPULSION
Subsection 02 (DRIVE SYSTEM)
F01J23B
1
2

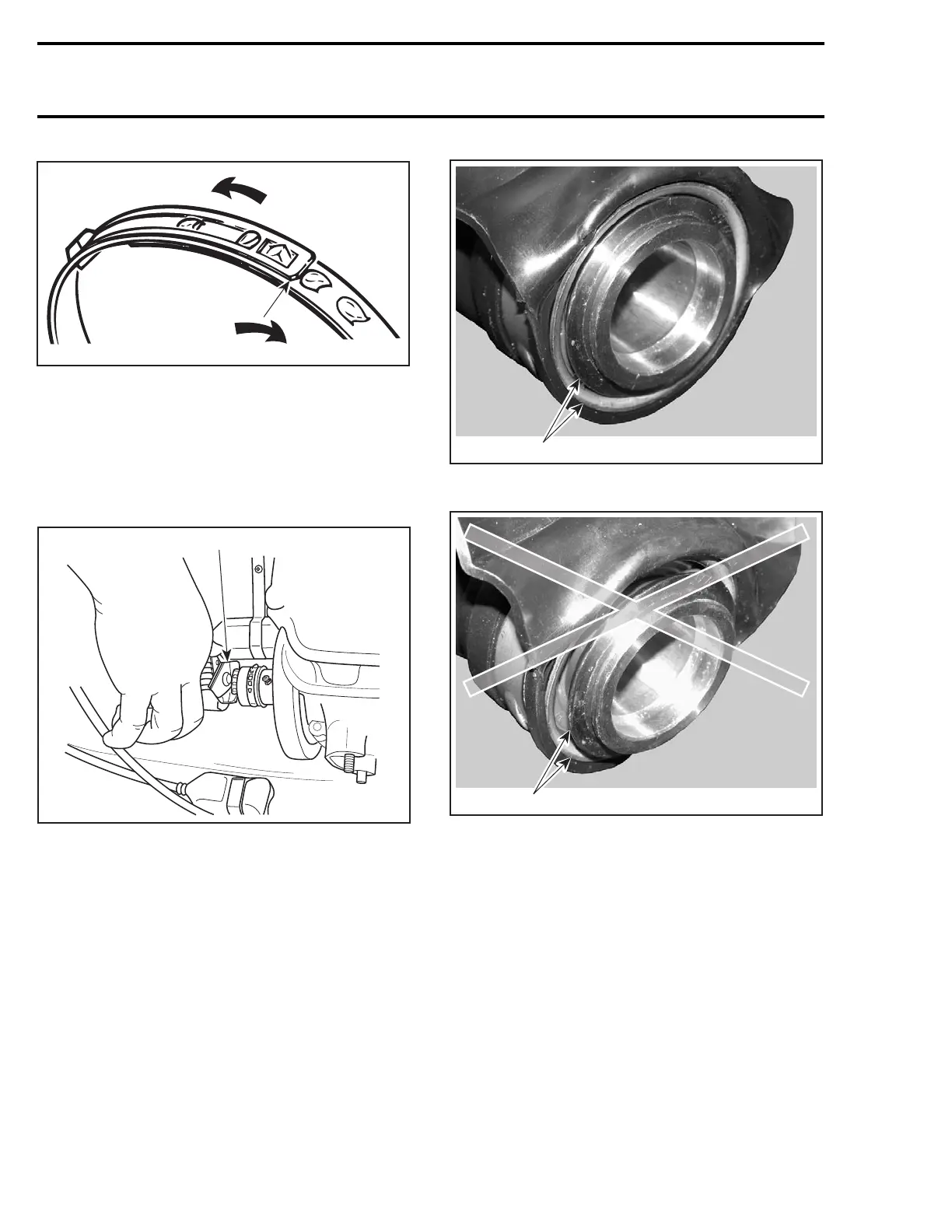

1. Engine rotation (counterclockwise)
2. Tail in opposite direction
Small Clamp
GTI Series
To secure small clamp no. 4,placenotchsideof
plier on clamp embossment and squeeze plier.
1
F02J0PB
1. Squeeze plier
Drive Shaft
4-TEC Models
NOTE: Ensure to install floating ring before insert-
ing the drive shaft in PTO seal assembly.
Before installing drive shaft, inspect PTO seal as-
sembly. The inner sleeve must be flush with outer
circumference of the assembly. Otherwise, gen-
tly push or tap on inner sleeve until flush.
F18I0EA
1
CORRECT INSTALLATION
1. Inner sleeve flush with outer circumference
F18I0FA
1
WRONG INSTALLATION
1. Inner sleeve not flush with outer circumference
Apply a thin coat of synthetic grease (P/N 293 550
010) on the O-rings of floating ring. Do not get
grease on it's sealing surface.
670 smr2004-Complete Line Up
