Section 04 ENGINE (2-STROKE)
Subsection 02 (REMOVAL AND INSTALLATION)
Air Intake Silencer
To remove air intake silencer, refer to AIR INTAKE.
Carburetor/Throttle Body
Carburetor-Equipped Models
Turn fuel valve to OFF.
Disconnect fuel supply and fuel return hoses.
To remove carburetor(s), refer to CARBURETOR
for proper procedure.
GTI RFI Series

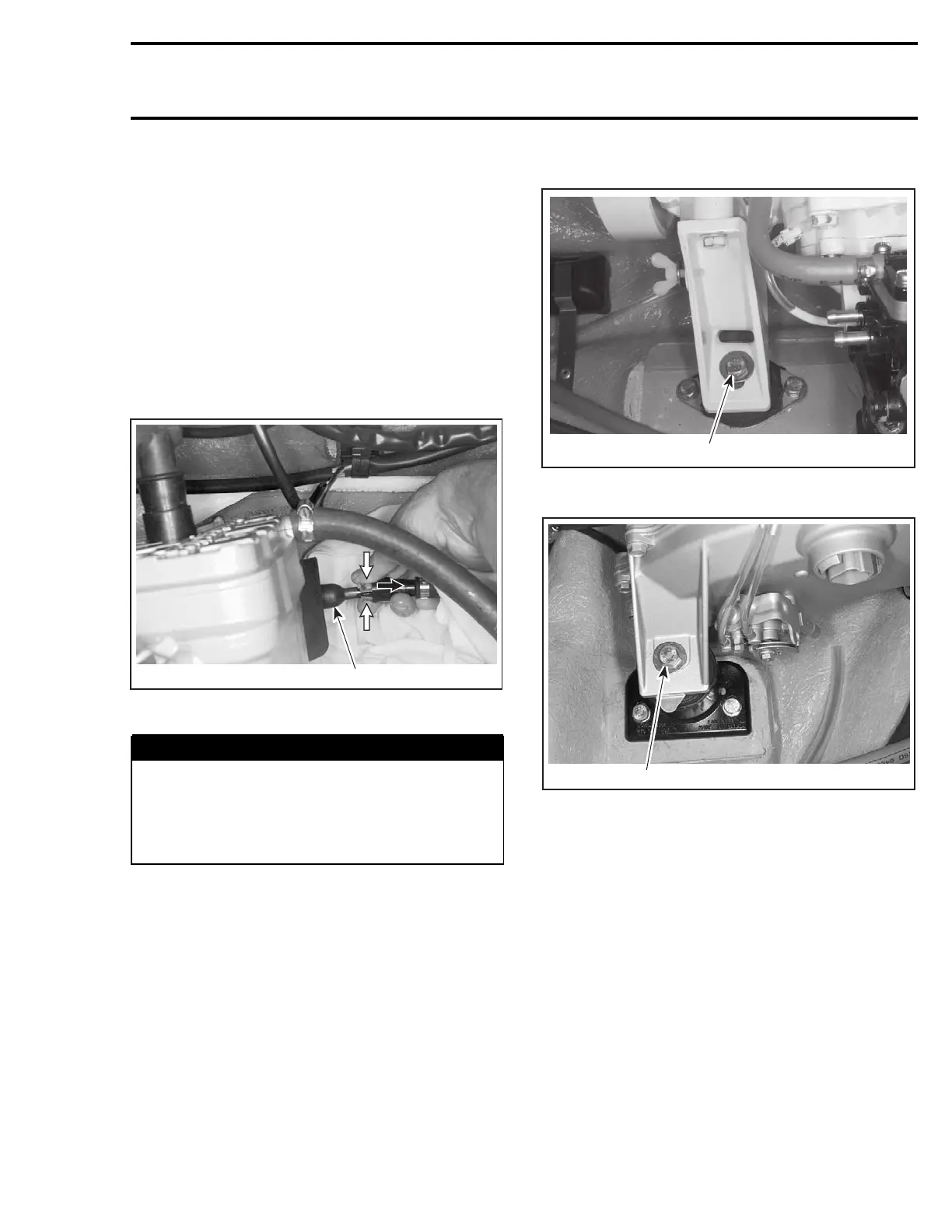

Disconnect fuel supply hose from fuel rail.
F07F11A
1
PRESS TABS AND PULL CONNECTOR
1. Fuel rail
WARNING
The fuel hose may be under pressure. Cov-
er the fuel line connection with an absorbent
shop rag. Slowly disconnect the fuel hose
toreleasethepressure. Wipeoffanyfuel
spillage inside bilge.
DI Models
Remove air/fuel rail. Refer to ENGINE MANAGE-
MENT.
All Models
Engine Support
NOTE: Be careful when removing engine sup-
port(s) or rubber mount adapters, shims could
have been installed underneath. Shims control
engine/jet pump alignment. Always note position
of shims for reinstallation, to avoid altering engine
alignment.
Remove engine support mount screws.
F02D08A
1
717 ENGINES
1. Remove screw of each engine support
F06D35A
1
TYPICAL — 787 RFI AND 947 DI ENGINES — FRONT SUPPORT
1. Remove screw
smr2004-Complete Line Up 73
