DMG 3200/3100/3000 – User Manual
Page 112 (306)

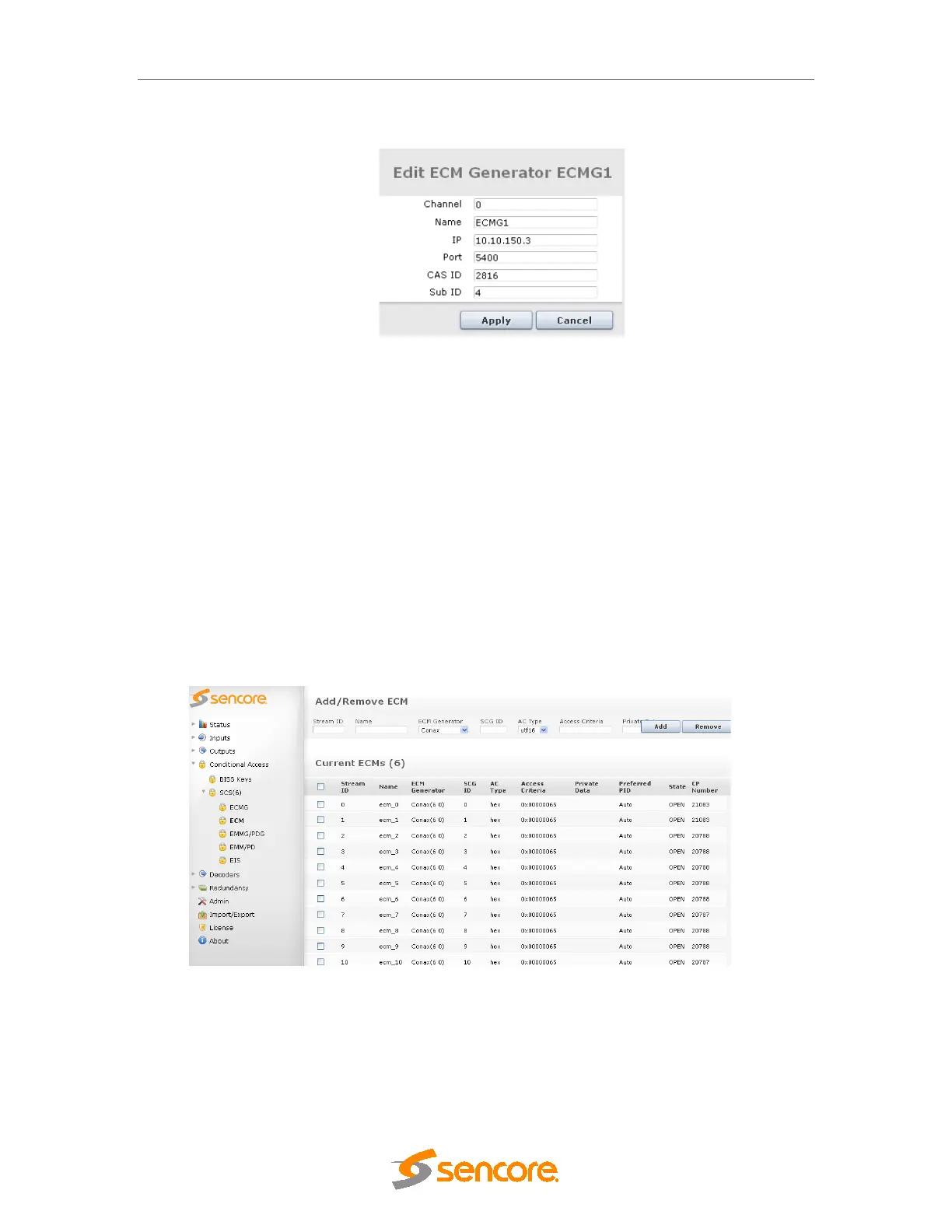

Figure 6.20- Editing ECMGs
Configuring the CryptoLITE embedded ECM Generator
CryptoLITE is an embedded ECM Generator running on the scrambler card. To establish a
channel connection to CryptoLITE, use the following mandatory parameters:
• IP: 127.0.0.1
• Port: 5555
• CAS ID: 19178
The ECMG will accept one channel only; up to 250 ECM streams are supported. When adding
an ECM, the Access Criteria field may be left empty. However, it is possible to enter a fixed 8-
byte (16 HEX characters) user specified scrambling key in the Access Criteria field.
6.3.1.4 Configuring an ECM Stream
An ECM is defined from the ECM node in the Navigation Tree. The ECM entry links a CW and
Access criteria to an ECM Generator.
Figure 6.21 - Adding an ECM
