DMG 3200/3100/3000 – User Manual
Page 127 (306)
Figure 7.8 - Service Grouping
MPTSs can be expanded to reveal the individual services they encompass. An MPTS stream
provides more PSI options compared to an SPTS. Both MPTS and SPTS provide the option to
map through external PIDs which will not be signaled in the PSI.

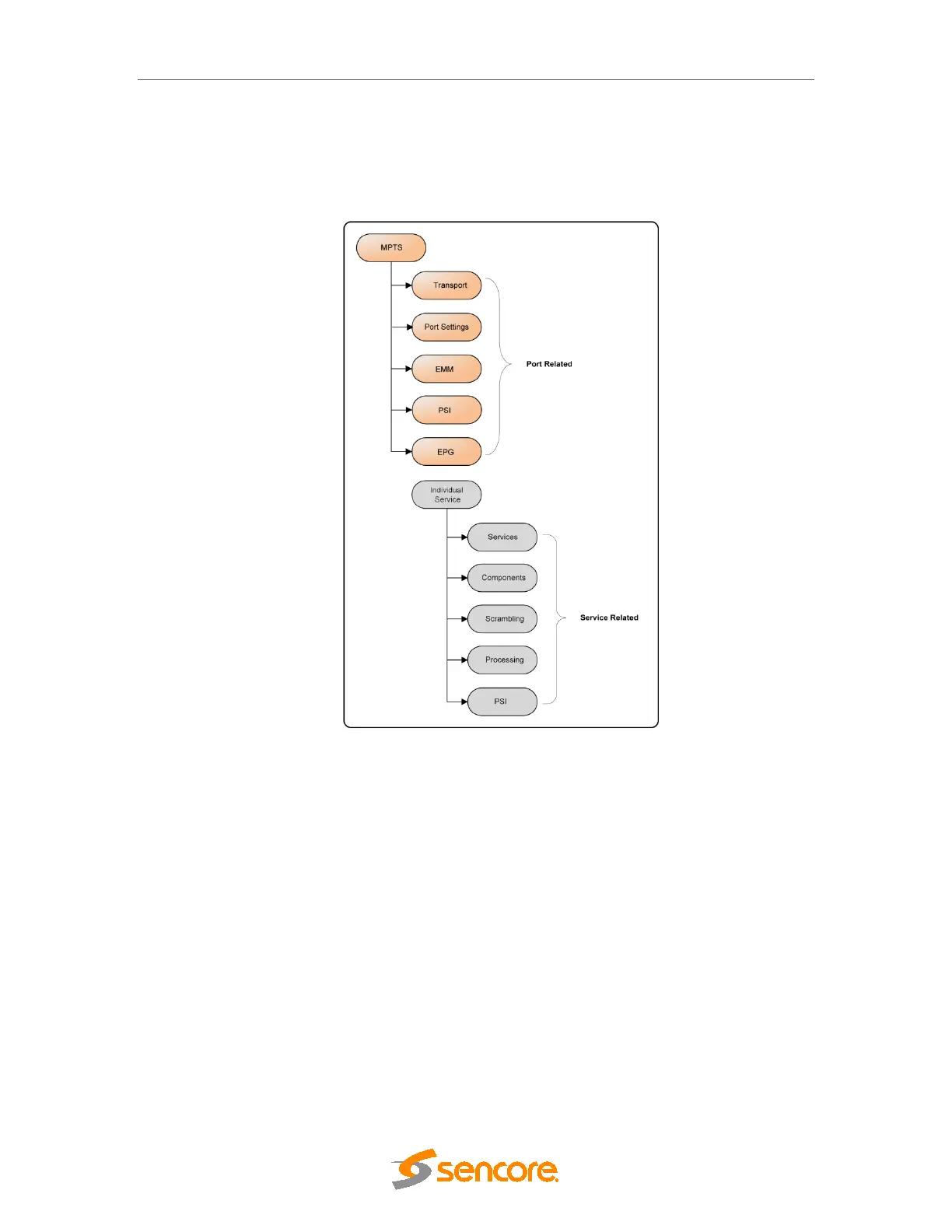

Figure 7.9 - Layout of Properties Dialog for an MPTS
Double clicking on an MPTS reveals port related settings (Edit Multiplex dialog); double
clicking on an individual service inside the MPTS reveals service related settings (Service
Properties dialog), as illustrated in Figure above.
