1.3.5 Assembly

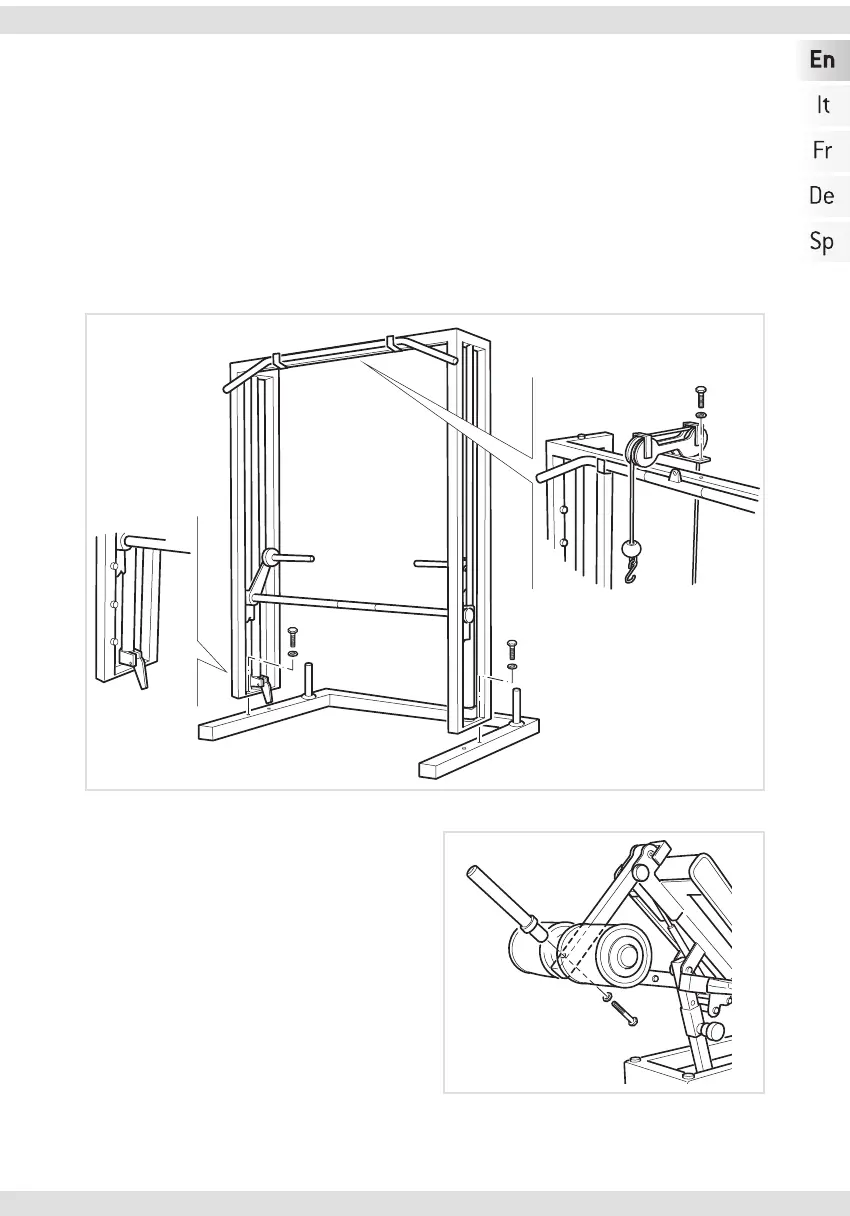

Position the safety locks all the way to the bottom.
Lower the barbell to the bottom and rest it on the safety locks.
Fit the frame on the base and fix it with the washers and the special screws (TE 10x25).
Position the pulleys support and fix it with the washers and the two special
screws (TE 10x25).
03195043
0319 50 41
03195044
03195042
Position the pin for the discs between
the padded rollers and fix it with the
washer and screw (TE 10x25).
