Fig. 3-26-2（type Ⅱ）

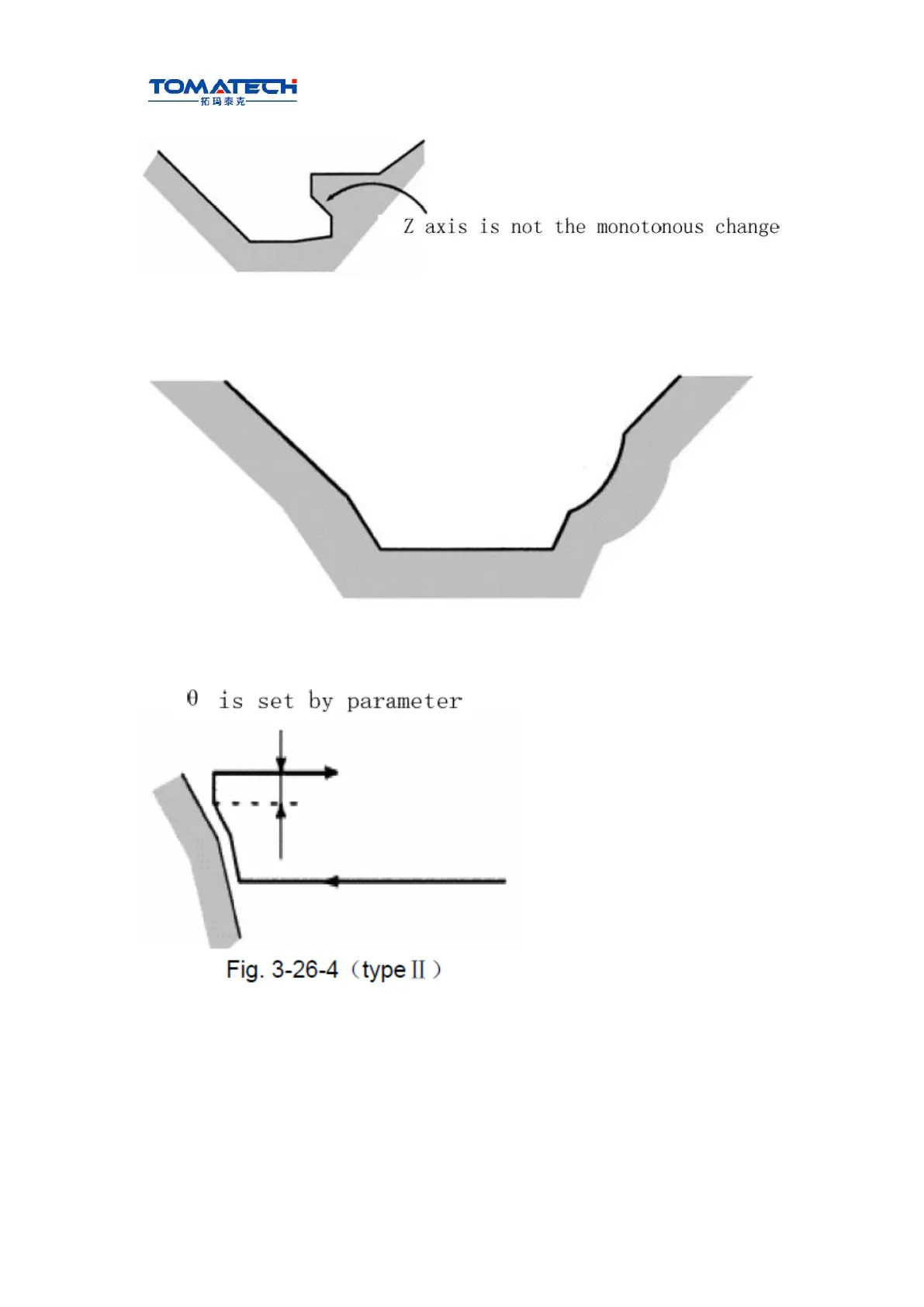

3）The first tool cutting need not the vertical: the machining can be executed when Z is the
monotonous change shape as follows:
Fig. 3-26-3rogramming
4）After the turning, the system should execute the tool retraction, the retraction travel is
specified by R（e）or No. 52 as follows:
5）Command execution process：roughing path A->H
