determined by No.002 Bit3 (MDITL).
002 MDITL
MDITL＝0 Tool life management is invalid in MDI mode.
MDITL＝1 Tool life management is valid in MDI mode.
The tool life count has two methods including time and number of times.
A. Time count
Use the time (minute) to count the tool life in cutting feed mode(such as G01, G02, G03,
G32, G33, G34 and so on), and do not count it in G00, G04, single block stop, machine
lock,auxiliary lock, dry run and so on.
B. Number of times count
There are two methods about the number of times count which is determined by No.002
Bit2
(LIFC).
002 LIFC
LIFC=0 Tool life management count mode 1
Execute the tool select (Txx99) to change the tool number, execute the count in the
cutting feed mode (except for machine lock, auxiliary lock, dry run state). The count is not
executed
when the tool number is changed and the system is not in the cutting feed mode.

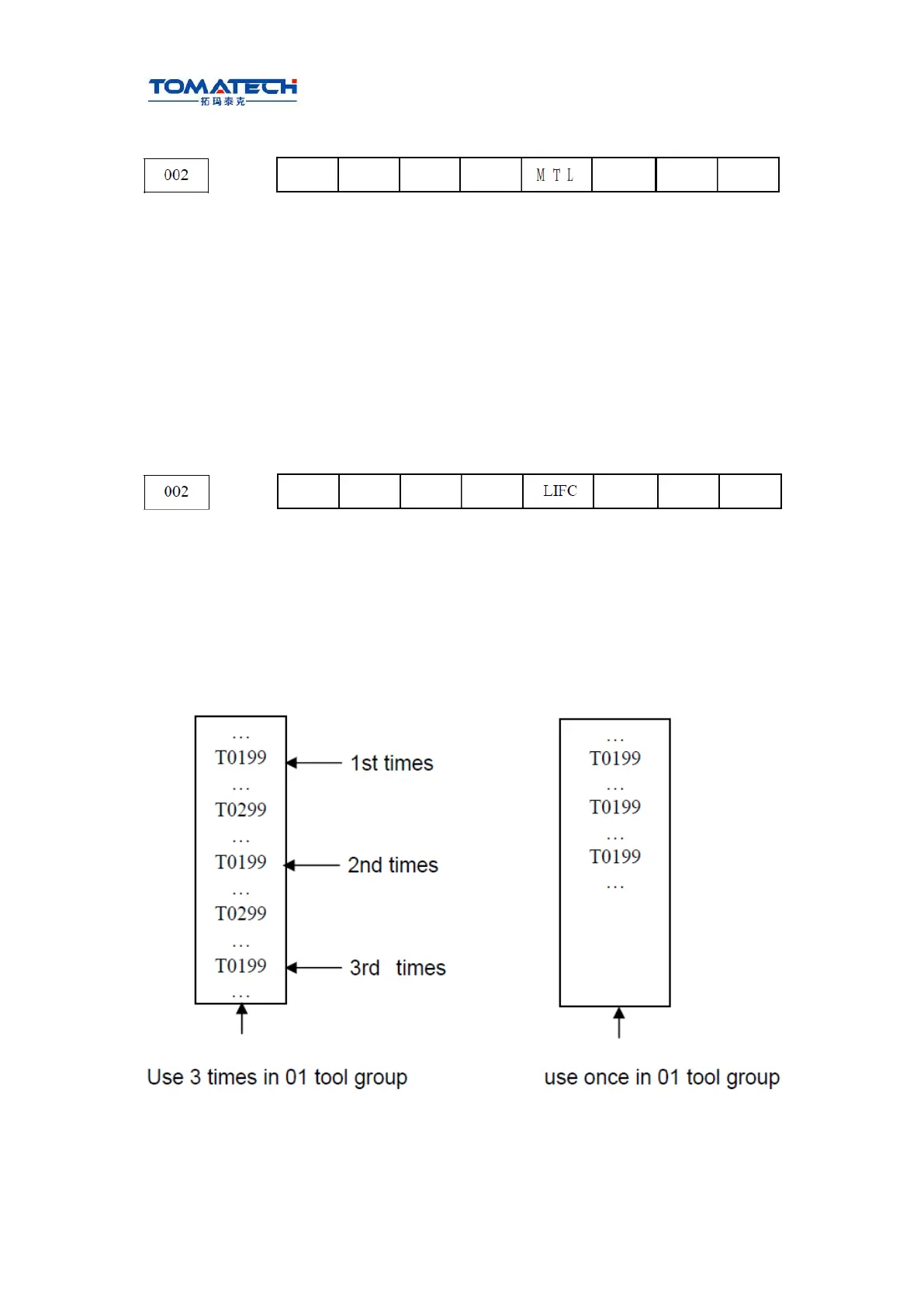

Application example:
LIFC＝1 Tool life management count 2
The tool group adds when the machining program runs to M30(M99), when the system
resets halfway, the number of time does not add, the count is not executed in machine
lock,auxiliary lock and dry run mode.
