Multi Pro 5800Page 8 − 22GeoLink Spray System
Virtual Master Switch
The virtual master switch on the X25 or X30 console
(Fig. 23) operates like the physical master boom switch
on the operator console, stopping/starting the flow of
product to all of the nozzles currently enabled. The color
of the virtual master switch indicates the state or readi-
ness of the spray system as follows:
Red: the system is not ready and cannot be used in
its current condition
NOTE: Pressing the virtual master switch when red
will expose the Master Switch Status screen and dis-
play which condition(s) are preventing the system
from achieving standby status.
White: the system is ready but is not currently spray-
ing (standby status)
Green: the system is ready and spraying (product
flowing from the nozzle(s) if within a boundary)

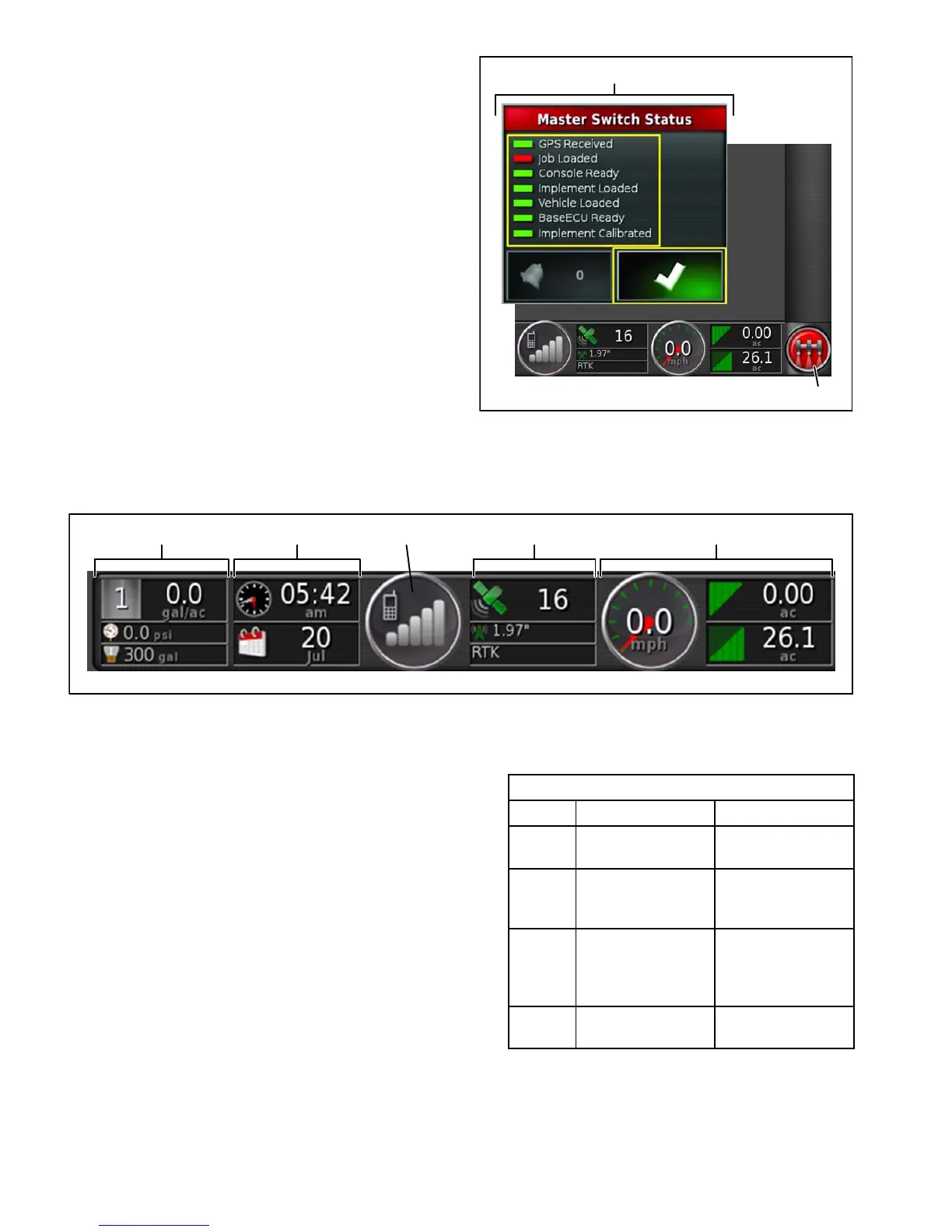

1. Virtual master switch 2. Master switch status
Figure 23
2
1
Virtual Dashboard
1. Current spray application
2. Clock
3. Cellular signal strength
4. GPS signal
5. Guidance information
Figure 24
23 41 5
The virtual dashboard (Fig. 24) is user customizable and
can be set to include the following information:
Current Spray Application: rate, system pressure,
product tank volume
Clock: time and date
Cellular Signal Strength: bar chart
GPS Signal and Correction: the panel includes
system readiness (satellite icon color) and number of
satellites being used, correction quality (antenna
icon color) and position accuracy, and correction
source.
Icon Color Chart
Color Satellite Icon Antenna Icon
Green Good Accuracy Correction source
has converged
Yellow Average Accuracy Correction source
received but not
accurate
Red Poor Accuracy Correction source
received is differ-
ent from system
configuration
Grey No signal No correction
source received
Guidance Information: select four of six possible
display options including speed, cross track error
(vehicle distance from the nearest way−line), head-
ing, swath, area covered and area remaining.
