Multi Pro 5800 Page 8 − 21 GeoLink Spray System
Sprayer Icon
The sprayer icon on the operation screen (similar to
the nozzle valve icons on sprayer controller menu) will
change color during operation to indicate the following
(Fig. 22):
Red: boom switched OFF, all nozzles on the boom
disabled
Blue: boom switched ON, all nozzles on the boom
are enabled and available to spray but no product is
flowing from the nozzle (typically due to low vehicle
speed)
Yellow: boom switched ON, all nozzles on the boom
are enabled and available to spray but no product is
flowing from the nozzle (typically due to automatic
section control of nozzle)
Green: boom switched ON, all nozzles on the boom
are enabled and available to spray and product is
flowing from the nozzle

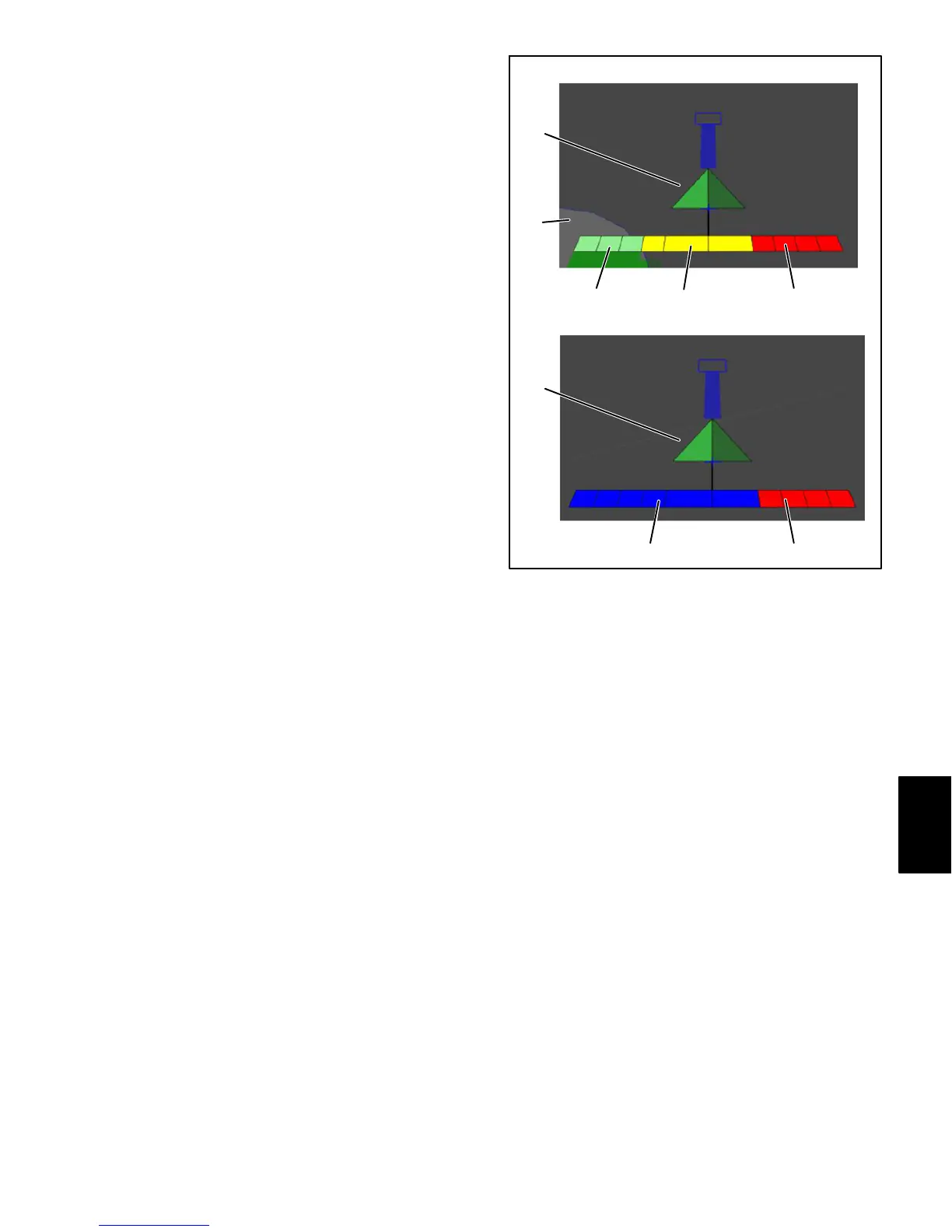

1. Sprayer icon
2. Boundary (spray zone)
3. Green: spraying
4. Yellow: not spraying
(outside of boundary)
5. Blue: not spraying
(low vehicle speed)
6. Red: not spraying
(boom manually OFF)
Figure 22
2
1
1
34 6
56
SCENARIO 2
SCENARIO 1
GeoLink
Spray System
