Toro Multi Pro 5800 Service Manual

Multi Pro 5800 Page 8 − 55 GeoLink Spray System
IMPORTANT: Before performing welding on the ma-
chine, disconnect both positive and negative bat-
tery cables from the battery, disconnect the wire
harness connector from the ASC−10, the machine
TEC and disconnect the terminal connector from
the engine alternator. These steps will prevent dam-
age to the machine electrical system when welding.

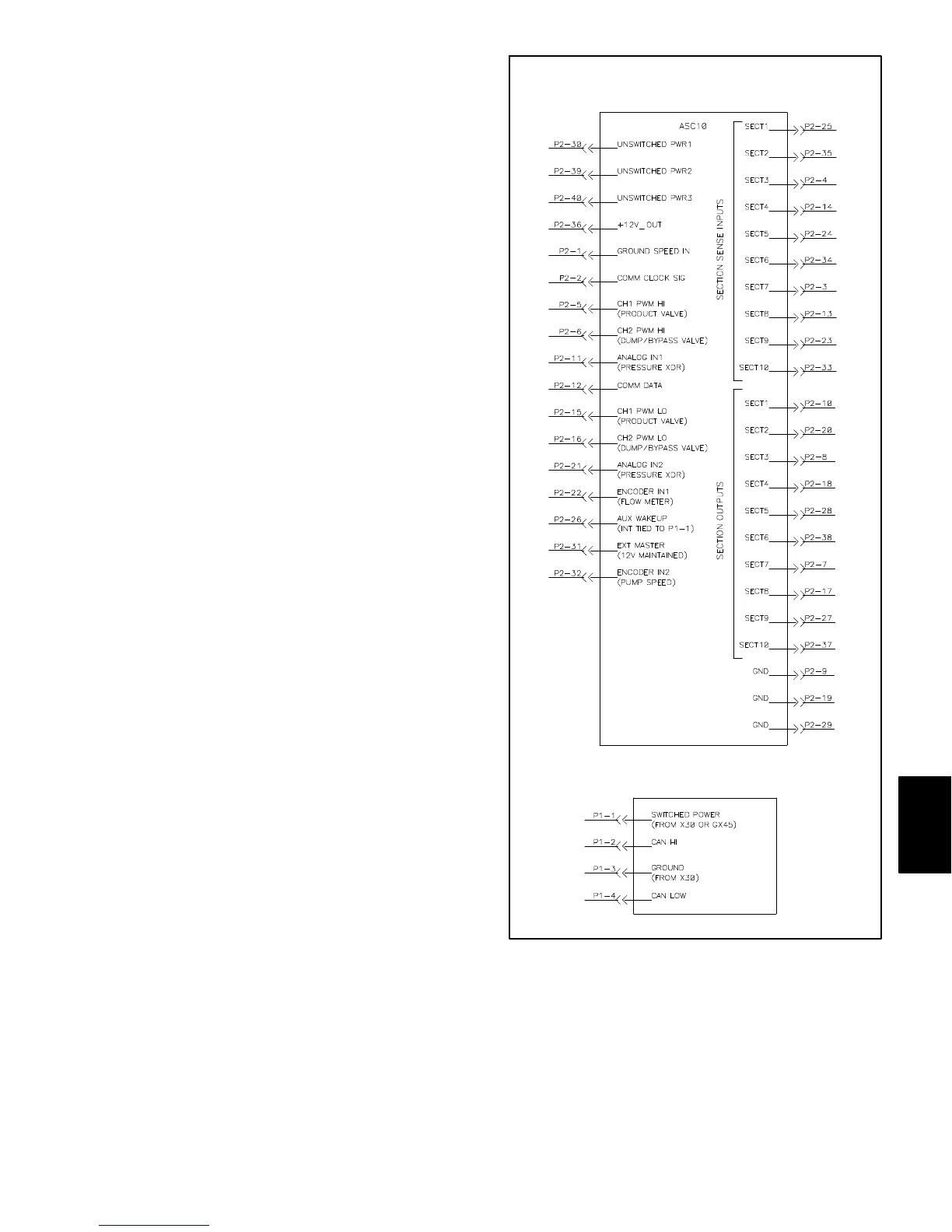

Figure 64
CONTROLLER
ASC−10
P40
P59
GeoLink
Spray System
