Toro Multi Pro 5800 Service Manual

Multi Pro 5800Chassis Page 9 − 22

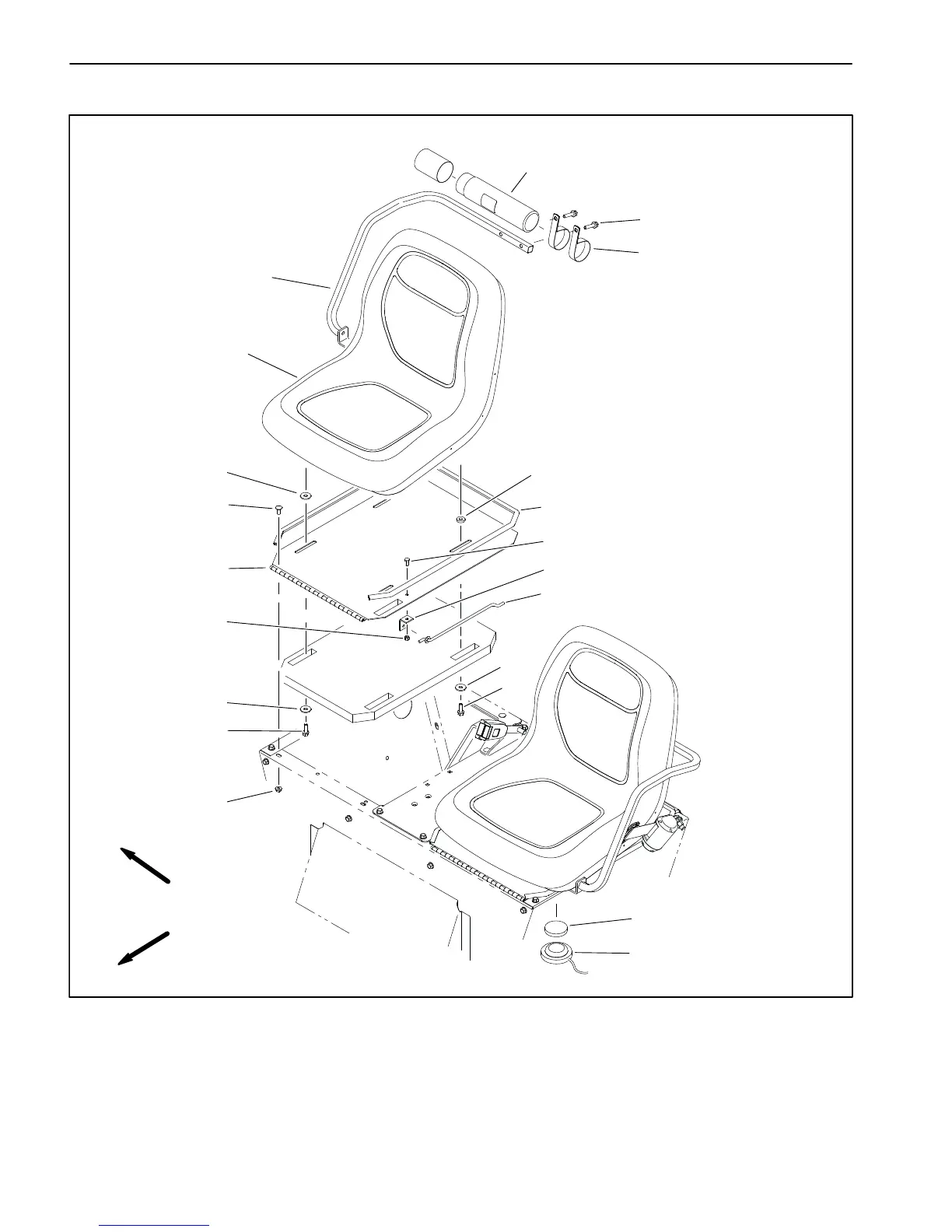

Seats
11
12
13
14
15
16
17
18
1
2
3
4
5
6
6
6
7
8
9
10
10
1. Seat assembly (2)
2. Armrest (2)
3. Manual storage tube
4. Flange head screw (2)
5. R−Clamp (2)
6. Flat washer (10)
7. Carriage screw (4)
8. Hinged seat panel (2)
9. Lock nut (2)
10. Flange head screw (8)
11. Flange nut (4)
12. Prop rod (2)
13. Prop rod bracket (2)
14. Cap screw (2)
15. Trim (2)
16. Flat washer (6)
17. Plunger disc
18. Seat switch
Figure 23
FRONT
RIGHT
