Multi Pro 5800−GPage 4 − 20Kubota Gasoline Engine
17.Label and disconnect wire harness connectors at the
following locations:
A. Remove positive battery cable and wire harness
connector from starter motor (Fig. 12).
B. Remove cap screw and lock washer that secure
negative battery cable and wire harness ground wire
to engine block (Fig. 12).
C. Disconnect the 16 pin interconnect between the
Yanmar engine wire harness and the machine wire
harness. The interconnect is located on the right side
of engine near the engine power center (Fig. 13).
18.Clamp fuel supply hose near the engine fuel rail to
prevent leakage (see Fuel System in this chapter). Dis-
connect fuel supply hose from the fuel rail and position
disconnected fuel hose away from engine.
19.Record location of any cable ties used to secure the
wiring harness, fuel line or hydraulic hoses to the engine
assembly. Remove cable ties attached to engine as-
sembly.
20.Remove flange nuts, snubbing washers and cap
screws securing the engine brackets to engine mounts.
CAUTION
Make sure that hoist or lift used to remove en-
gine can properly support engine. Engine as-
sembly weighs approximately 295 pounds
(134 kg).
IMPORTANT: Make sure to not damage the engine,
fuel hoses, hydraulic lines, electrical harness or
other parts while removing the engine assembly.
21.Using a hoist and the lifting lugs provided on the en-
gine, carefully lift the engine from the machine.
22.If necessary, remove engine brackets, pump
adapter and flywheel coupler from the engine, or engine
mounts from frame.

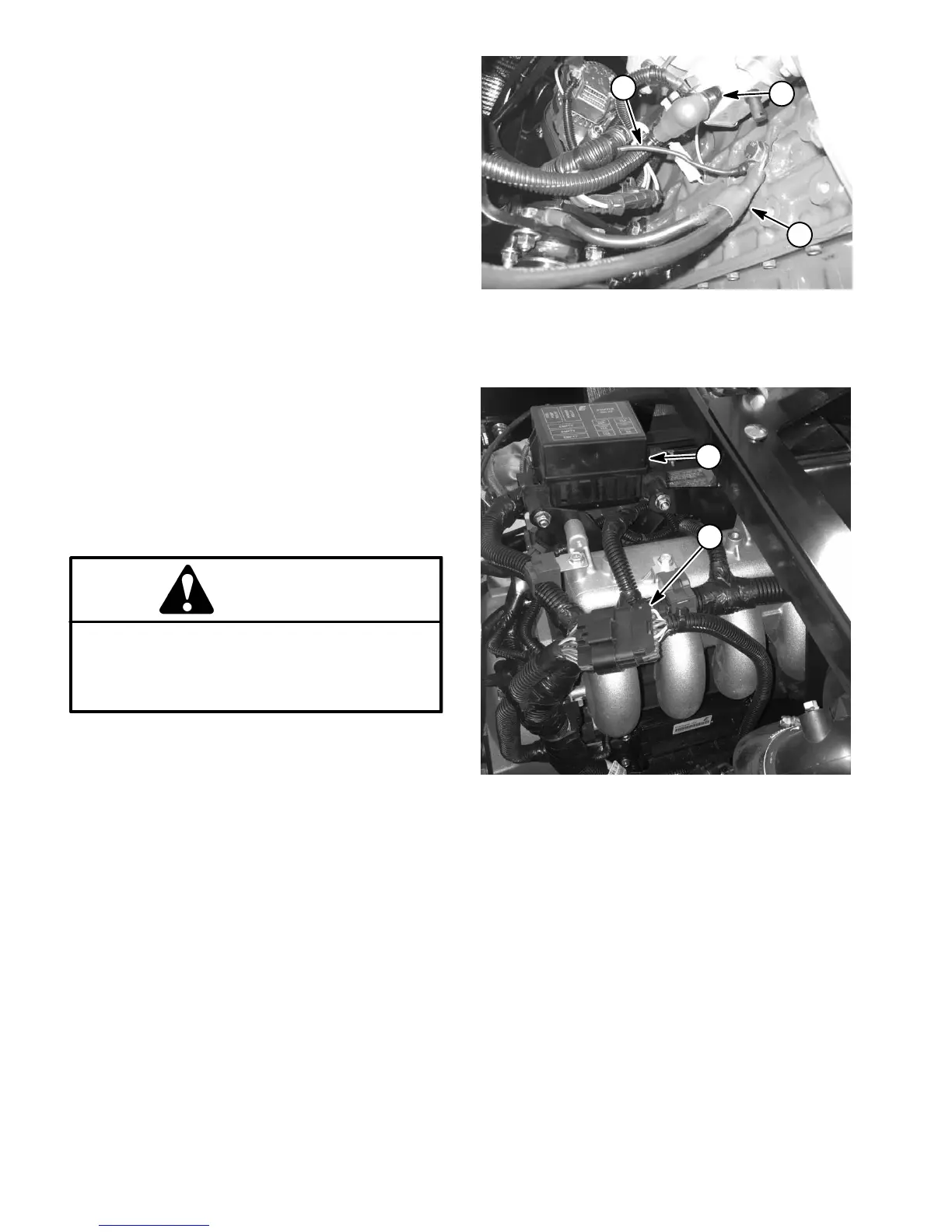

Figure 12
1. Starter motor stud
2. Negative battery cable
3. Harness ground wire
1
2
3
Figure 13
1. Engine power center 2. 16 pin interconnect
1
2
