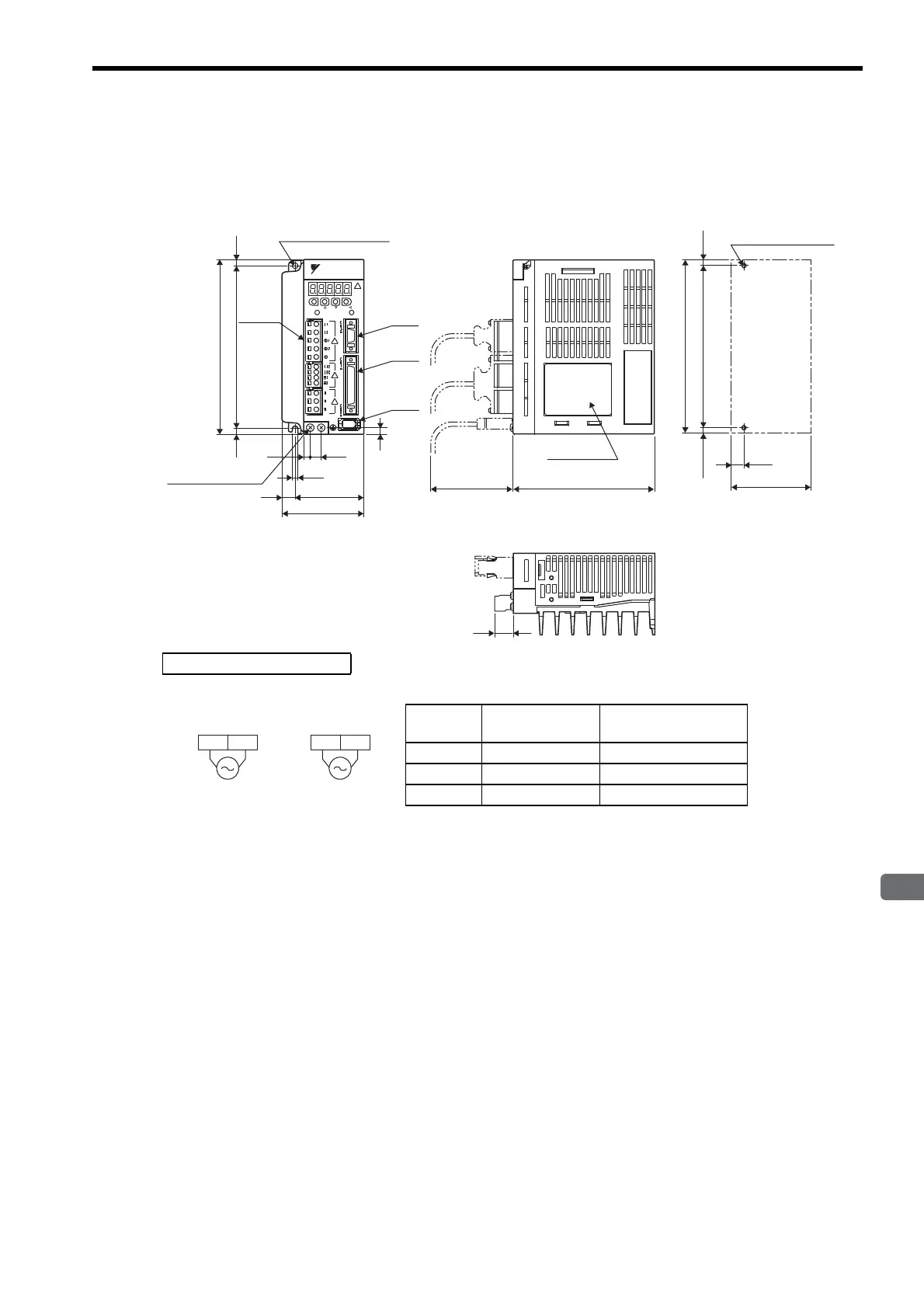

4.7 Dimensional Drawings of Base-mounted SERVOPACK Model

4-17

SERVOPACK Specifications and Dimensional Drawings

4.7.2 Single-phase 100 V: 200 W (02BD, 02BDA)

Single-phase 200 V: 400 W (04AD, 04ADA)

External Terminal Connector

SERVOPACK Connector

Connector

Symbol

SERVOPACK

Connector Model

Manufacturer

CN1 10250-52A2JL Sumitomo 3M Co., Ltd.

CN2 53460-0611 Molex Japan Co., Ltd.

CN3 10214-52A2JL Sumitomo 3M Co., Ltd.

2×φ5 holes

Ground terminal

2×M4 screws

Terminal

block

2×M4 screw holes

Mounting Hole Diagram

149.5±0.5

CN3

CN2

CN1

130

160

149.5

5.5

(75)

(5)

(63)

5.5

160

(5)

YAS KAWA

YASK AWA

SERVOPACK

SGDM-

(Mounting pitch)

MODE/SET

CHARGE POWER

DATA/

Nameplate

Units: mm

Approx. mass: 1.1 kg

L1 L2

Main circuit

power supply

Control power

supply

Single-phase

100/200 VAC

50/60 Hz

L1C L2C

Single-phase

100/200 VAC

50/60 Hz
