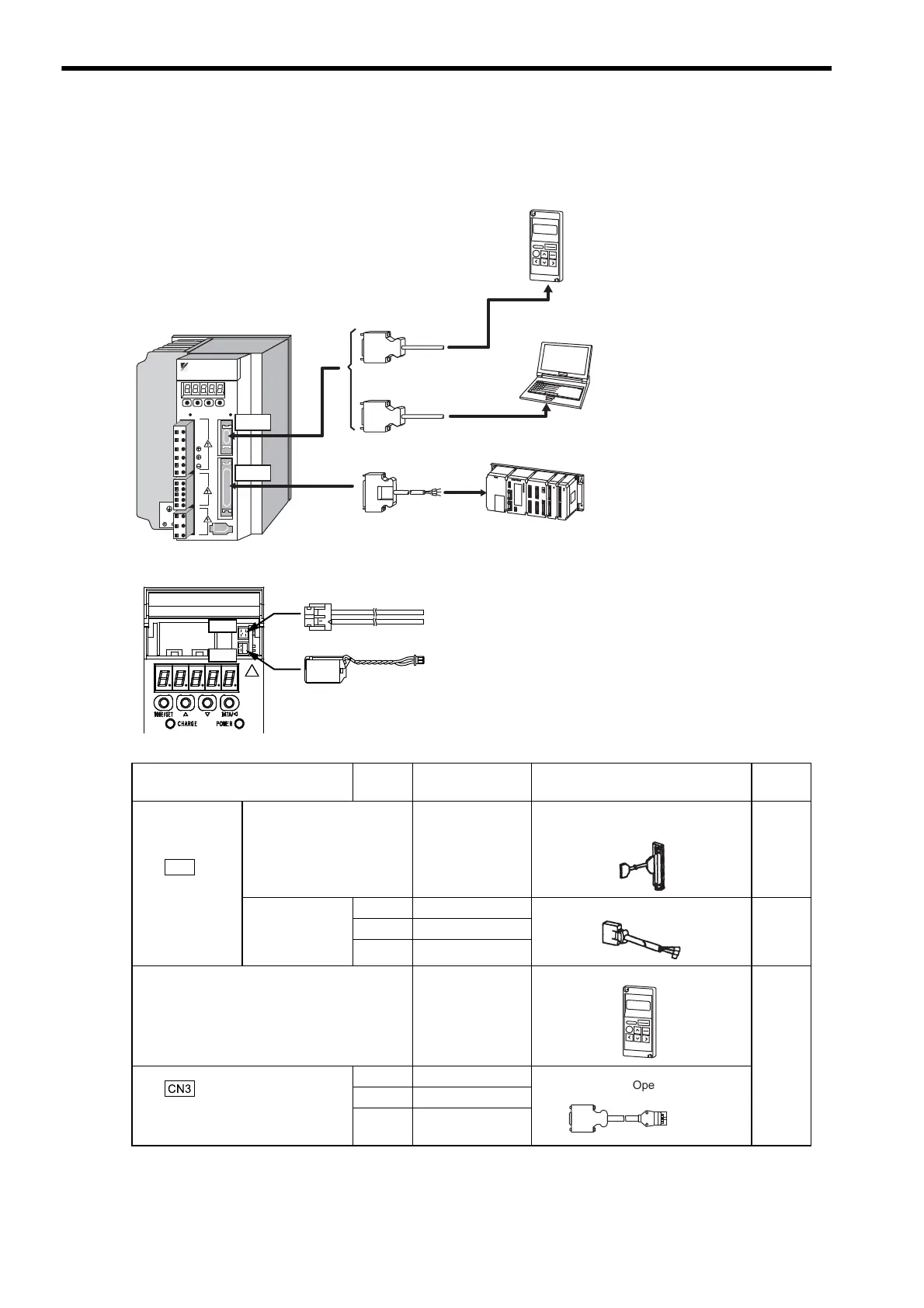

YASKAWA Sigma II Series User Manual

2 Selections
2.5.1 Special Options
2-26
2.5 Selecting Peripheral Devices
2.5.1 Special Options
Name Length Type Specifications
Refer-
ence
c
I/O Signal
Cables
Connector terminal block
converter unit
JUSP-TA50P
Terminal block and 0.5 m connection
cable
5.8.4
Cable with
loose wires at
one end
1 m JZSP-CKI01-1 Loose wires at host controller end
5.7.1
2 m JZSP-CKI01-2
3 m JZSP-CKI01-3
d Digital Operator
JUSP-OP02A-2
With connection cable (1 m)
5.8.2
e
Connection Cable for Digital
Operator
∗
1 m JZSP-CMS00-1
1.5 m JZSP-CMS00-2
2 m JZSP-CMS00-3
* Order your cable from Yaskawa Controls Co., Ltd. in the following cases.
•
When you need a longer cable than the one supplied with the digital operator.
•
When you need additional cables.
•
When you use the digital operator for the Σ-I series (model: JUSP-OP02A-1).
Personal
computer

Digital operator
Host controller
I/O signal cable

Connection cable
for digital operator
Connection cable
for personal computer
YASKAWA
SERVOPACK
SGDM-
200V
L1
L2
L3
U
V
W
L1C
L2
B1
B2
B3
3
1
2
C
N
3
C
N
1
C
N
2
2
MODE/SET DATA/
CHARGE
POWER
CN3
CN1


CN5
CN8

Analog monitor cable

Battery for absolute encoder
CN1
CN3
Operator
end
SERVOPACK
end
