5 Specifications and Dimensional Drawings of Cables and Peripheral Devices
5.8.14 DC Reactor for Harmonic Suppression
5-80
5.8.14 DC Reactor for Harmonic Suppression
(1) Specifications
DC reactor for harmonic suppression is handled by Yaskawa Controls Co., Ltd.
If necessary for harmonic suppression, connect a DC reactor to the SERVOPACK. Note that no terminal for con-
necting a DC reactor is provided to the 6.0 kW or more SERVOPACKs.
Refer to the table below for selecting a DC reactor according to the SERVOPACK capacity. For the connection
method, refer to 6.4.8 DC Reactor for Harmonic Suppression.

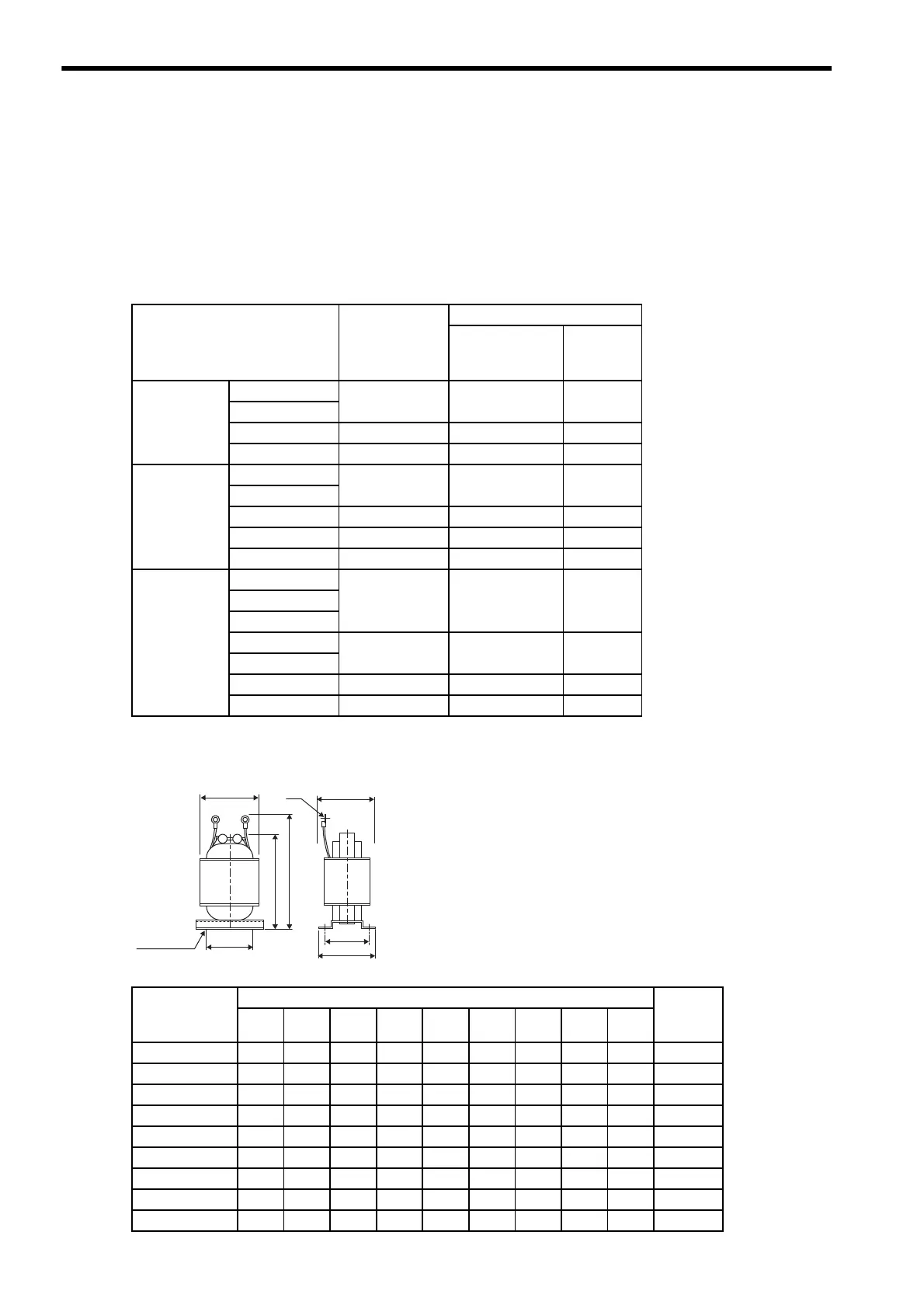

(2) Dimensional Drawings
Applicable
SERVOPACK Model
SGDM-
DC Reactor
Model
DC Reactor Specifications
Inductance
(mH)
Rated
Current
(A)
Single-phase
100 V
A3BD, A3BDA
−−−
A5BD, A5BDA
01BD, 01BDA
X5063 10.0 1.8
02BD, 02BDA
X5062 4.7 3.5
Single-phase
200 V
A3AD, A3ADA
−−−
A5AD, A5ADA
01AD, 01ADA
X5071 40.0 0.85
02AD, 02ADA
X5070 20.0 1.65
04AD, 04ADA
X5069 10.0 3.3
Three-phase
200 V
05AD, 05ADA
X5061 2.0 4.8
08AD, 08ADA
10AD, 10ADA
15AD, 15ADA
X5060 1.5 8.8
20AD, 20ADA
30AD, 30ADA
X5059 1.0 14.0
50ADA
X5068 0.47 26.8
DC Reactor
Model
Dimensions in mm Approx.
Mass
kg
ABCDEFGφH φI
X5059
50 74 125 140 35 45 60 5 5.3 1.1
X5060
40 59 105 125 45 60 65 4 4.3 1.0
X5061
35 52 80 95 35 45 50 4 4.3 0.5
X5062
40 59 100 120 40 50 55 4 4.3 0.9
X5063
35 52 90 105 35 45 50 4 4.3 0.6
X5068
50 74 125 155 53 66 75 5 6.4 1.9
X5069
40 59 105 125 45 60 65 4 4.3 1.0
X5070
40 59 100 120 35 45 50 4 4.3 0.8
X5071
35 52 80 95 30 40 45 4 4.3 0.5
4×φH
Notch
A
B
D
G
E
F
φI
C
Units: mm
