4 SERVOPACK Specifications and Dimensional Drawings

4.7.5 Three-phase 200 V: 2.0 kW/3.0 kW (20AD to 30AD, 20ADA to 30ADA)

4-20

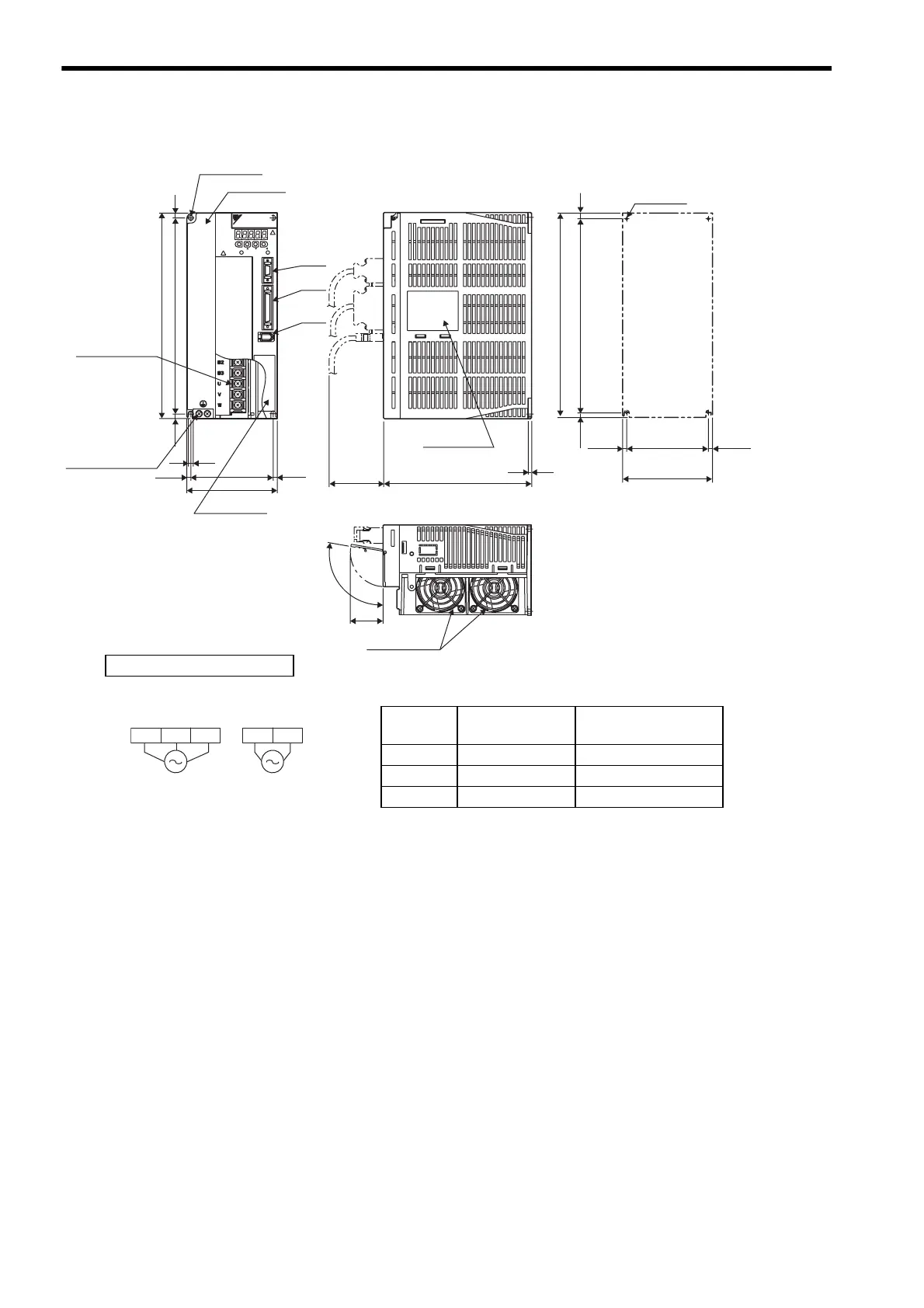

4.7.5 Three-phase 200 V: 2.0 kW/3.0 kW (20AD to 30AD, 20ADA to 30ADA)

External Terminal Connector

SERVOPACK Connector

Connector

Symbol

SERVOPACK

Connector Model

Manufacturer

CN1 10250-52A2JL Sumitomo 3M Co., Ltd.

CN2 53460-0611 Molex Japan Co., Ltd.

CN3 10214-52A2JL Sumitomo 3M Co., Ltd.

Cooling fan

Heat sink

2×φ6 holes

CN1

CN2

CN3

CN1

CN2

(100°)

CN3

YASKAWA SERVOPACK

SGDM-

14-pin terminal

M4 mounting

screw

250

238.5

100

110

(75)

180

(5.5)

(5)

(40)

250

238.5±0.5

100±0.5

110

(5.5)

(5)

MODE/SET

CHARGE POWER

DATA/

YASKAWA

Ground terminal

2×M4 screws

Nameplate

(Mounting pitch)

4×M5 tap

Mounting Hole Diagram

(Mounting pitch)

Units: mm

Approx. mass: 3.8 kg

L1C L2CL2 L3L1

200 VAC

50/60 Hz

Three-phase

200 VAC

50/60 Hz

Single-phase

Main circuit

power supply

Control power

supply
