10.4 Improved Functions

10-17

Upgraded Versions

10.4.3 Serial Number and Manufactured Data Reading Function

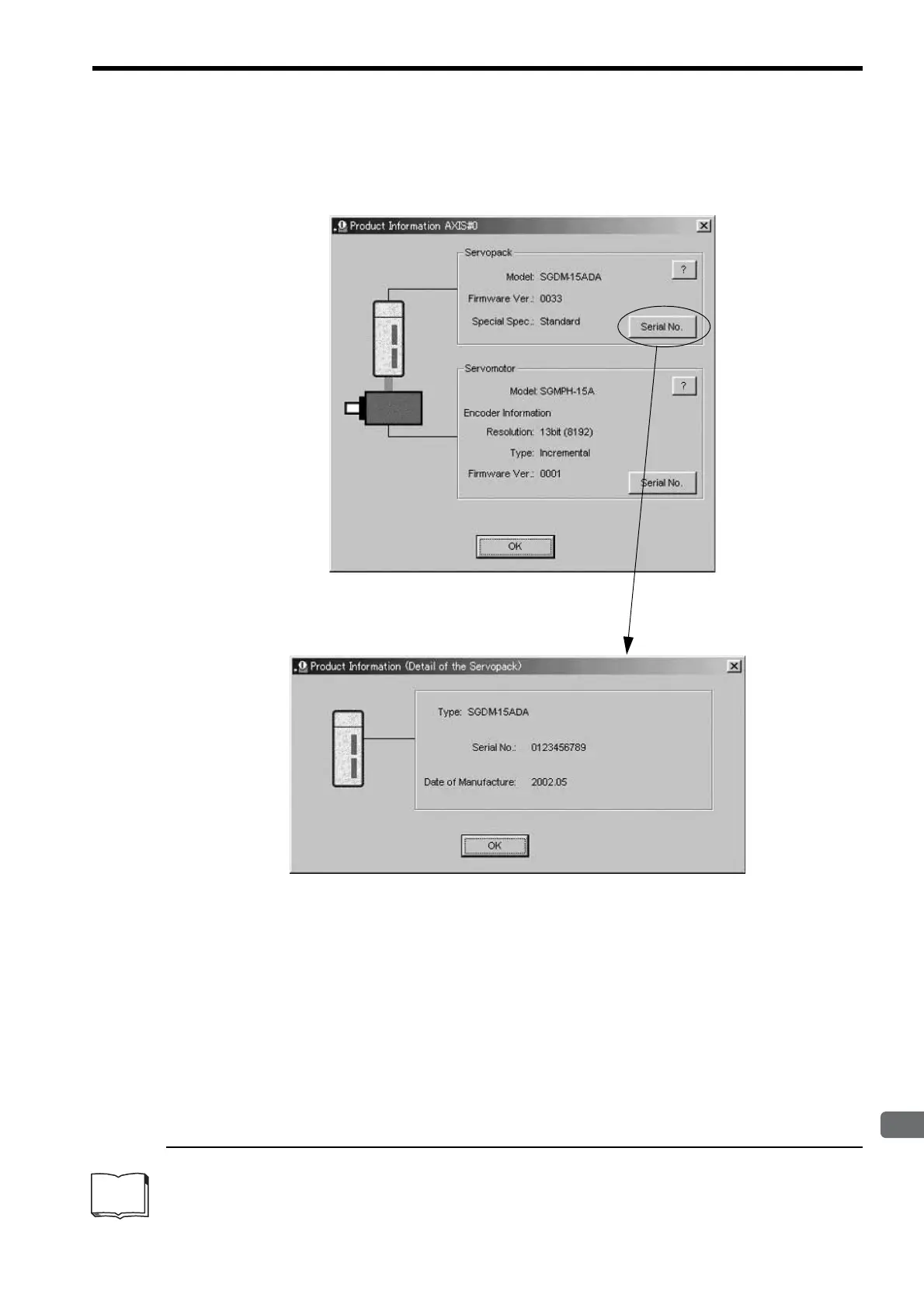

The serial number and manufactured data of SERVOPACK and servomotor can be read with the SERVOPACK

engineering tool SigmaWin+

SigmaWin+

SigmaWin+ is a Windows-compatible software tool used to set up and tune Yaskawa servo drives. SigmaWin+ can be

downloaded from the e-mechatronics site (http://www.e-mechatronics.com/en).
