5 Specifications and Dimensional Drawings of Cables and Peripheral Devices

5.8.7 Regenerative Resistor Unit

5-68

5.8.7 Regenerative Resistor Unit

(1) Models

The SERVOPACKs with a capacity of 6.0 kW or more do not have a built-in regenerative resistor.

The following regenerative resistor unit is required according to the SERVOPACK model.

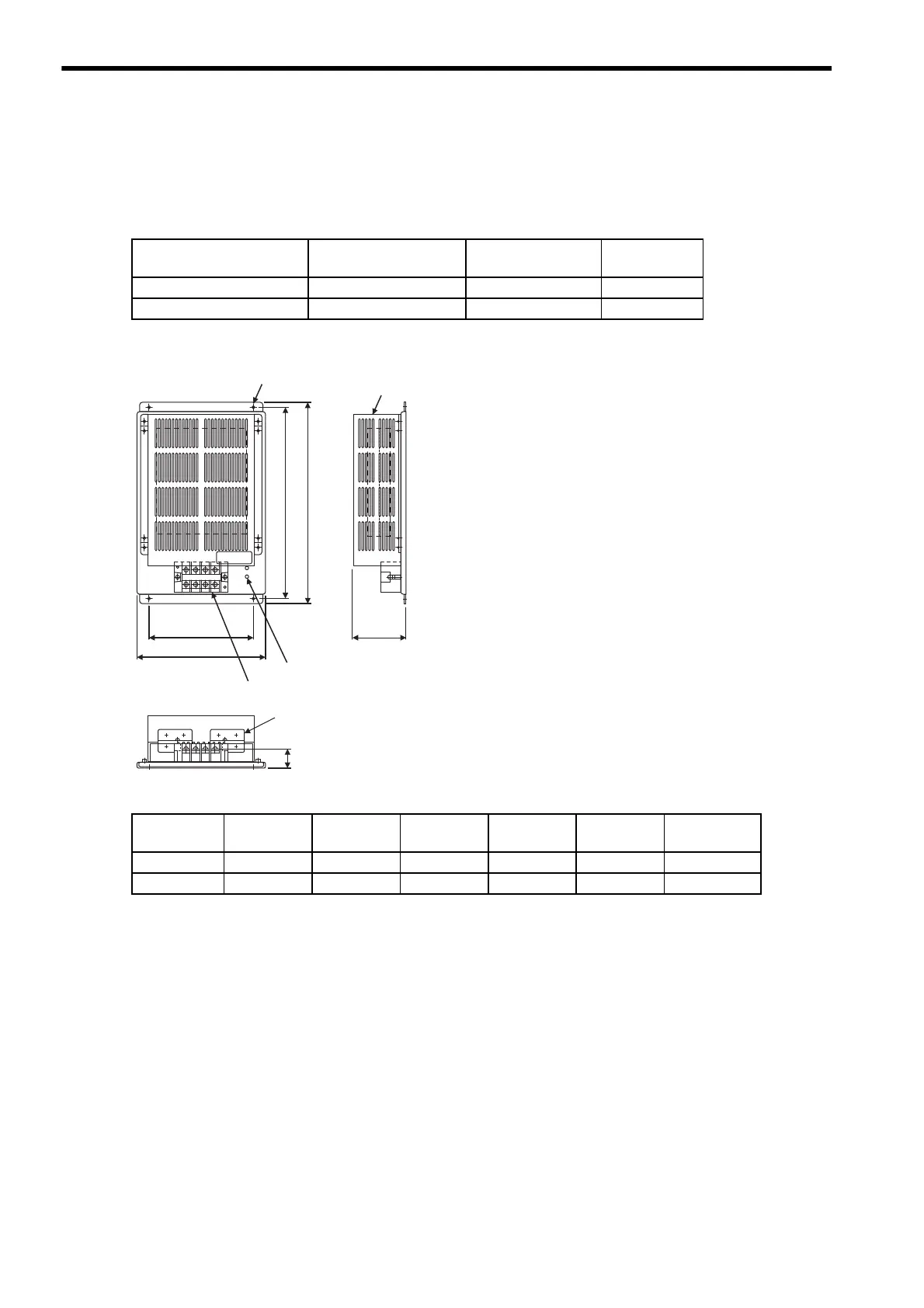

(2) Dimensional Drawings

SERVOPACK Model

Regenerative Resistor

Unit Model

Specifications

Allowable

Power Loss

SGDM-60ADA

JUSP-RA04 6.25 Ω, 880 W 180 W

SGDM-75ADA to -1EADA

JUSP-RA05 3.13 Ω, 1760 W 350 W

Units: mm

Model W H D M1 M2

Approx. Mass

JUSP-RA04

220 350 92 180 335 4

JUSP-RA05

300 350 95 250 335 7

Ground terminal (M4 screw)

4×φ6 Mounting holes

Protective cover

Cement resistor

External terminals (M5 screws)
