5.8 Peripheral Devices

5-81

Specifications and Dimensional Drawings of Cables and Peripheral Devices

5.8.15 Variable Resistor for Speed and Torque Setting

(1) Model: 25HP-10B

The multiturn type winding variable resistors with dial MD10-30B4 are manufactured by Sakae Tsushin Kogyo

Co., Ltd. Contact Yaskawa Controls Co., Ltd.

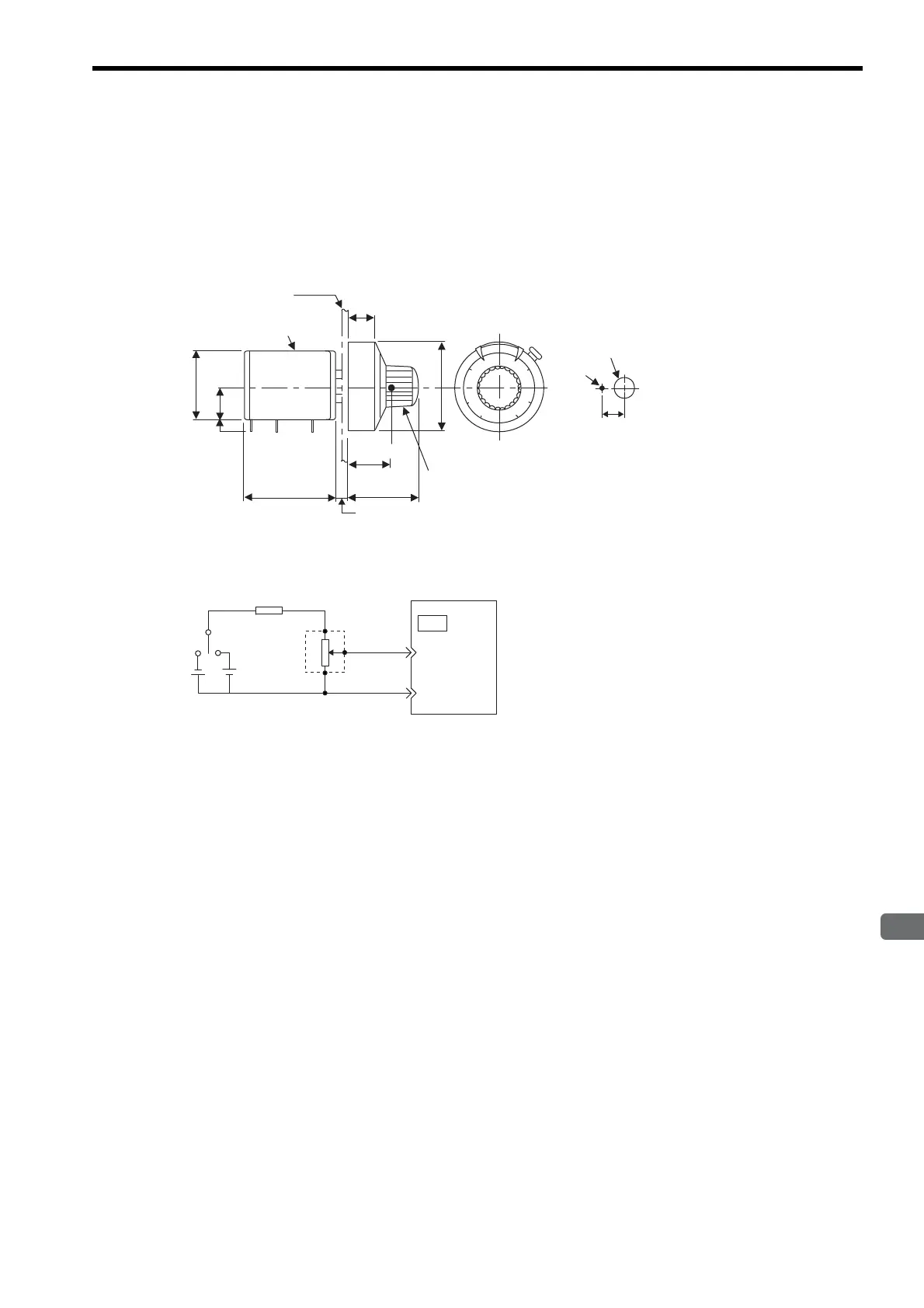

(2) Dimensional Drawings

(3) Example of Connection to an External Power Supply

MD multi-dial

25 HP Helicolumn

Panel driling diagram

Panel

11.5±1

37.5±1

24±1

14.5±1

φ25±1

φ31±1

21 max.

23 1

4.5

φ2.5

hole

φ7.5 hole

Units: mm

12V

1.8 kΩ (1/2 W) min.

25HP-10B

2 kΩ

SERVOPACK

(9)

(10)

CN1

V-REF

(T-REF)
