4.8 Dimensional Drawings of Rack-mounted SERVOPACK Model
4-25
4
SERVOPACK Specifications and Dimensional Drawings

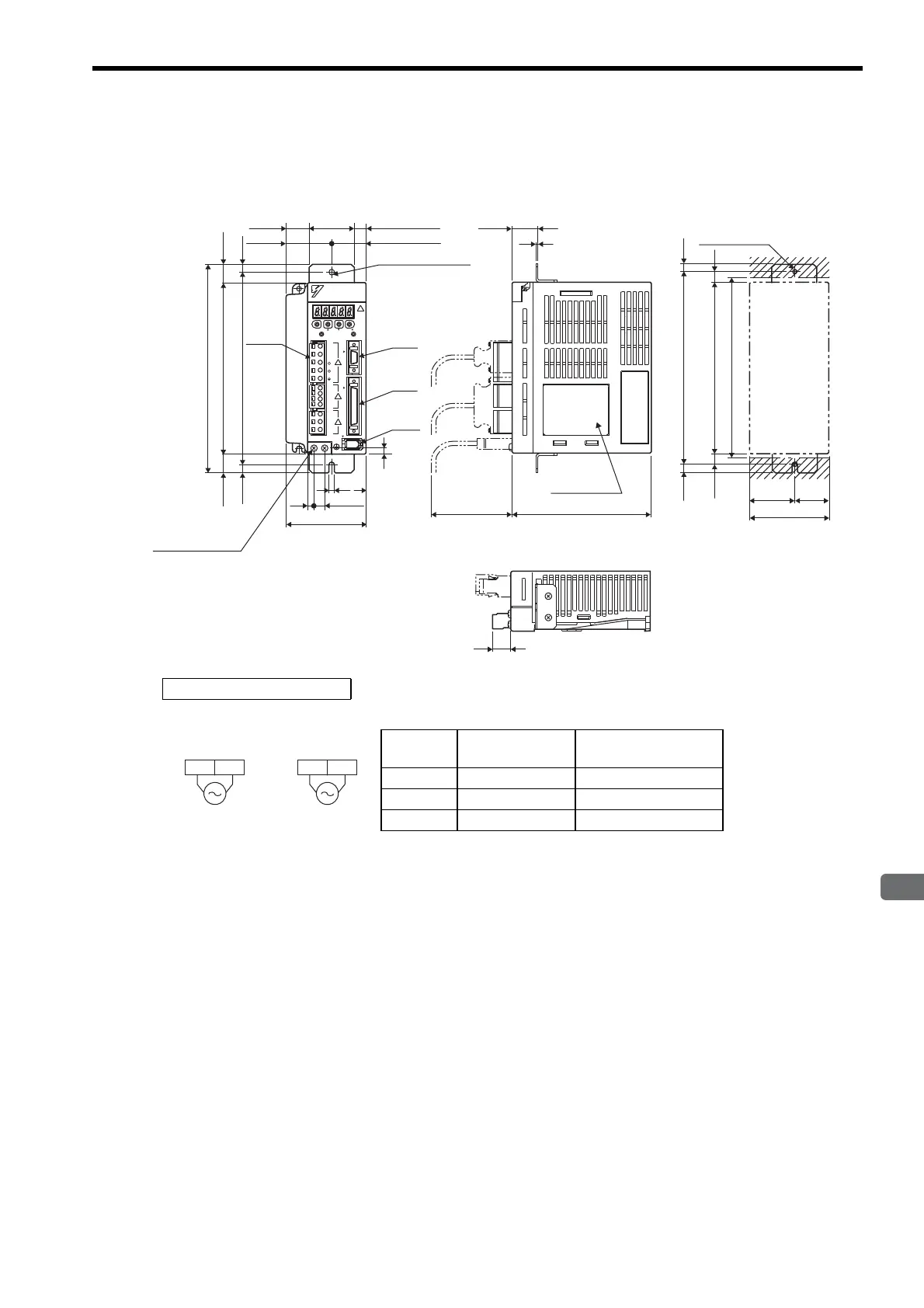

4.8.2 Single-phase 100 V: 200 W (02BD-R, 02BDA-R)
Single-phase 200 V: 400 W (04AD-R, 04ADA-R)
CN3
CN2
CN1
YASKAWA
YASKAWA
SERVOPACK
SGDM-
75
6
180
160
17.5
7.5
7.5
7.5
42.5
75
180±0.5
195
160
(10)
10
6
5
(7.5)
17.5
42
21.5
42.5
(32.5)
φ5 hole
Terminal
block
10
(11.5)
Min.166
(32.5)
CHANGE
MODE/SET
DATA/
L1
C
N
3
L2
L2C
B1
B2
U
V
W
L1C
POWER
+ 1
+ 2
C
N
1
C
N
2
130
Nameplate
2
17
24.5
(75)
Ground terminal
2×M4 screws
Mounting Hole Diagram
2×M4 screw
holes
(Mounting pitch)
Units: mm
Approx. mass: 1.3 kg
External Terminal Connector
SERVOPACK Connector
Connector
Symbol
SERVOPACK
Connector Model
Manufacturer
CN1 10250-52A2JL Sumitomo 3M Co., Ltd.
CN2 53460-0611 Molex Japan Co., Ltd.
CN3 10214-52A2JL Sumitomo 3M Co., Ltd.
L1 L2
Main circuit
power supply
Control power
supply
Single-phase
100/200 VAC
50/60 Hz
L1C L2C
Single-phase
100/200 VAC
50/60 Hz
