5.2 Servomotor Main Circuit Wire Size and Connectors
5-23
5
Specifications and Dimensional Drawings of Cables and Peripheral Devices
5.2.9 SGMGH Servomotor (1000 min
-1
) Connectors Conforming to IP67 and
European Safety Standards

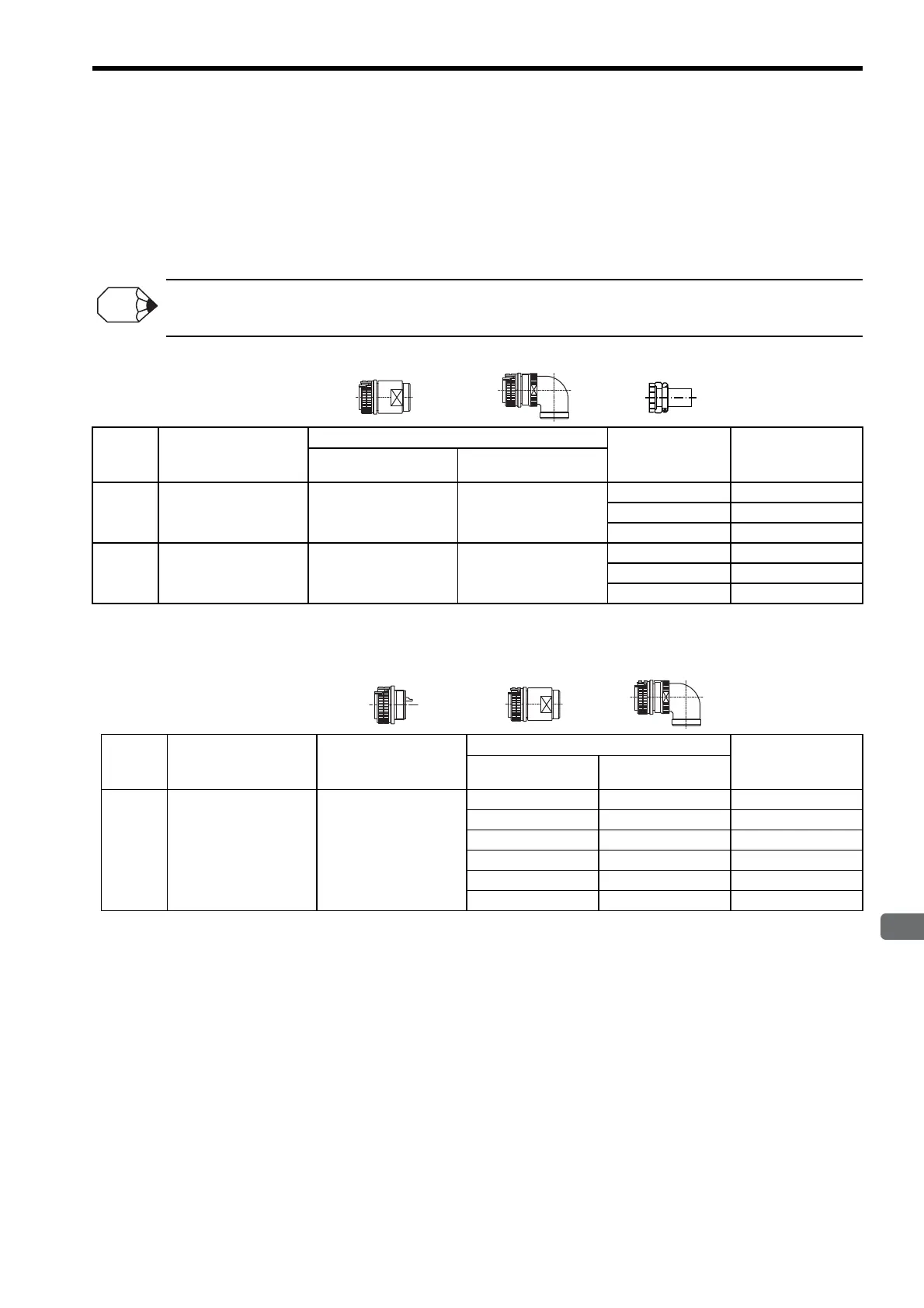

(1) Servomotors Without Holding Brakes
(a) For 0.3 to 3.0 kW Servomotors
Select a cable clamp in accordance with the applied cable diameter.
The straight plug type JA06A-22-22S-J1-EB and L-shaped plug type JA08A-22-22S-J1-EB conform to IP67 Protective
Construction Standard only.
(b) For 4.0 kW and 5.5 kW Servomotors
Select a conduit in accordance with the applied cable diameter.
Capacity
(kW)
Connector on
Servomotor
Plug
Cable Clamp
Applicable Cable
Range in mm
(For reference)
Straight L-shaped
0.3
0.6
0.9
CE05-2A18-10PD-B
CE05-6A18-10SD-
B-BSS
CE05-8A18-10SD-
B-BAS
CE3057-10A-1 φ10.5 to φ14.1
CE3057-10A-2 φ 8.5 to φ11.0
CE3057-10A-3 φ 6.5 to φ 8.7
1.2
2.0
3.0
JL04HV-2E22-22PE-B
JL04V-6A22-22SE-EB
or
JA06A-22-22S-J1-EB
JL04V-8A22-22SE-EB
or
JA08A-22-22S-J1-EB
JL04-2022CK(09) φ 6.5 to φ 9.5
JL04-2022CK(12) φ 9.5 to φ13.0
JL04-2022CK(14) φ12.9 to φ15.9
Capacity
(kW)
Connector on
Servomotor
Plug
Conduit Applicable Cable
Range in mm
(For reference)
Straight L-shaped
4.0
5.5
JL04V-2E32-17PE-B JL04V-6A32-17SE
ACS-16RL-MS32F ACA-16RL-MS32F φ12.0 to φ16.0
ACS-20RL-MS32F ACA-20RL-MS32F φ16.0 to φ20.0
ACS-24RL-MS32F ACA-24RL-MS32F φ20.0 to φ24.0
ACS-28RL-MS32F ACA-28RL-MS32F φ24.0 to φ28.0
ACS-32RL-MS32F ACA-32RL-MS32F φ28.0 to φ32.0
ACS-36RL-MS32F ACA-36RL-MS32F φ32.0 to φ36.0
To Next Page
