5.8 Peripheral Devices

5-79

Specifications and Dimensional Drawings of Cables and Peripheral Devices

5.8.13 Surge Absorber (for lightning surge)

(1) Model: RxCxM-601BQZ-4 and RxCxM-601BUZ-4 (Sold as Surge Protector)

Manufactured by Okaya Electric Industries Co., Ltd.

The surge absorber absorbs lightning surge and prevents faulty operation in or damage to electronic circuits.

Recommended surge absorbers are listed below.

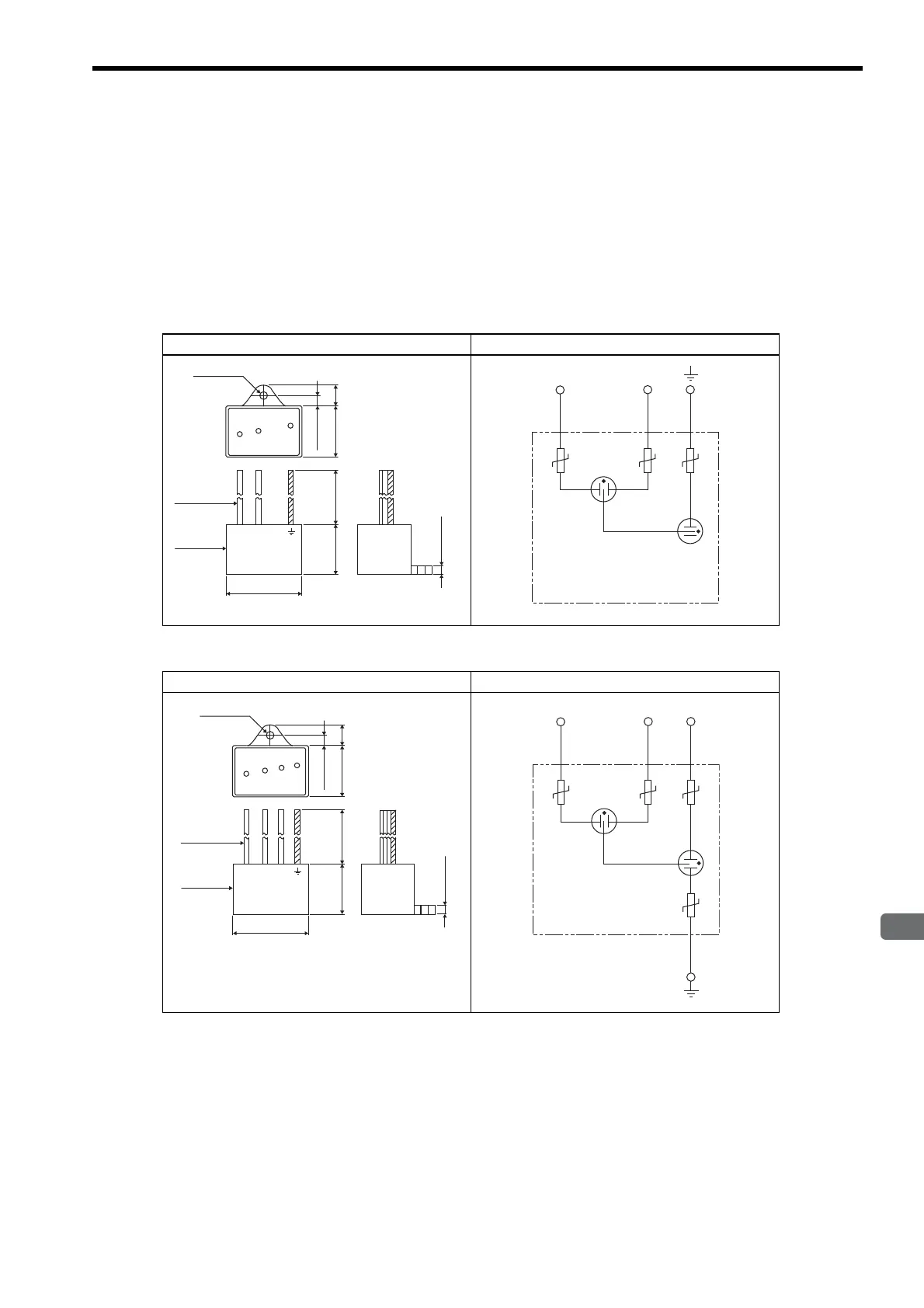

(2) Dimensional Drawings

(a) RxCxM-601BQZ-4

(b) R

xCxM-601BUZ-4

Dimensional Drawings Internal Connection Diagram

φ4.2±0.5

Case

Connection

cables

Units: mm

5.5

1.0

28.5

1.0

200-0

+30

4.5

0.5

φ4.2

0.5

Case

Connection

cables

200-0

+30

123

Units: mm

5.5

1.0

4.5

0.5

28.5

1.0

123
