5 Specifications and Dimensional Drawings of Cables and Peripheral Devices

5.8.12 Surge Absorber (for switching surge)

5-78

(2) Surge Absorber for Brake Power Supply

When using a servomotor with holding brake, install a surge absorber near the brake coil to prevent the power

supply noises. The surge absorber handled by Okaya Electric Industries Co., Ltd. is recommended.

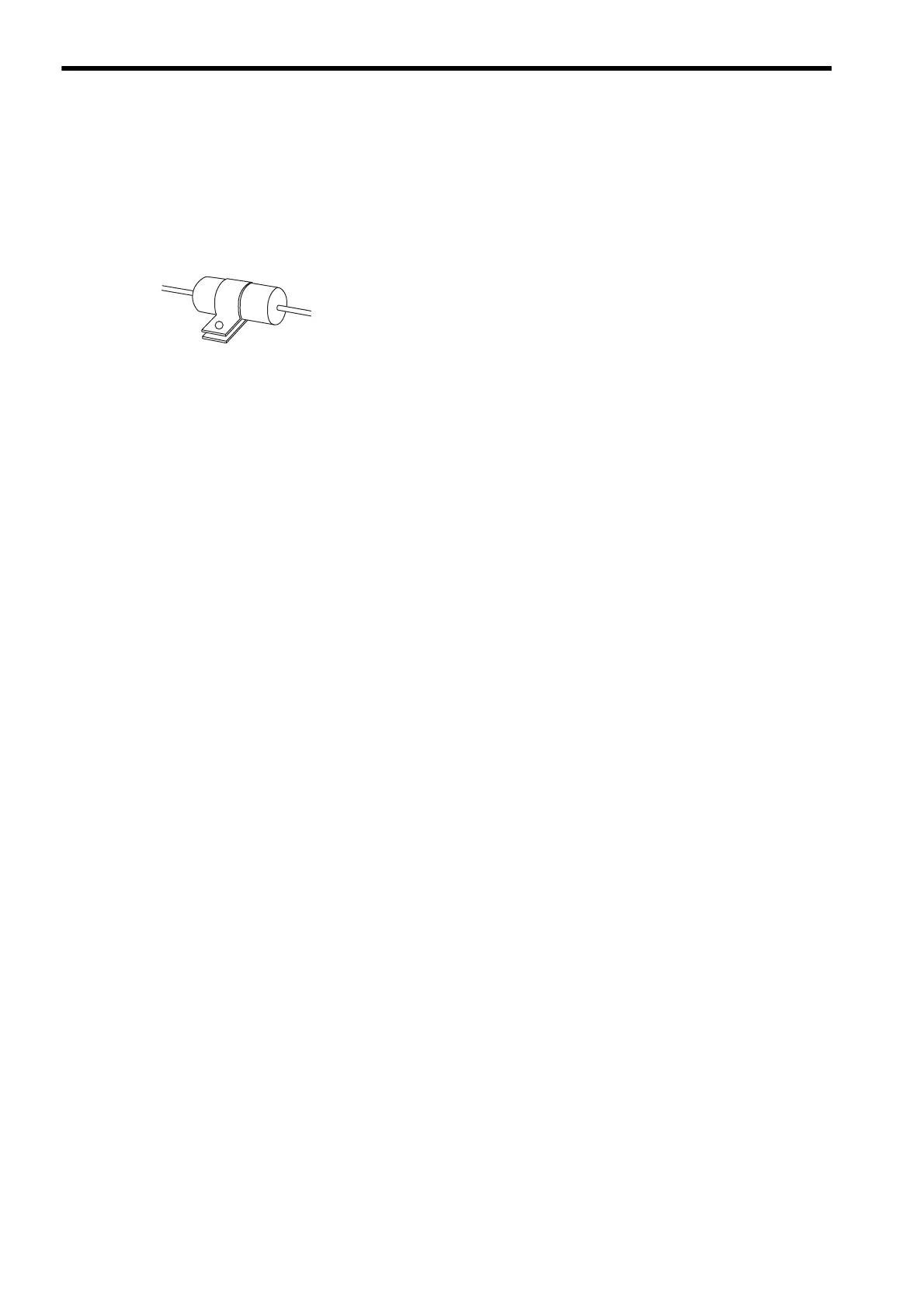

(a) Model: CR50500BL (Sold as Spark Quencher)

(b) Specifications

Power supply: 250 VAC

Capacitance: 0.5 μF ± 20%

Resistance: 50 Ω(1/2 W) ± 30%
