9 Adjustments

9-24

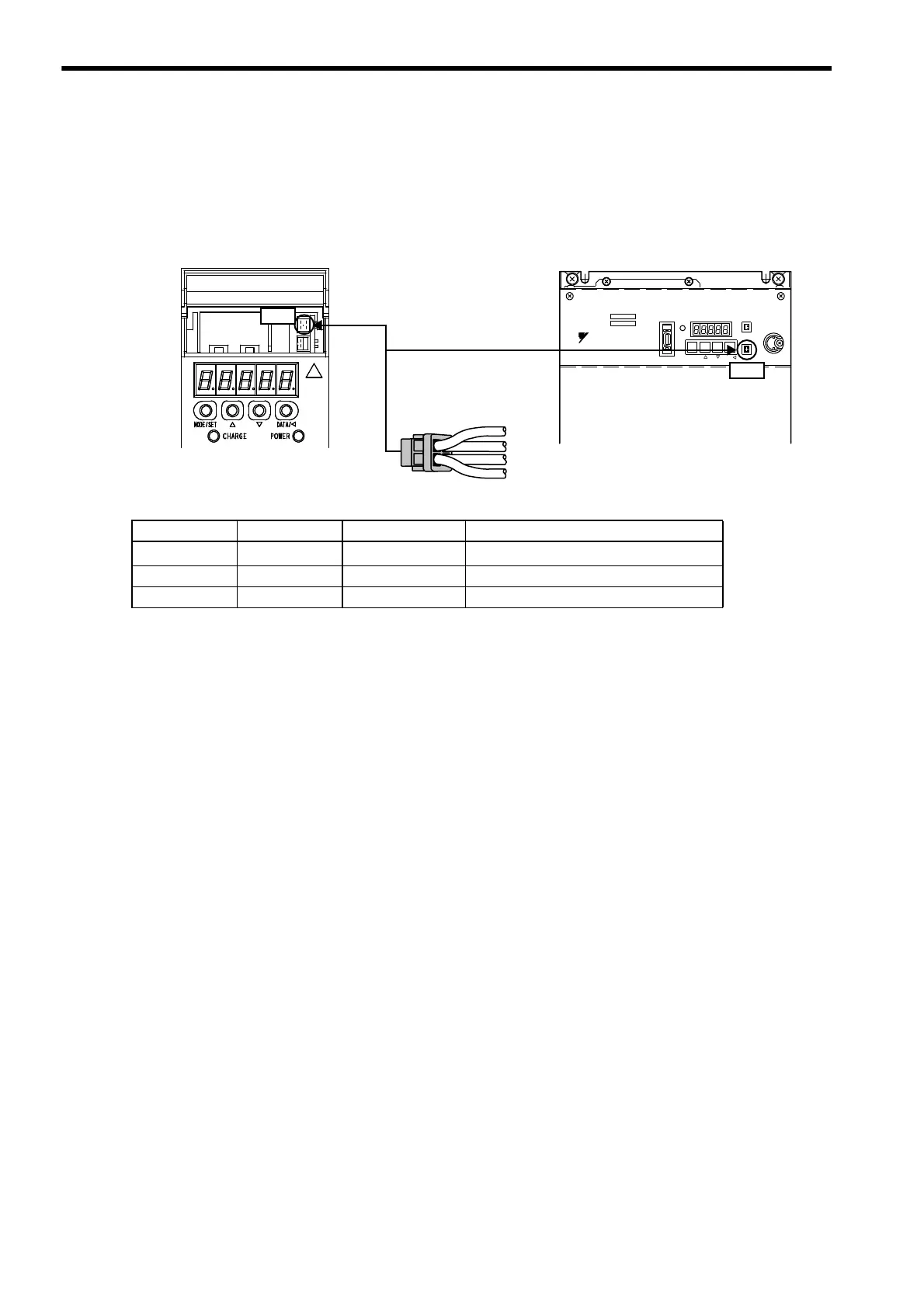

9.5 Analog Monitor

Signals for analog voltage references can be monitored.

To monitor analog signals, connect the analog monitor cable (JZSP-CA01 or DE9404559) to the connector CN5.

The analog monitor signals can be selected by setting parameters Pn003.0 and Pn003.1.

Pin Number Line Color Signal Name Monitoring Item with Factory Setting

1Red

Analog monitor 2

Motor speed: 1 V/1000 min

-1

2White

Analog monitor 1 Torque reference: 1 V/100% rated torque

3, 4 Black (2 lines)

GND (0 V) −

Cable Type:

JZSP-CA01

or DE9404559

Black

Red

White

CN5

MODE/SET DATA/

Ve r.

POWER

BATTERY

SGDM-

SERVOPARK 200V

YASKAWA

For 6.0 to 15.0 kW SERVOPACKFor 30W to 5.0 kW SERVOPACK

CN5
