7.2 Operation in Utility Function Mode (Fn)
7-13
7
Digital Operator/Panel Operator

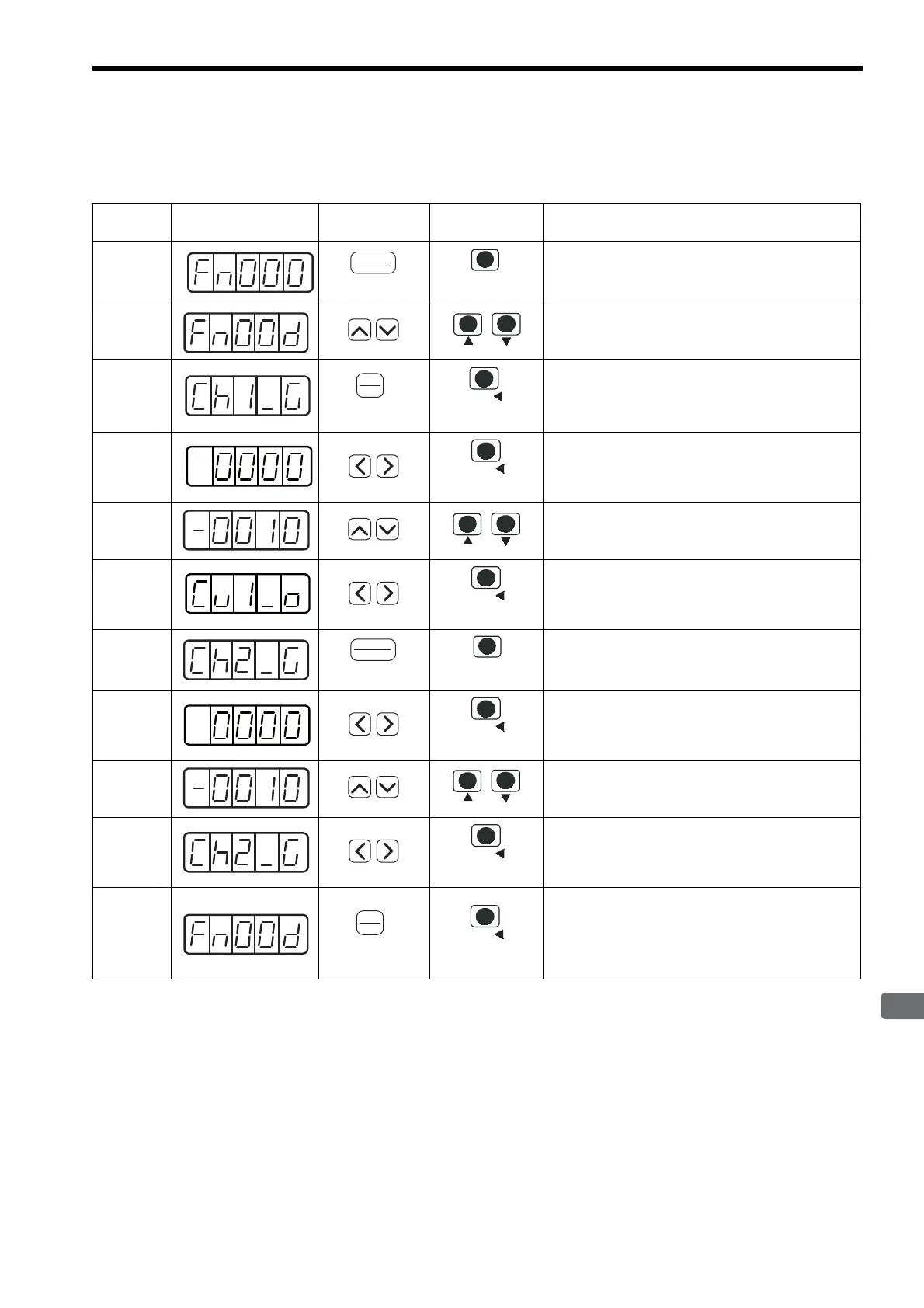

7.2.7 Manual Gain-adjustment of Analog Monitor Output (Fn00D)
The adjustment range of manual gain for the analog monitor output is up to 1.5 times of the gain.
Step
Display after
Operation
Digital Operator Panel Operator Description
1
Press the DSPL/SET or MODE/SET Key to select the
utility function mode.
2
Press the UP or DOWN Key to select Fn00D.
Note: The enabled digit blinks.
3
Press the DATA/ENTER Key once, or DATA/SHIFT
Key for more than one second, and the display shown
on the left appears.
4
Press the LEFT or RIGHT or DATA/SHIFT Key for
less than one second to display the gain coefficient of
analog monitor.
5
Press the UP or DOWN Key to adjust the gain coeffi-
cient of analog monitor.
6
Press the LEFT or RIGHT or DATA/SHIFT Key for
less than one second.
The display shown on the left appears.
7
Press the DSPL/SET or MODE/SET Key.
The display shown on the left appears.
8
Press the LEFT or RIGHT or DATA/SHIFT Key for
less than one second to display the gain coefficient of
analog monitor.
9
Press the UP or DOWN Key to adjust the gain coeffi-
cient of analog monitor.
10
Press the LEFT or RIGHT Key or DATA/SHIFT Key
for less than one second.
The display shown on the left appears.
11
When the gain coefficient of analog monitor adjust-
ment completes, press the DATA/ENTER Key once,
or DATA/SHIFT Key for more than one second.
The display returns to the utility function mode dis-
play Fn00D.
DATA
ENTER
(DATA/ENTER Key)
DATA
(DATA/SHIFT Key)
(Press at least 1 s.)
DATA
(DATA/SHIFT Key)
(Press less than 1 s.)
DATA
(DATA/SHIFT Key)
(Press less than 1 s.)
DATA
(DATA/SHIFT Key)
(Press less than 1 s.)
DATA
(DATA/SHIFT Key)
(Press less than 1 s.)
DATA
ENTER
(DATA/ENTER Key)
DATA
(DATA/SHIFT Key)
(Press at least 1 s.)
