YASKAWA Sigma II Series User Manual

8 Operation
8.8.1 Setting Parameters
8-66

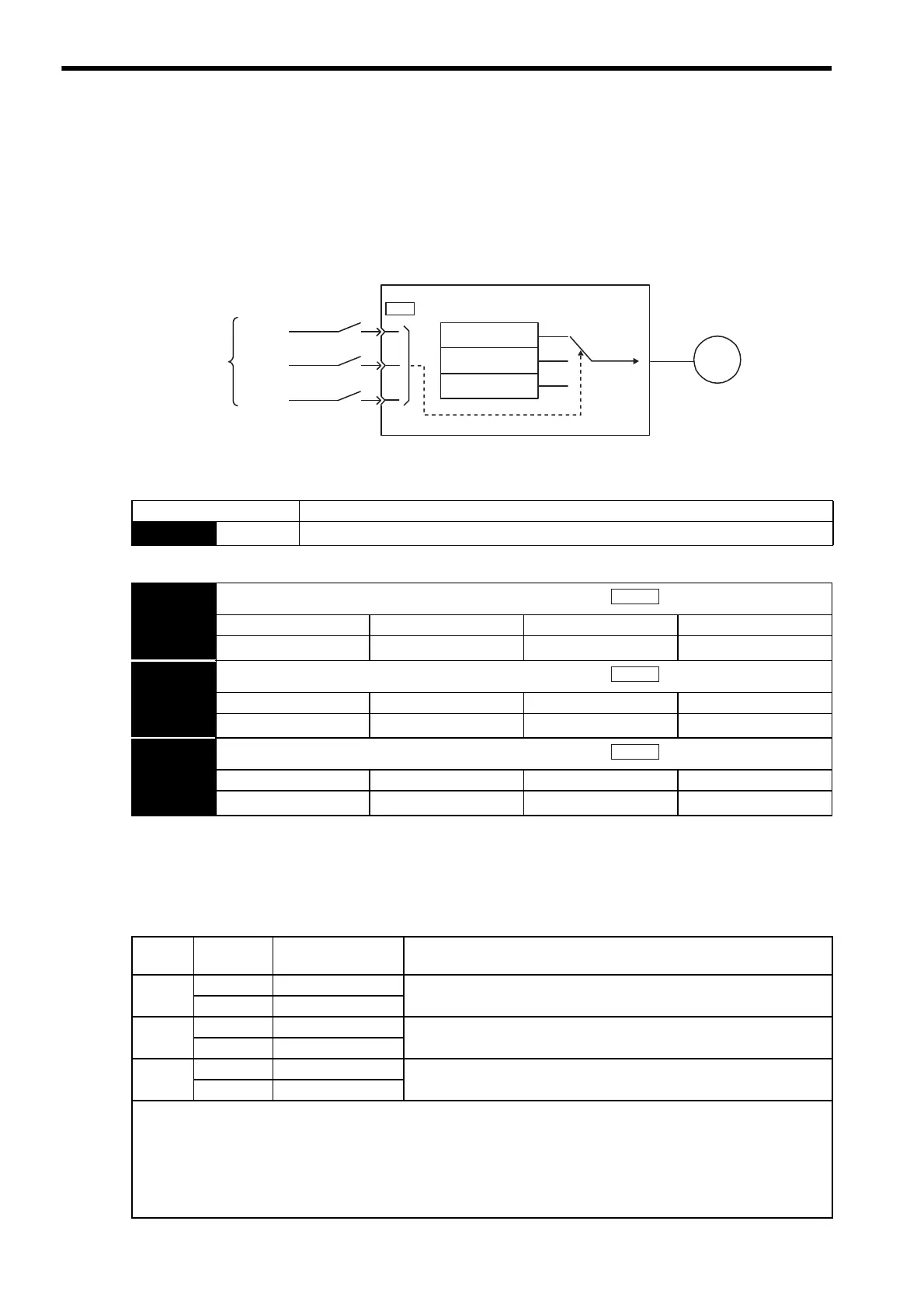

8.8 Operating Using Speed Control with an Internally Set Speed
• Internally Set Speed Selection
This function allows speed control operation by externally selecting an input signal from among three servo-
motor speed settings made in advance with parameters in the SERVOPACK. The speed control operations
within the three settings are valid. There is no need for an external speed or pulse generator.
8.8.1 Setting Parameters
Note: The maximum speed of servomotor is used whenever a speed settings for the Pn301 to Pn303
exceed the maximum speed.
8.8.2 Input Signal Settings
The following input signals are used to switch the operating speed.
SERVOPACK
41
45
46
Pn301SPEED1
Pn302SPEED2
Pn303SPEED3
Internally set speed
parameters
Speed
reference
Servomotor
M
Contact inputs
/
P-CON (/SPD-D)
/
P-CL (/SPD-A)
/
N-CL (/SPD-B)
CN1
Parameter Meaning
Pn000
n.

3

Control mode selection: Internally set speed control (contact reference)
Pn301 Internal Set Speed 1
Setting Range Setting Unit Factory Setting Setting Validation
0 to 10000
1 min
-1
100 Immediately
Pn302 Internal Set Speed 2
Setting Range Setting Unit Factory Setting Setting Validation
0 to 10000
1 min
-1
200 Immediately
Pn303 Internal Set Speed 3
Setting Range Setting Unit Factory Setting Setting Validation
0 to 10000
1 min
-1
300 Immediately
Speed
Speed
Speed
Type Signal
Name
Connector Pin
Number
Meaning
Input /P-CON CN1-41 Switches the servomotor rotation direction.
(/SPD-D) Must be allocated
Input /P-CL CN1-45 Selects the internally set speed.
(/SPD-A) Must be allocated
Input /N-CL CN1-46 Selects the internally set speed.
(/SPD-B) Must be allocated
 Input Signal Selection
The following two types of operation can be performed using the internally set speeds:
• Operation with the /P-CON, /P-CL, and /N-CL input signals (pins allocated in factory setting)
• Operation with the /SPD-D, /SPD-A, and /SPD-B input signals
/SPD-D, /SPD-A, and /SPD-B input signals must be allocated with parameter Pn50C. Refer to 7.3.2 Input Circuit Signal
Allocation
.
