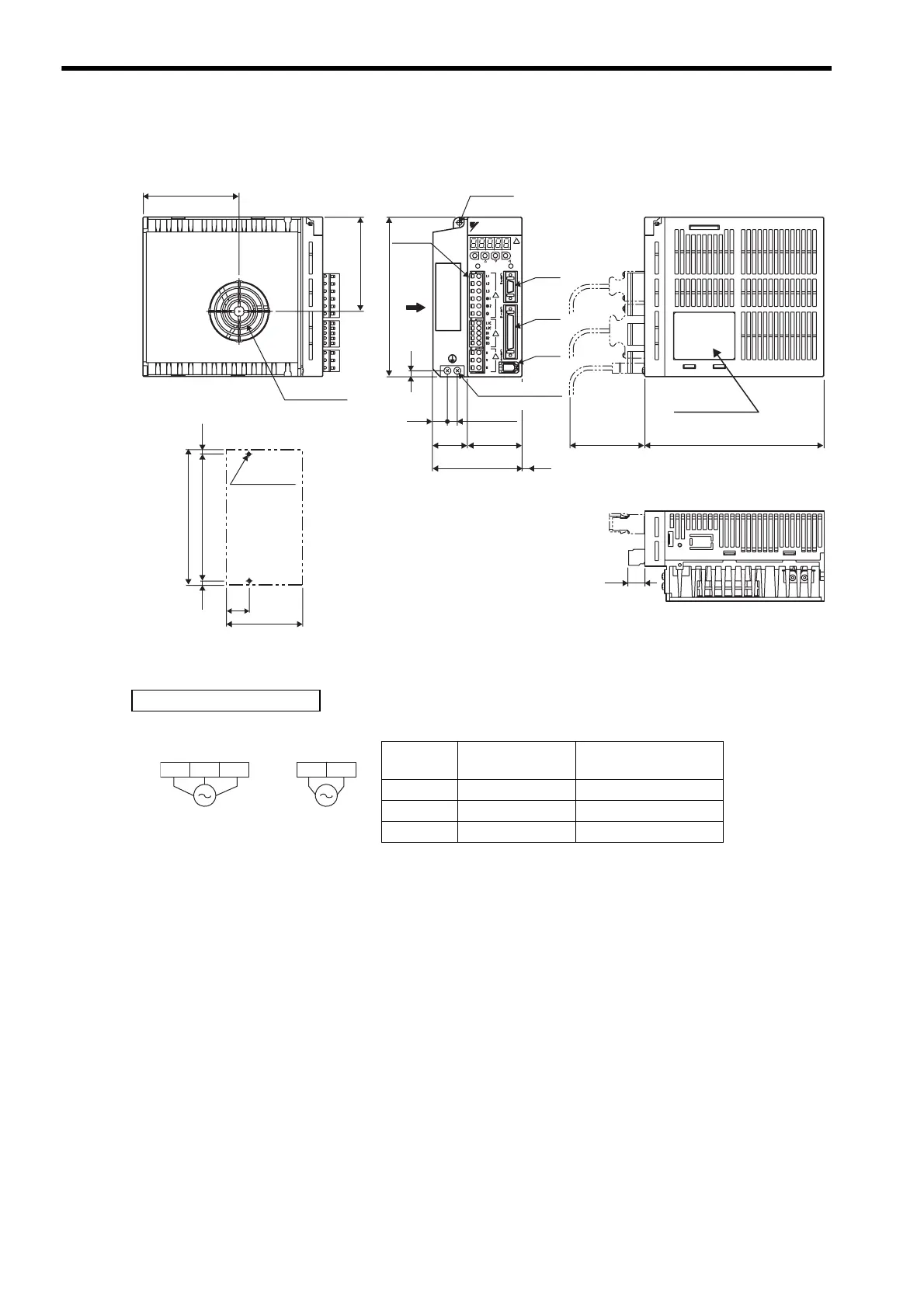

4 SERVOPACK Specifications and Dimensional Drawings

4.7.3 Three-phase 200 V: 500 W/750 W/1.0 kW (05AD to 10AD, 05ADA to 10ADA)

4-18

4.7.3 Three-phase 200 V: 500 W/750 W/1.0 kW (05AD to 10AD, 05ADA to 10ADA)

149.5±0.5

(5)

2×M4 screw

holes

(Mounting pitch)

Mounting Hole Diagram

CN3

160

5.5

96.2

CN2

CN1

YASKAWA SERVOPACK200V

SGDM-

MODE/SET

CHARGE POWER

DATA/

YASK AWA

94.4

160

Cooling fan

φ5 hole

Terminal

block

(75)

Ground terminal

2×M4 screws

Nameplate

Units: mm

Approx. mass: 1.7 kg

180

External Terminal Connector

SERVOPACK Connector

Connector

Symbol

SERVOPACK

Connector Model

Manufacturer

CN1 10250-52A2JL Sumitomo 3M Co., Ltd.

CN2 53460-0611 Molex Japan Co., Ltd.

CN3 10214-52A2JL Sumitomo 3M Co., Ltd.

Three-phase

200 VAC

50/60 Hz

Single-phase

200 VAC

50/60 Hz

L2 L3L1 L1C L2C

Main circuit

power supply

Control power

supply
